3. Check Ground Circuit

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Check continuity between display harness connector M82 terminals 22 (B), 24 (B) and ground.

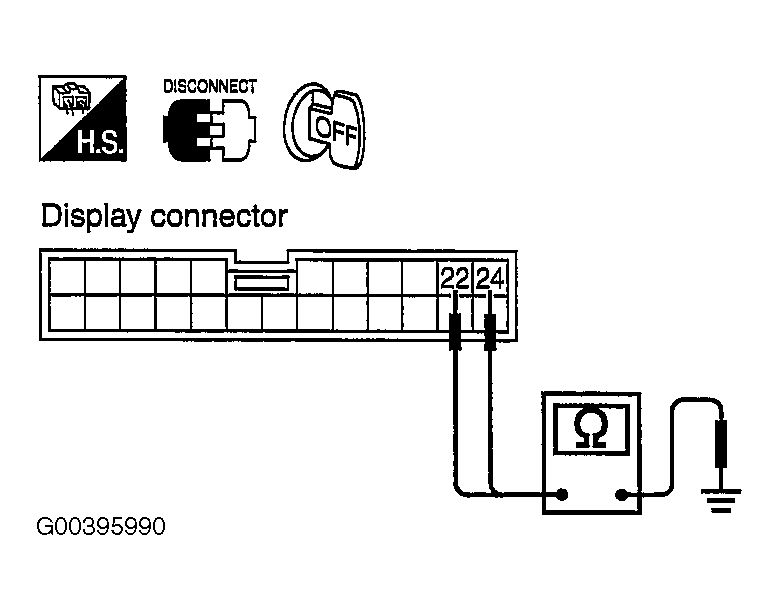

Fig 1: Checking Ground Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

Continuity should exist.

OK or NG

OK: Inspection end.
NG: Repair harness or connector.
