Diagnostic Procedure For Intake Sensor

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Intake sensor circuit is open or shorted. (24 or -24 is indicated on auto amp. as a result of conducting self-diagnosis STEP-2).

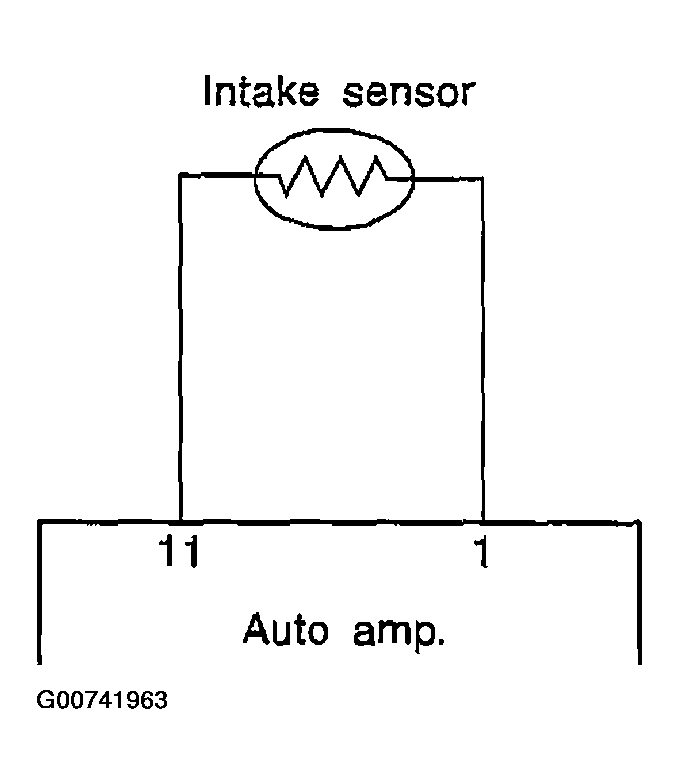

Fig 1: Displaying Diagnostic Procedure For Intake Sensor
G00741963Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Check Voltage Between Intake Sensor And Ground
    1. Disconnect intake sensor connector.
    2. Turn ignition switch ON.
    3. Check voltage between intake sensor harness connector M90 terminal 32 (G/OR) and ground.

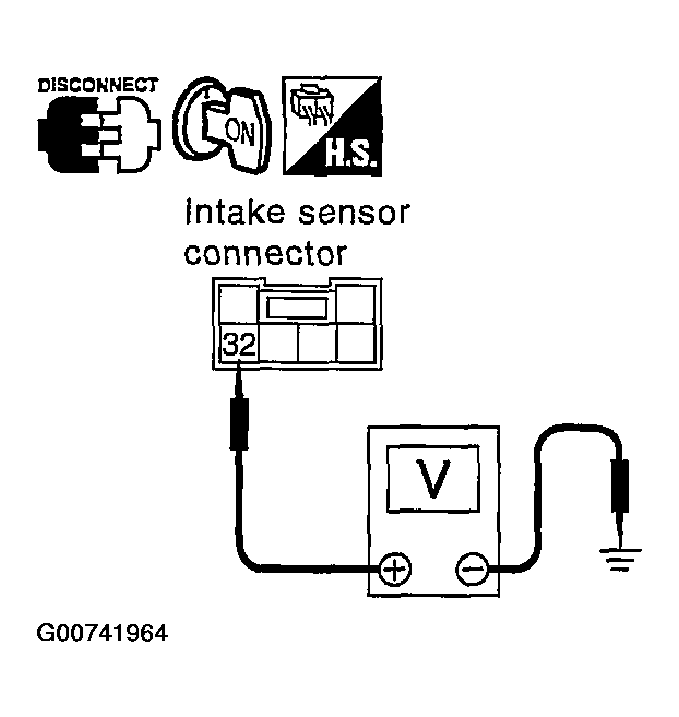

      Fig 2: Checking Intake Sensor-To-Ground Voltage
      G00741964Courtesy of NISSAN MOTOR CO., U.S.A.
      1. 32 - Ground : Approx. 5V

    OK or NG

    1. OK - GO TO  2.
    2. NG - GO TO  4.

  2. Check Circuit Continuity Between Intake Sensor And Auto Amp.
    1. Turn ignition switch OFF.
    2. Disconnect auto amp. connector.
    3. Check continuity between intake sensor harness connector M90 terminal 36 (R/Y) and auto amp. harness connector M119 terminal 11 (R/Y).

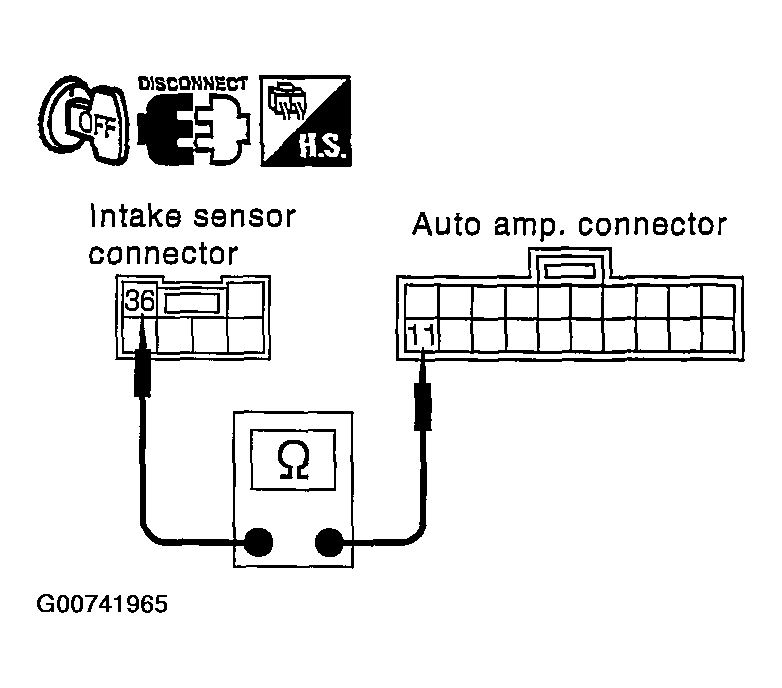

      Fig 3: Checking Intake Sensor-To-Auto Amp. Circuit Continuity
      G00741965Courtesy of NISSAN MOTOR CO., U.S.A.
      1. 36 - 11 : Continuity should exist  .

    OK or NG

    1. OK - GO TO  3.
    2. NG - Repair harness or connector.

  3. Check Intake Sensor

    Refer to INTAKE SENSOR .

    OK or NG

    1. OK -
      1. Replace auto amp.
      2. Go to self-diagnosis FUNCTION CONFIRMATION PROCEDURE  and perform self-diagnosis STEP-2. Confirm that code No. 20 is displayed.
    2. NG -
      1. Replace intake sensor.
      2. Go to self-diagnosis FUNCTION CONFIRMATION PROCEDURE  and perform self-diagnosis STEP-2. Confirm that code No. 20 is displayed.

  4. Check Circuit Continuity Between Intake Sensor And Auto Amp.
    1. Turn ignition switch OFF.
    2. Disconnect auto amp. connector.
    3. Check continuity between intake sensor harness connector M90 terminal 32 (G/OR) and auto amp. harness connector M119 terminal 1 (G/OR).

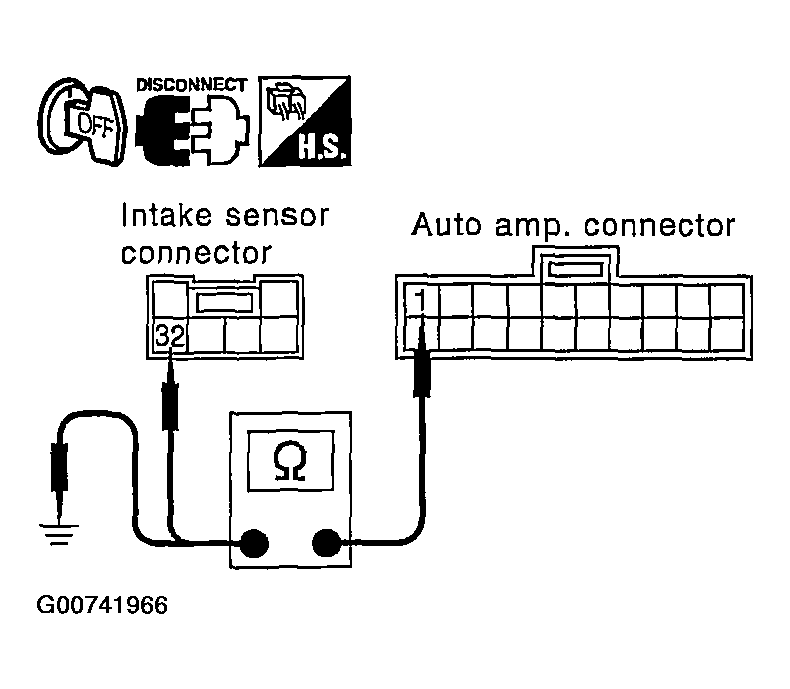

      Fig 4: Checking Intake Sensor-To-Auto Amp. Circuit Continuity
      G00741966Courtesy of NISSAN MOTOR CO., U.S.A.
      1. 32 - 1 : Continuity should exist  .
    4. Check continuity between auto amp. connector M119 terminal 1 (G/OR) and ground.
      1. 1 - Ground : Continuity should not exist  .

    OK or NG

    1. OK -
      1. 1. Replace auto amp.
      2. 2. Go to self-diagnosis FUNCTION CONFIRMATION PROCEDURE  and perform self-diagnosis STEP-2. Confirm that code No. 20 is displayed.
    2. NG - Repair harness or connector.
