Switches And Their Control Function

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

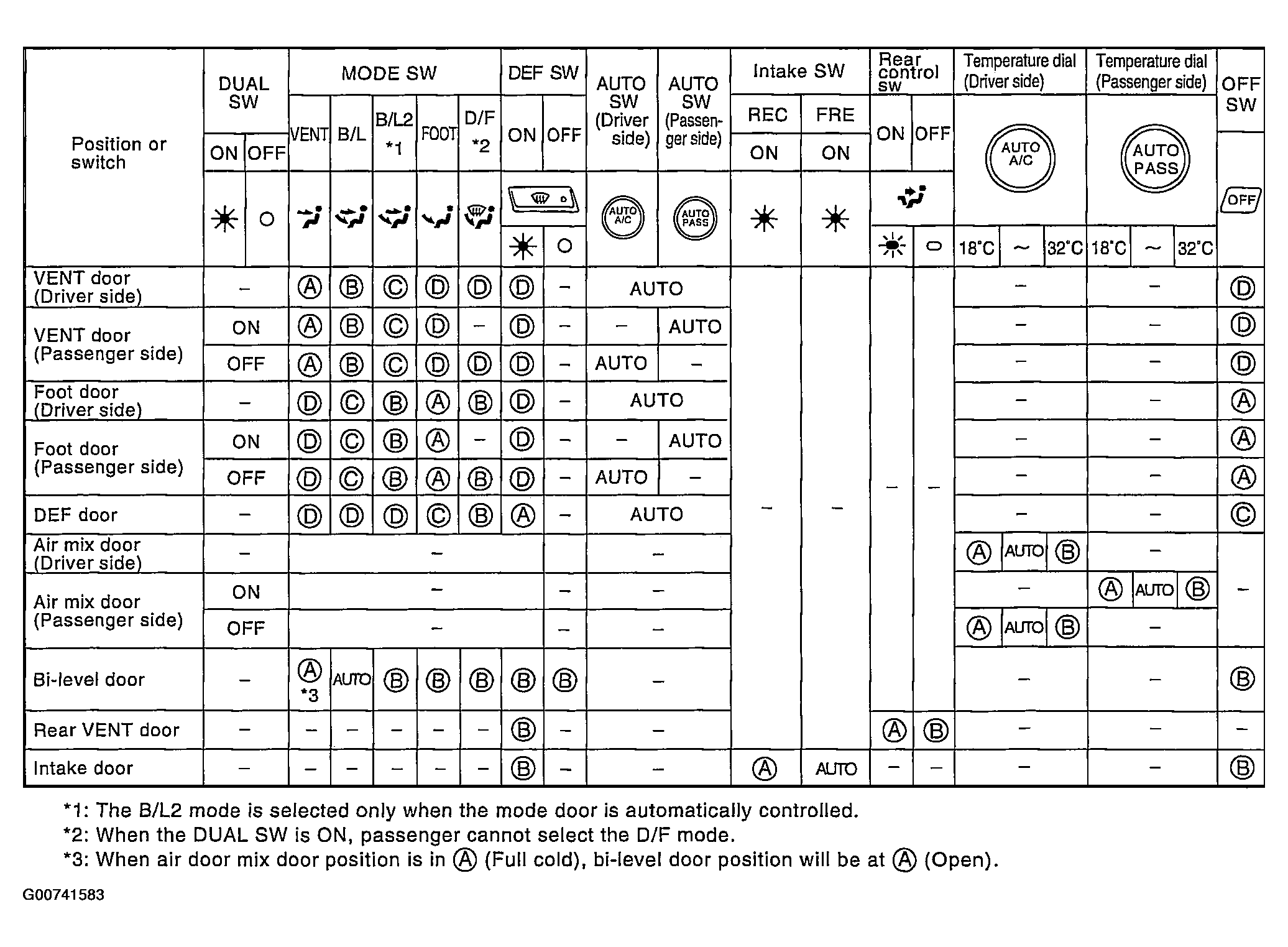

Fig 1: Describing System Switch Control Functions
G00741583Courtesy of NISSAN MOTOR CO., U.S.A.

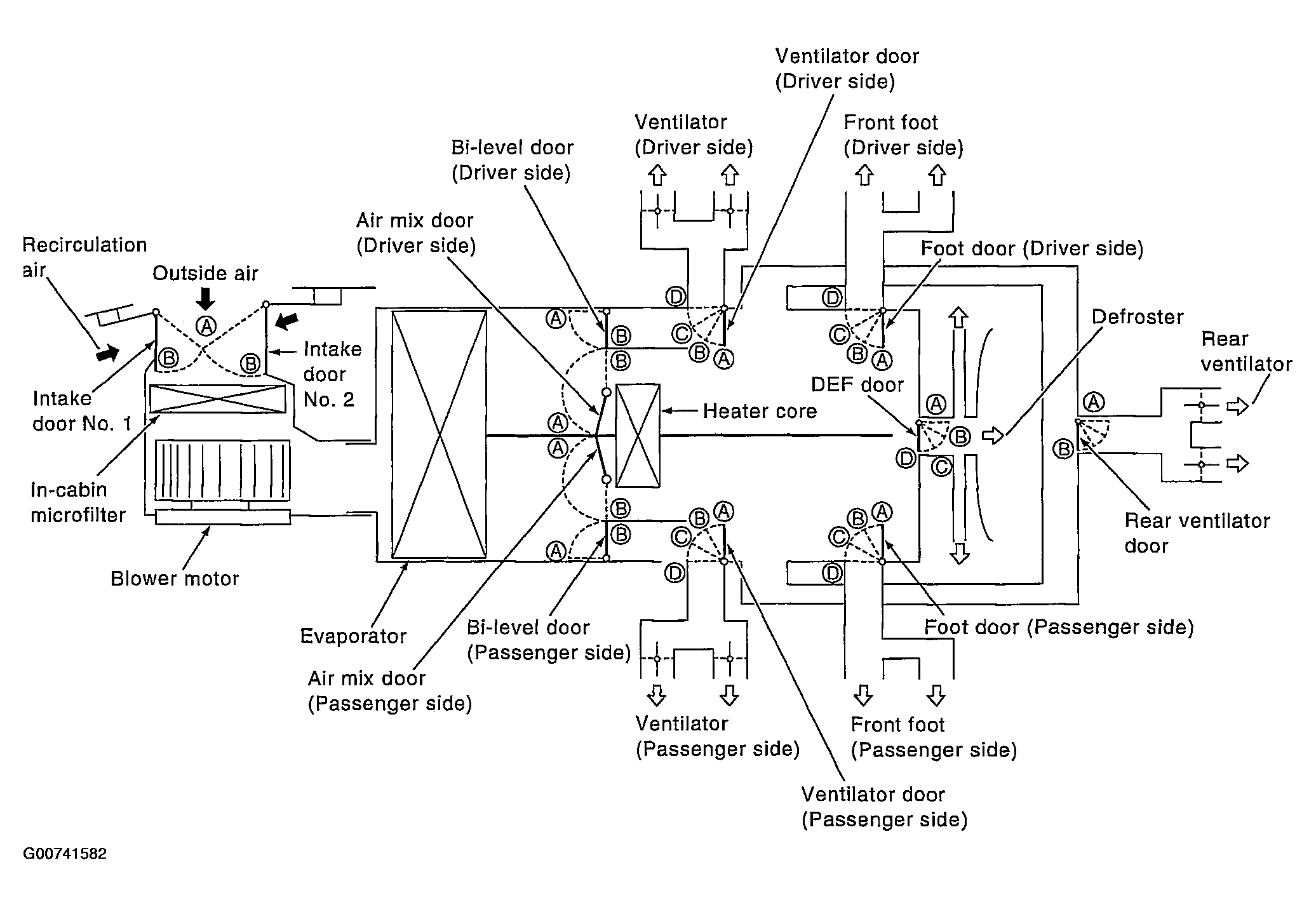

Fig 2: Identifying System Functions Based On Switch Positions
G00741582Courtesy of NISSAN MOTOR CO., U.S.A.
