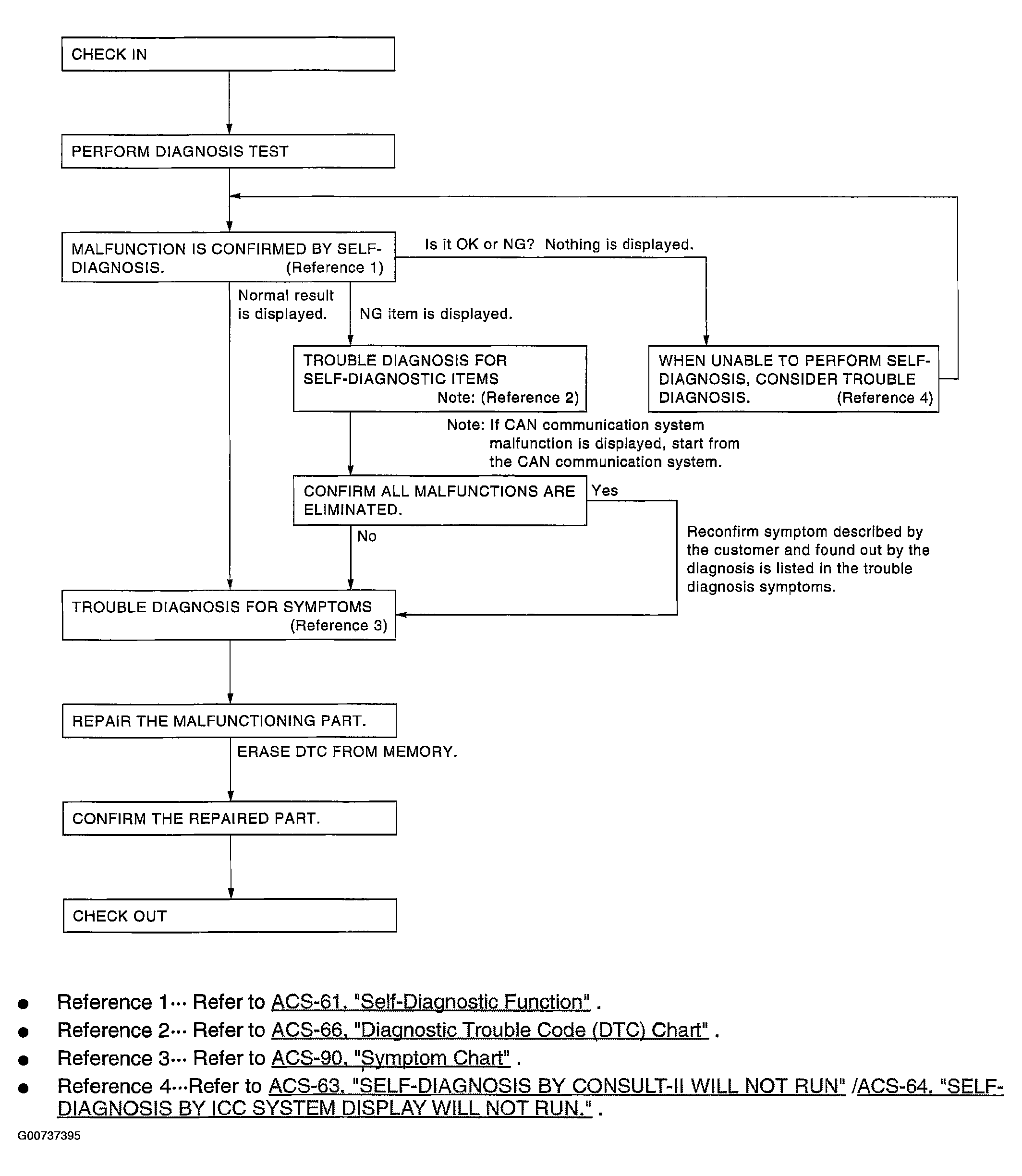

Work Flow
WARNING: This page is about a different car, the 2004 Infiniti Q45 and 2003 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
- Reference 1... Refer to SELF-DIAGNOSTIC FUNCTION .
- Reference 2... Refer to DIAGNOSTIC TROUBLE CODE (DTC) CHART .
- Reference 3... Refer to SYMPTOM CHART .
- Reference 4... Refer to SELF-DIAGNOSIS BY CONSULT-II WILL NOT RUN /SELF-DIAGNOSIS BY ICC SYSTEM WILL NOT RUN. .
