Without CONSULT-II: Notes

WARNING: This page is about a different car, the 2004 Infiniti Q45 and 2003 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Go to operation check after asking the customer for symptom information. Refer to ACTION TEST .
Stop the vehicle to start the self-diagnosis.
Turn ignition switch OFF.
Turn ignition switch ON, and within 5 to 10 seconds, press ACCELERATE/RESUME switch 5 times. Then press COAST/SET switch 5 times to start self-diagnosis.

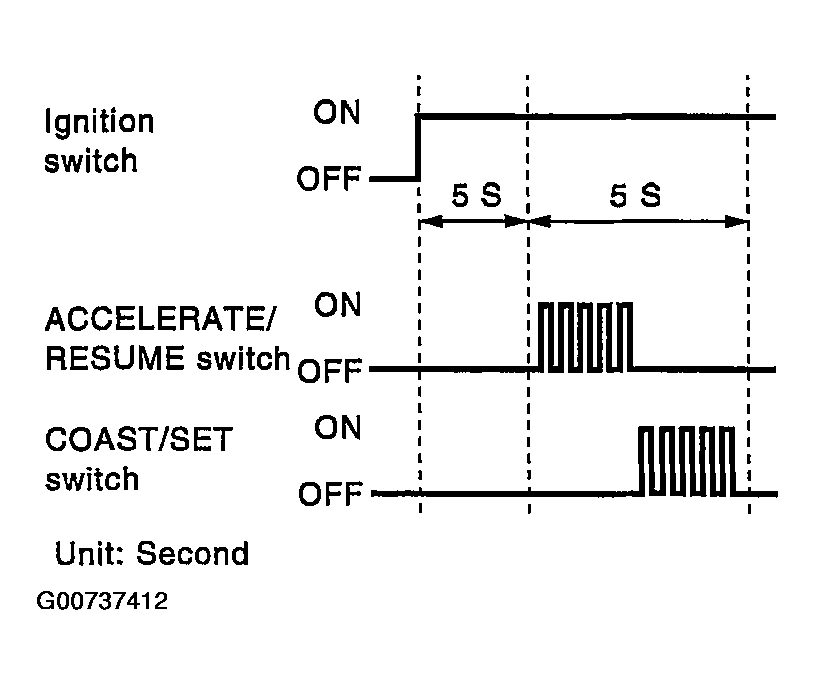

Fig 1: Identifying Self-Diagnosis Initialization Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not start the engine.
- Do not turn the ON/OFF switch ON.
- When operation above is not completed within 5 to 10 seconds, start again from above go to 3.
- If self-diagnosis mode cannot be start after several attempts, the ICC unit may have had malfunction. Repair or replace it. Refer to SELF-DIAGNOSIS BY ICC SYSTEM WILL NOT RUN. .
When self-diagnosis mode is started, DTCs are shown on set vehicle speed indicator.

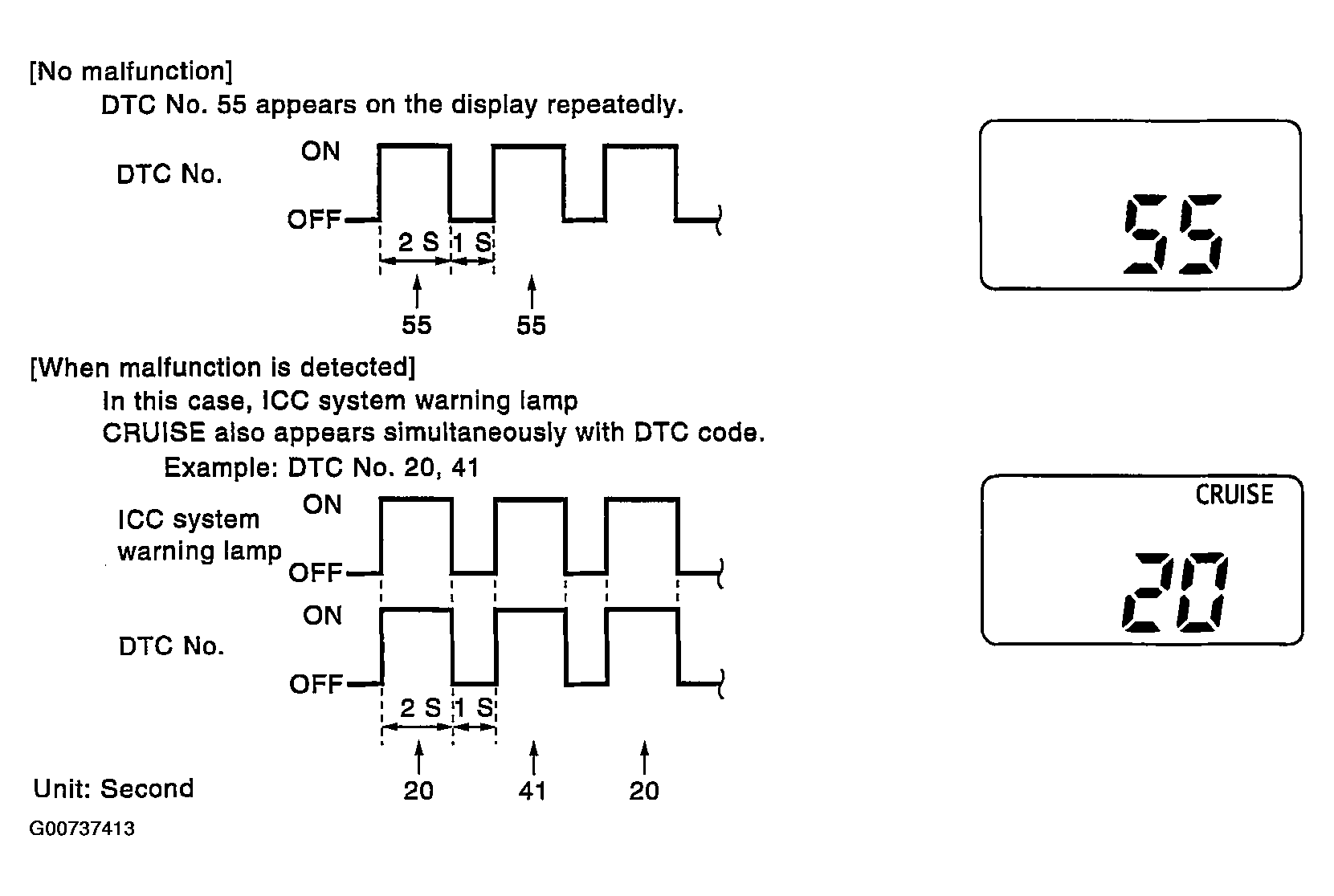

Fig 2: Displaying DTCs on Set Vehicle Speed Indicator
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- DTCs will disappear after 5 minutes.
- When more than one malfunctions are detected, a maximum of 3 code numbers can be stored; the latest malfunction will be displayed first.
Check DIAGNOSTIC TROUBLE CODE (DTC) CHART , and repair or replace if necessary.
After repair, erase DTCs stored in the ICC unit.
DTC 55 will be shown.
Turn ignition switch OFF to exit the diagnosis.
Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp does not illuminate.
