Aiming Adjustment: Notes

WARNING: This page is about a different car, the 2004 Infiniti Q45 and 2003 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Complete all necessary work for laser beam adjustment until the adjustment completes as shown in the procedure. If the procedure does not complete, the ICC system is inoperable.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER on the data link connector.

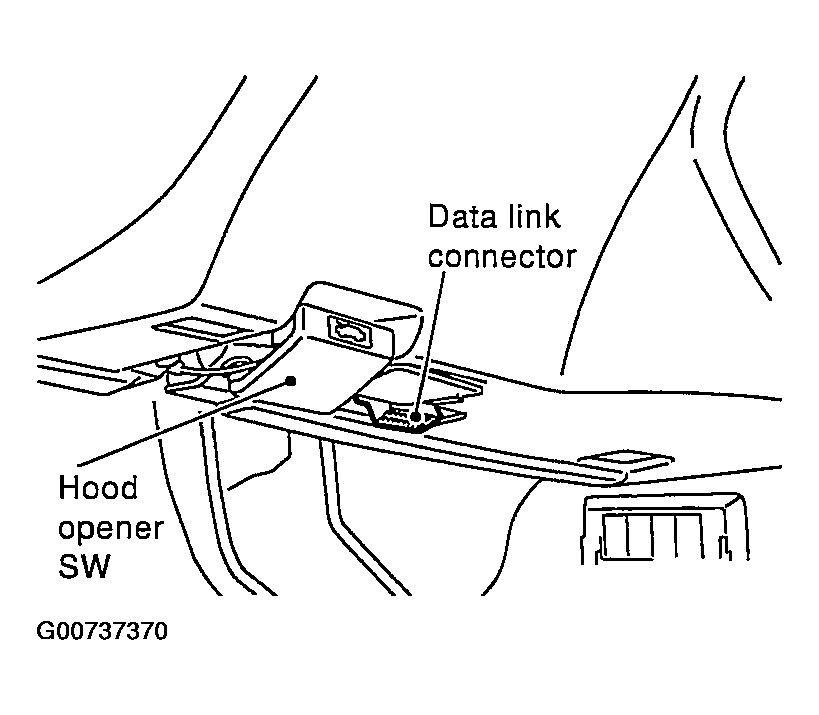

    Fig 1: Locating Data Link Connector
    G00737370Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start the engine, wait for at least 10 sec., and touch "START (NISSAN BASED VHCL)".

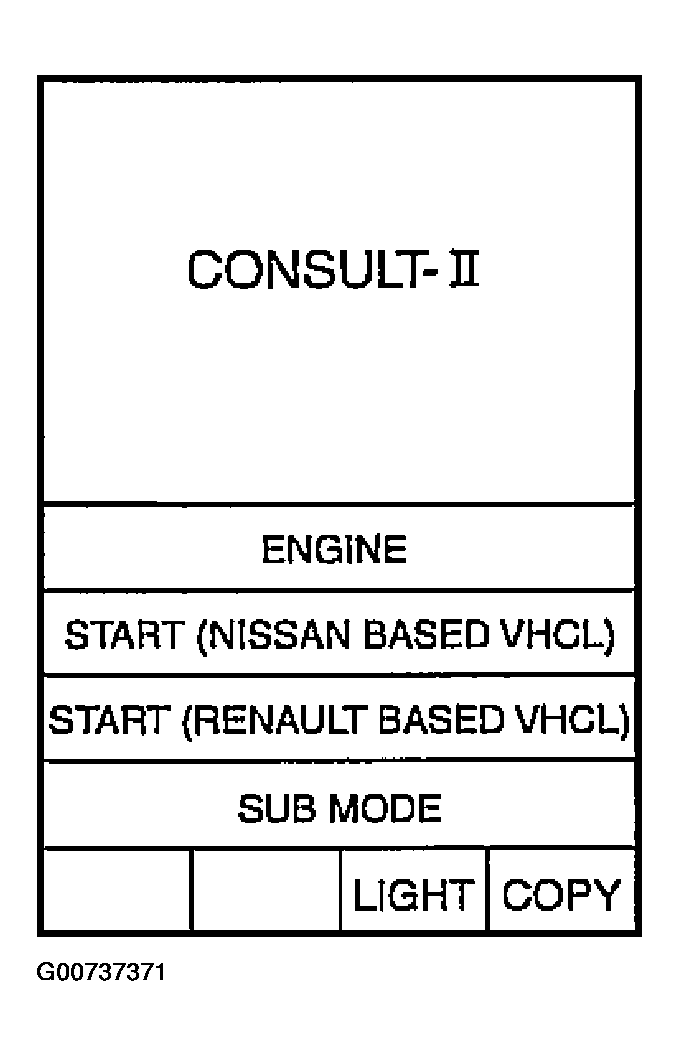

    Fig 2: Displaying CONSULT-II Main Menu
    G00737371Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "ICC".

    If "ICC" is not indicated, go to CONSULT-II Data Link Connector (DLC) Circuit .

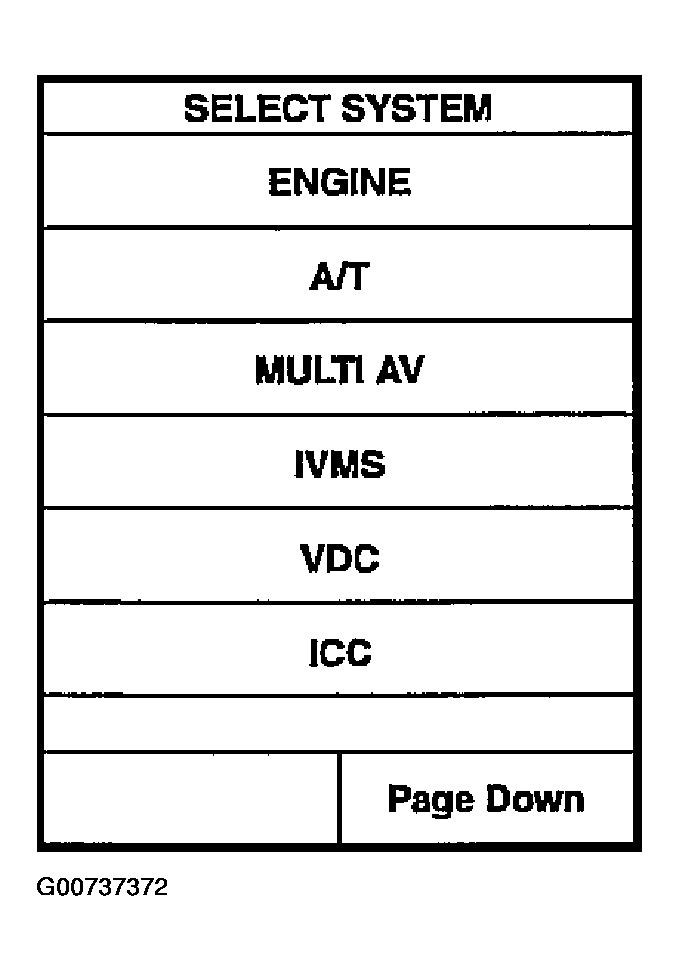

    Fig 3: Selecting "ICC" on Display
    G00737372Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "WORK SUPPORT".

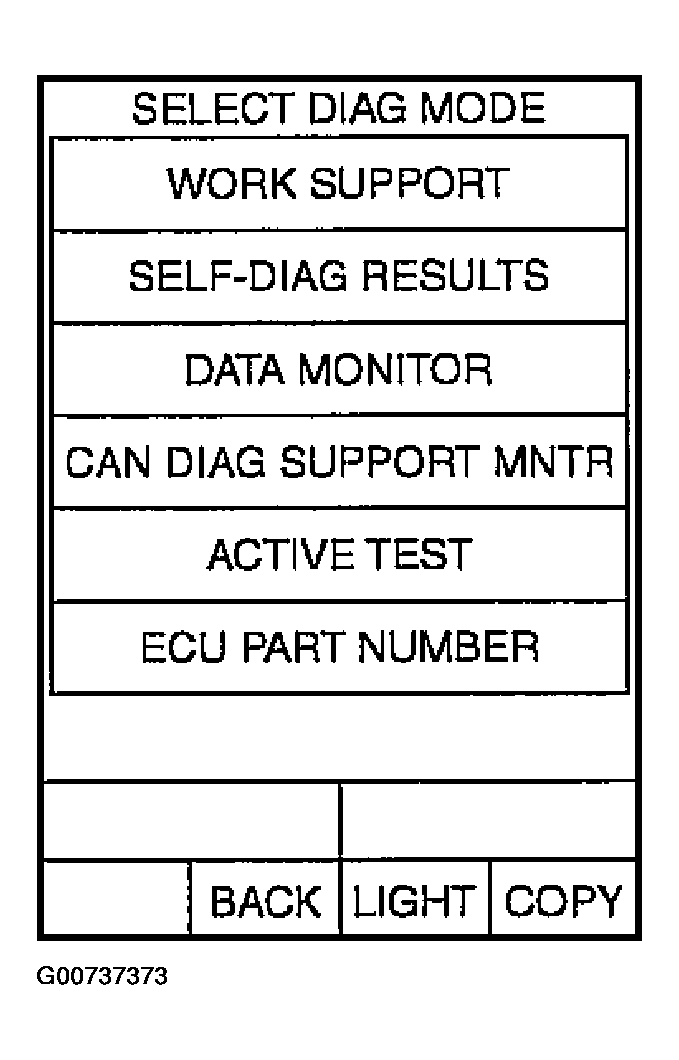

    Fig 4: Selecting "WORK SUPPORT" on Display
    G00737373Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "LASER BEAM ADJUST".

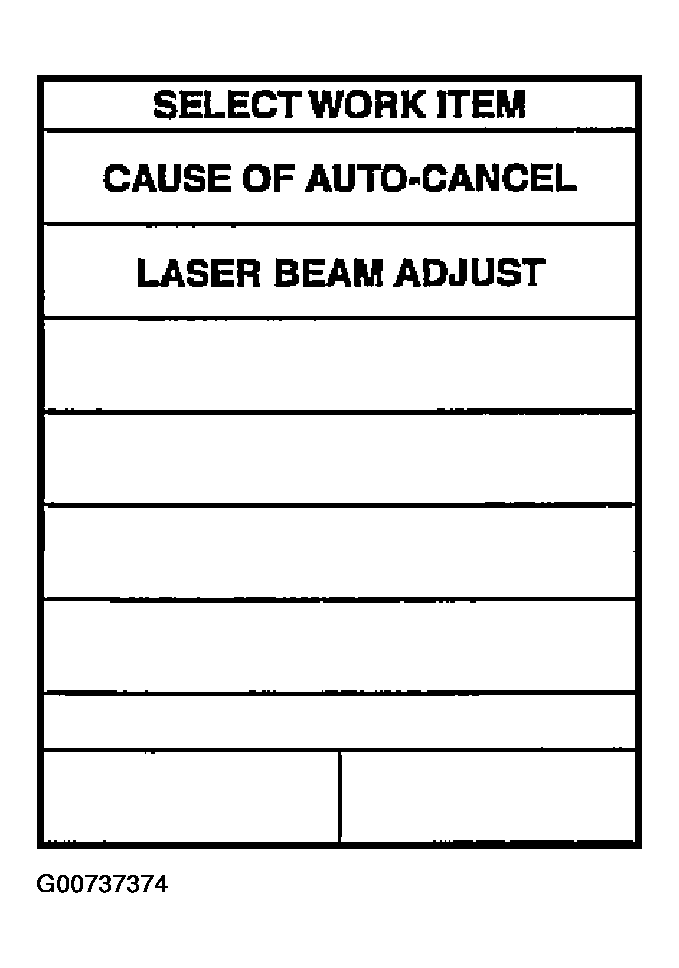

    Fig 5: Selecting "LASER BEAM ADJUST" on Display
    G00737374Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "START".

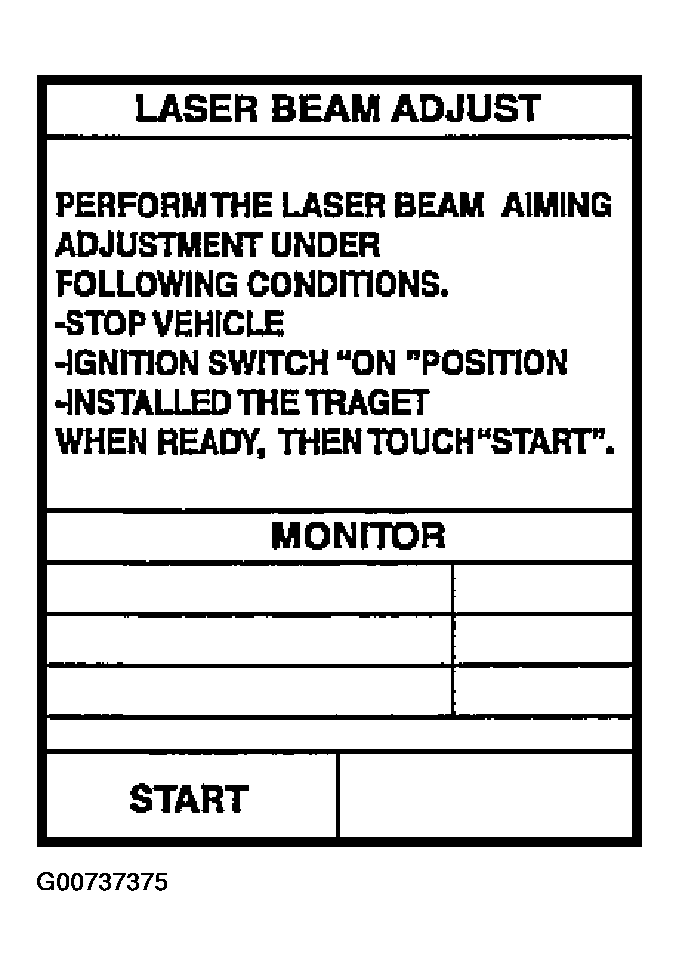

    Fig 6: Selecting "START" on Display
    G00737375Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: If the adjustment screen does not appear on CONSULT-II 10 sec. After touching "LASER BEAM ADJUST" screen, the following causes may be considered:
    • Target is not set accurately.
    • There is not enough space beside the target.
    • Deformation of vehicle or the surrounding equipment unit, bracket, or the surrounding equipment is causing inappropriate installation of sensor and aiming may be set out of the adjustable range.
    • The area is not suitable for the adjustment work.
    • ICC sensor is not clean.
  8. After the CONSULT-II displays "ADJUST THE VERTICAL OF LASER" turn the up-down direction adjustment screw until "U/D CORRECT" value is set in the range of +/-4.
    CAUTION: Turn the screw slowly. The value change on display is slower than actual movement of the ICC sensor. Wait for 2 seconds every time the screw is turned half a rotation.
    NOTE: Turning the screw to the right lowers the aiming and to the left lifts the aiming.

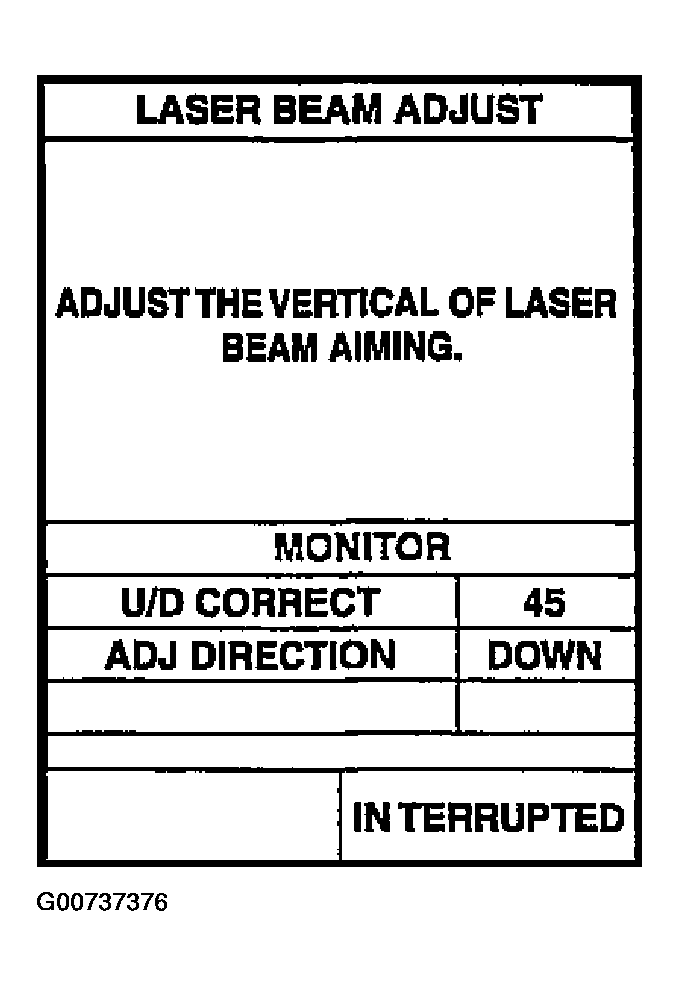

    Fig 7: Displaying Vertical Alignment Screen
    G00737376Courtesy of NISSAN MOTOR CO., U.S.A.

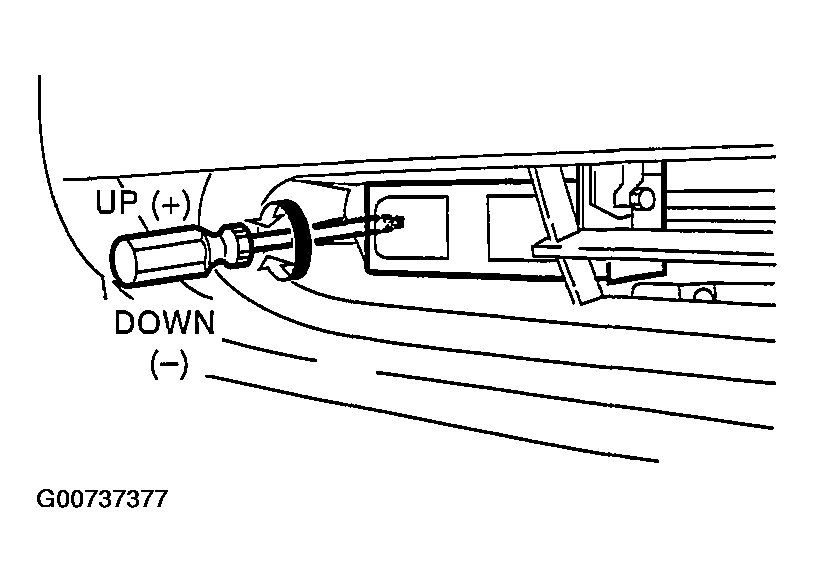

    Fig 8: Manually Adjusting Vertical of Laser
    G00737377Courtesy of NISSAN MOTOR CO., U.S.A.
  9. When "U/D CORRECT" value indicates ohm4, confirm that the margin of value remains within ohm4 at least for 2 seconds with no equipment or hand touching the ICC sensor. When "COMPLETED THE VERTICAL AIMING OF LASER BEAM" appears on screen, touch "END".
    CAUTION: Be sure that the margin of "U/D CORRECT" is within +/-4 with ICC sensor unit is untouched.

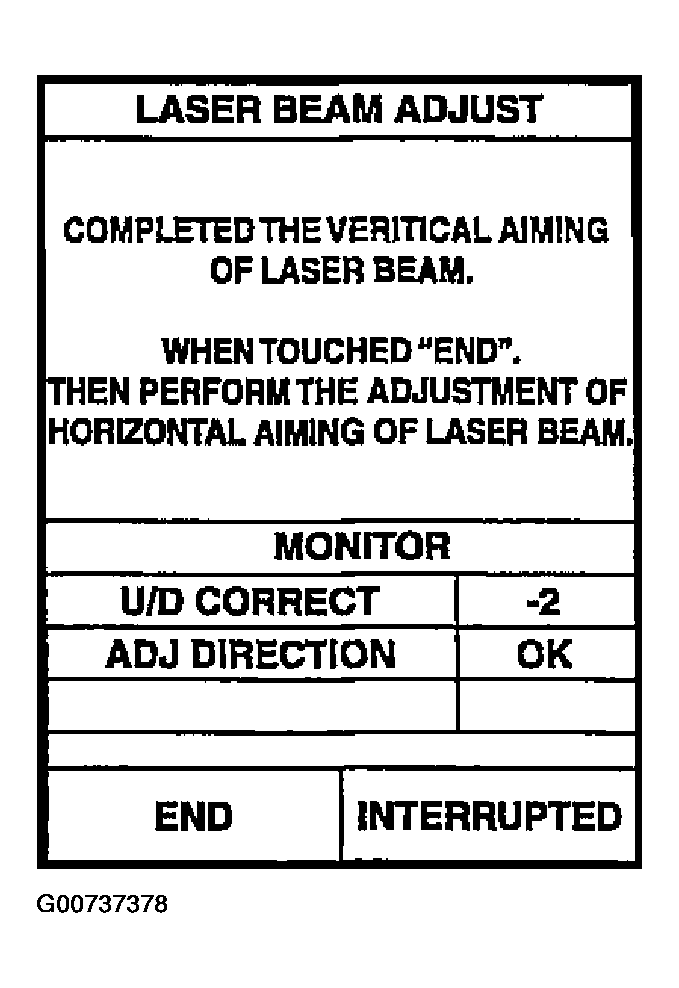

    Fig 9: Displaying "COMPLETED THE VERTICAL AIMING OF LASER BEAM" Screen
    G00737378Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Confirm that "ADJUSTING AUTOMATIC HORIZONTAL LASER BEAM AIMING" is on screen and wait for a while (maximum: 10 sec).

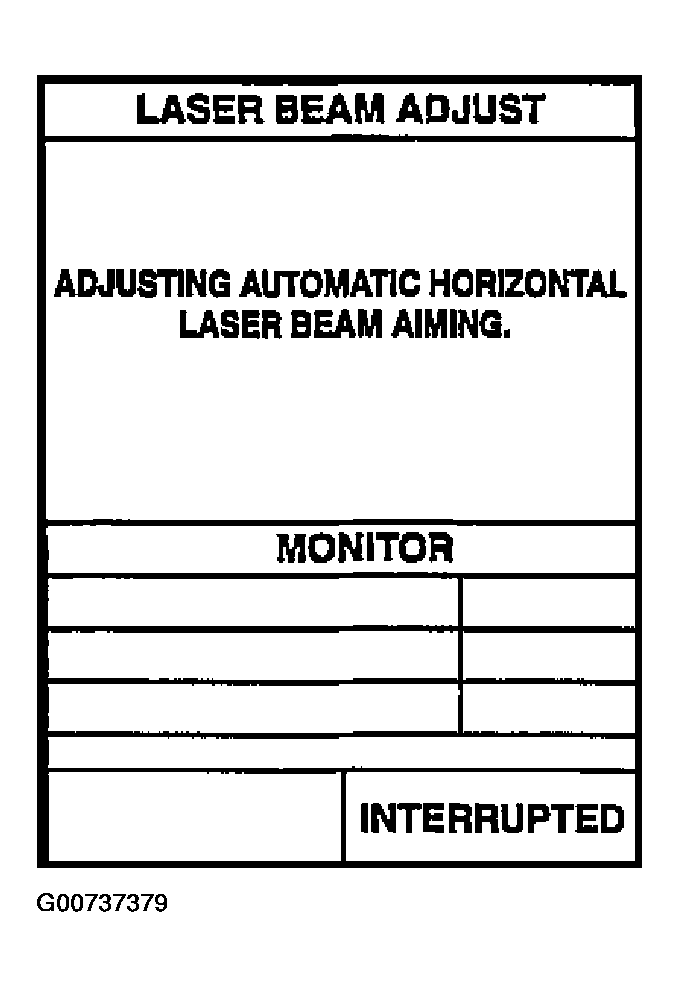

    Fig 10: Displaying "ADJUSTING AUTOMATIC HORIZONTAL LASER BEAM AIMING" Screen
    G00737379Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Confirm that "NORMALLY COMPLETED" is displayed on CONSULT-II and close the aiming adjustment procedure by touching "END".
    CAUTION: Complete all the procedures once "LASER BEAM ADJUST" mode is entered in CONSULT-II. When the procedure is discontinued, the ICC system is inoperable.

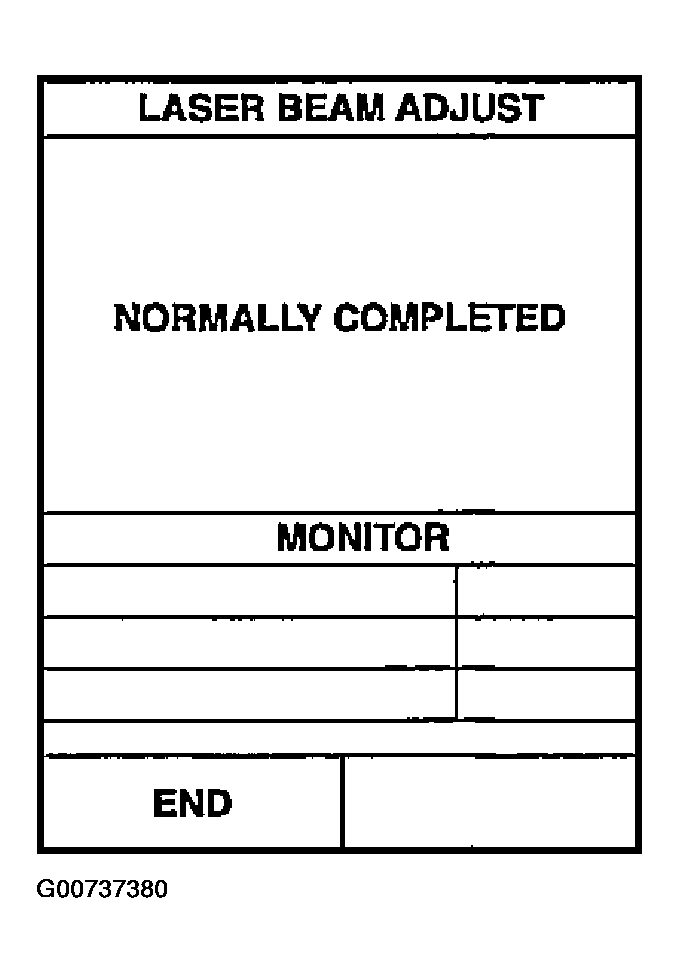

    Fig 11: Displaying "NORMALLY COMPLETED" Screen
    G00737380Courtesy of NISSAN MOTOR CO., U.S.A.
