ICC Steering Switch

WARNING: This page is about a different car, the 2004 Infiniti Q45 and 2003 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ICC steering switch.
  2. Check resistance between M443 terminals 1 and 2 by depressing each switch.

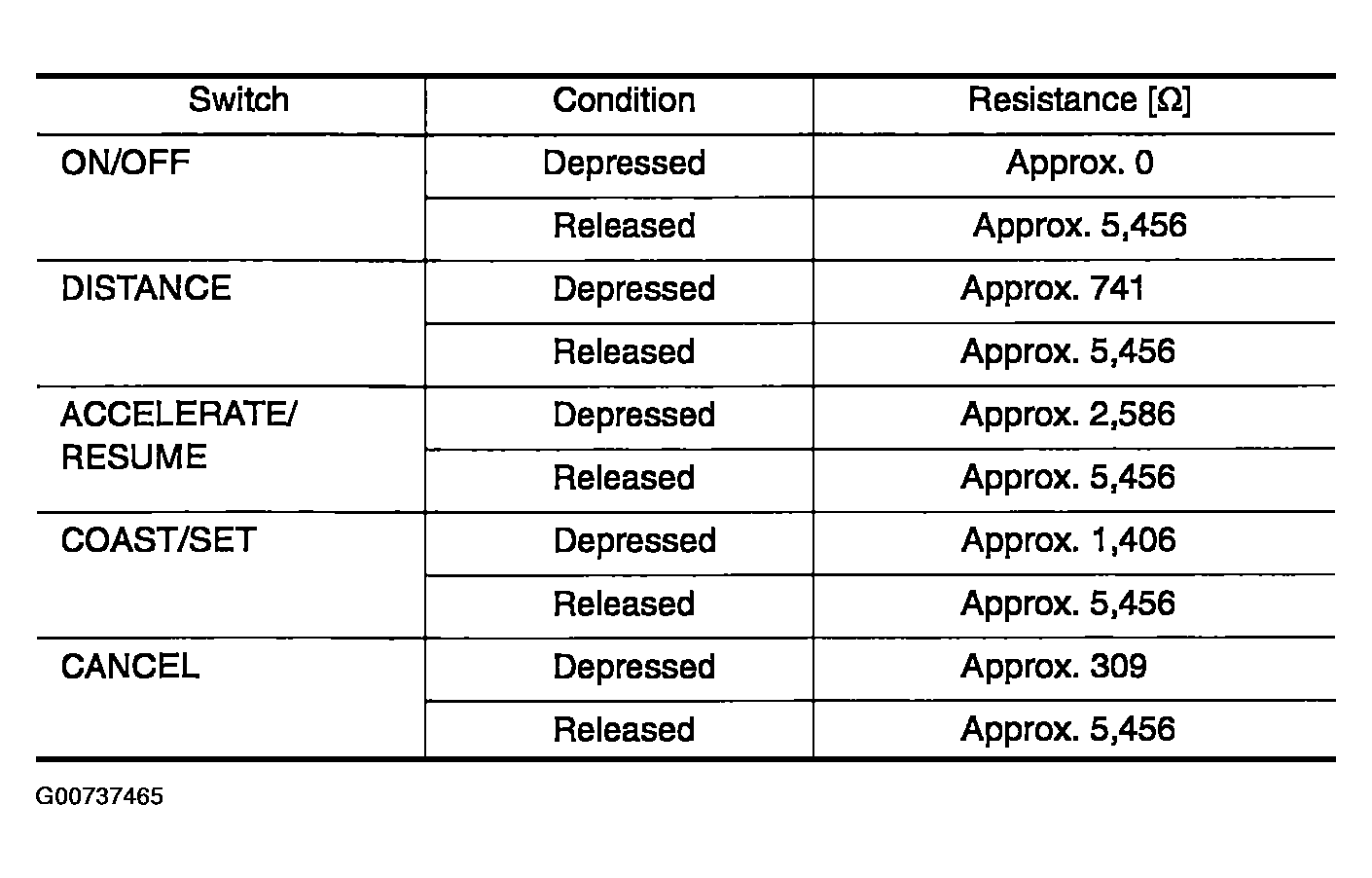

Fig 1: ICC Steering Switch Operation Resistance Chart
G00737465Courtesy of NISSAN MOTOR CO., U.S.A.

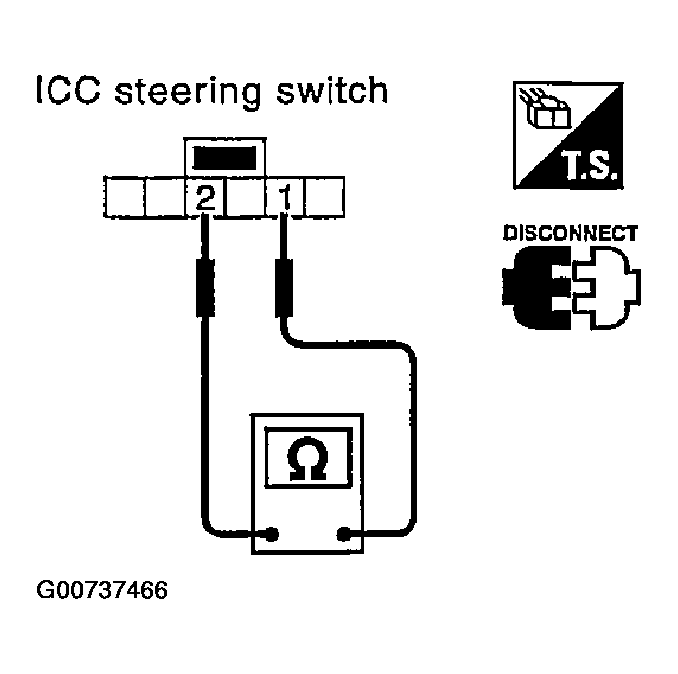

Fig 2: Checking ICC Steering Switch Operation
G00737466Courtesy of NISSAN MOTOR CO., U.S.A.
