ICC Brake Switch And Stop Lamp Switch

WARNING: This page is about a different car, the 2004 Infiniti Q45 and 2003 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

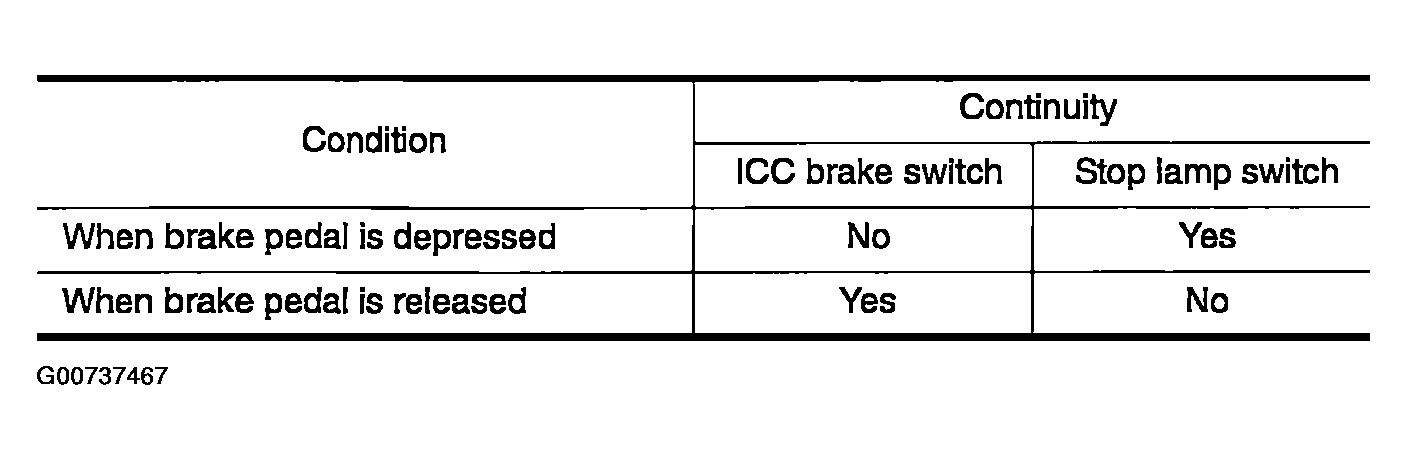

Fig 1: ICC Brake Switch & Stop Lamp Switch Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

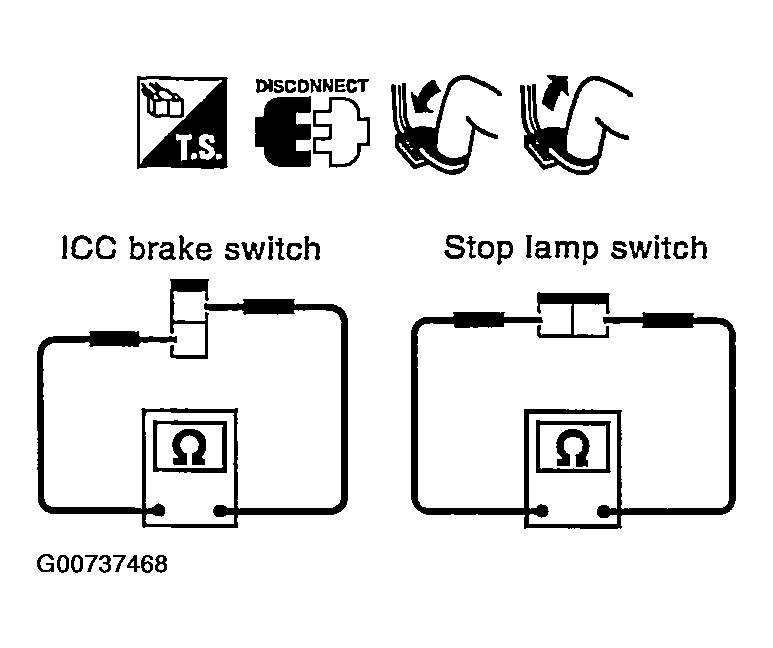

Fig 2: Checking ICC Brake Switch & Stop Lamp Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Check each switch after adjusting brake pedal, refer to BRAKE PEDAL .
