Switch Operation

WARNING: This page is about a different car, the 2004 Infiniti Q45 and 2003 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

The system is operated by a master ON/OFF switch and four control switches, all mounted on the steering wheel

Fig 1: Locating ON/OFF Switch & Four Control Switches
G00737355Courtesy of NISSAN MOTOR CO., U.S.A.

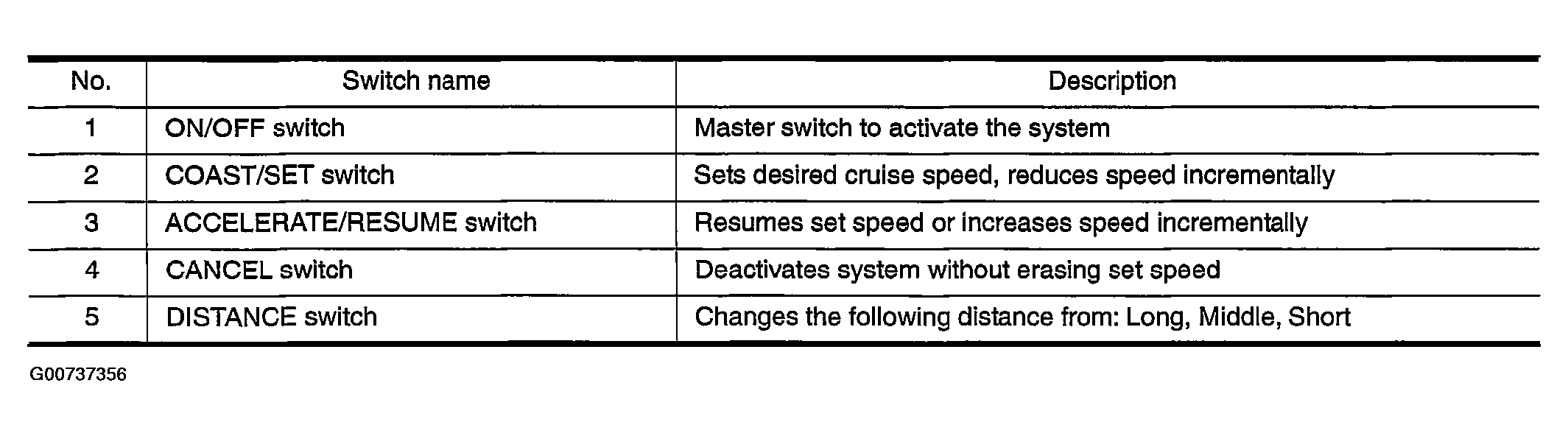

Fig 2: Switch Location & Description Table
G00737356Courtesy of NISSAN MOTOR CO., U.S.A.
