Disassembly And Assembly For MULTIFUNCTION Switch

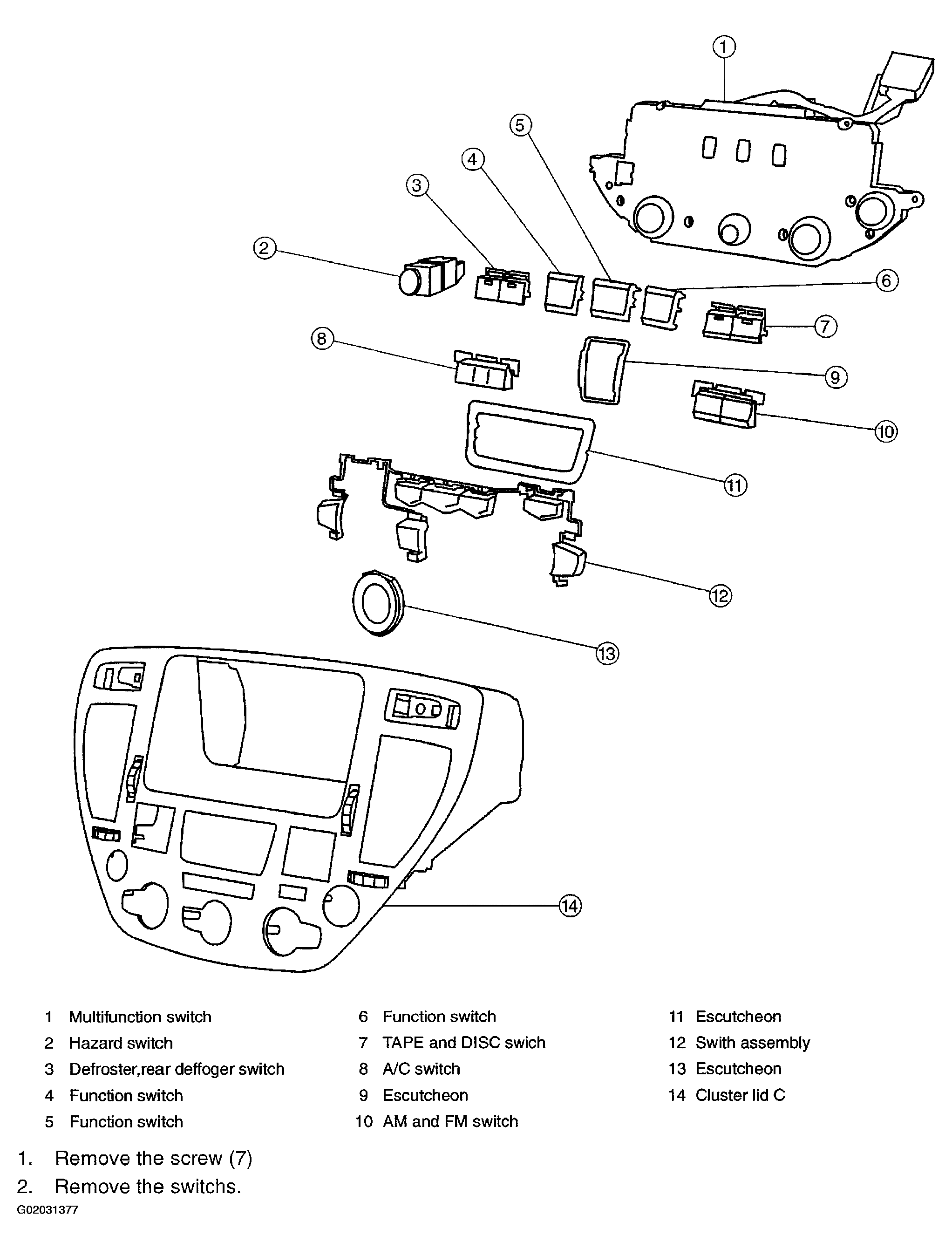

Fig 1: Disassembly & Assembly For Multifunction Switch

G02031377

Courtesy of NISSAN MOTOR CO., U.S.A.
