Inspection/Front Door Switch

CHECK FRONT DOOR SWITCH OPERATION
With CONSULT-II
- See "DOOR SW" on DATA MONITOR in DATA MONITOR mode.
Without CONSULT-II
- Check front door switches in Switch monitor mode. Refer to ON BOARD DIAGNOSIS .
OK or NG
1. OK >> Front door switch is OK.
2. NG >> GO TO 2.
FRONT DOOR SWITCH OPEN OR SHORT CIRCUIT CHECK
1. Disconnect BCM connector and front door switches connector.
2. Turn ignition switch OFF.
3. Check the following.
  - Continuity between BCM harness connector B4, M4 terminals 37 (W/G), 142 (W/R) and front door switch harness connector B220 (driver side) terminal 1 (W/G), B20 (passenger side) terminal 1 (W/R).
  - Check continuity between BCM harness connector terminals 37,142 and body ground.

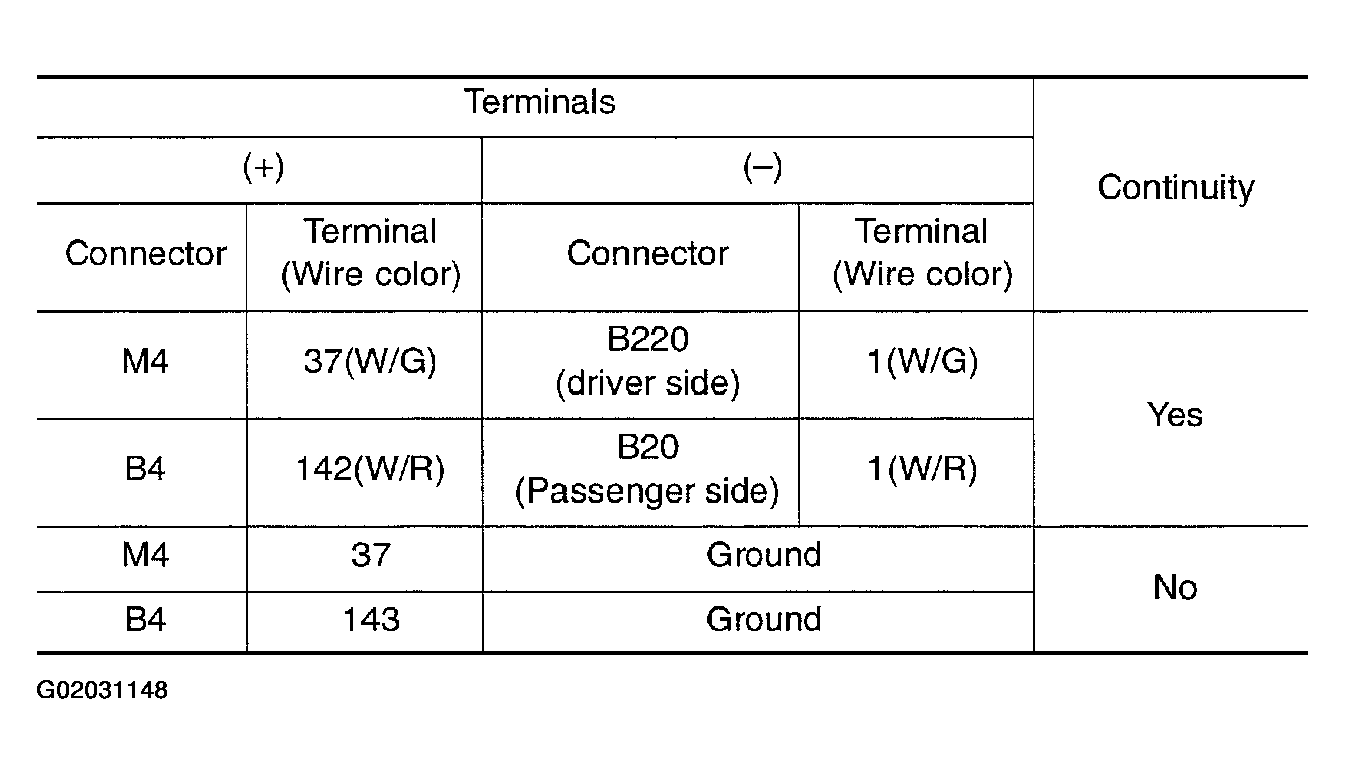

  Fig 1: Front Door Switch Open Or Short Circuit Check (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Front Door Switch Open Or Short Circuit Check (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK >> GO TO 3.
2. NG >> Repair or replace harness.
CHECK FRONT DOOR SWITCH (DRIVER SIDE OR PASSENGER SIDE)
Check continuity between front door switch harness connector B20 (driver side), B220 (passenger side) terminal 1 and body ground.

Fig 3: Checking Front Door Switch (Driver Side Or Passenger Side) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking Front Door Switch (Driver Side Or Passenger Side) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK >> Front door switch is OK.
2. NG >> Replace front door switch.
