Disassembly And Assembly For Combination Meter

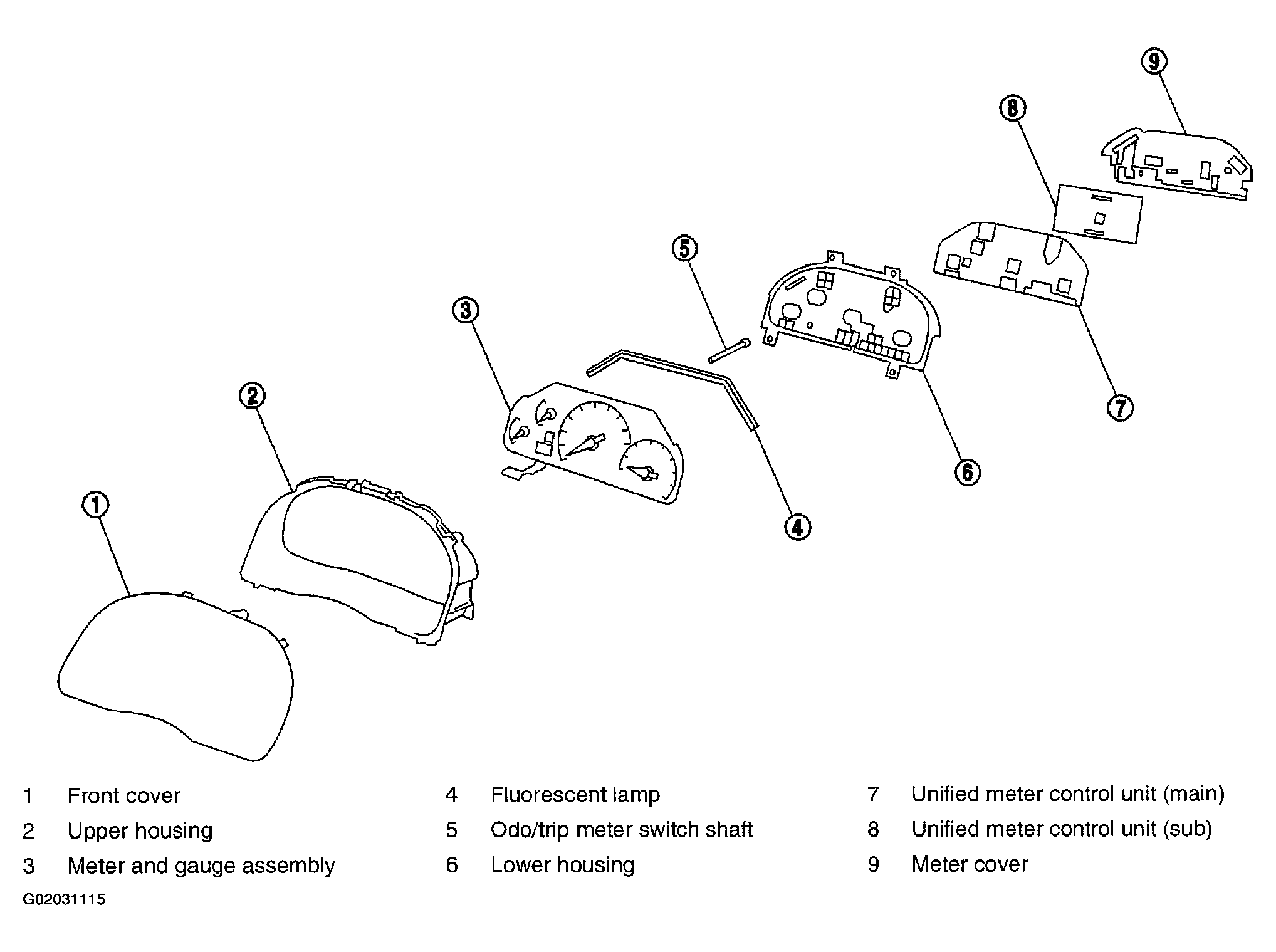

Fig 1: Exploded View Of Combination Meter

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove the screws (9) to separate meter cover.

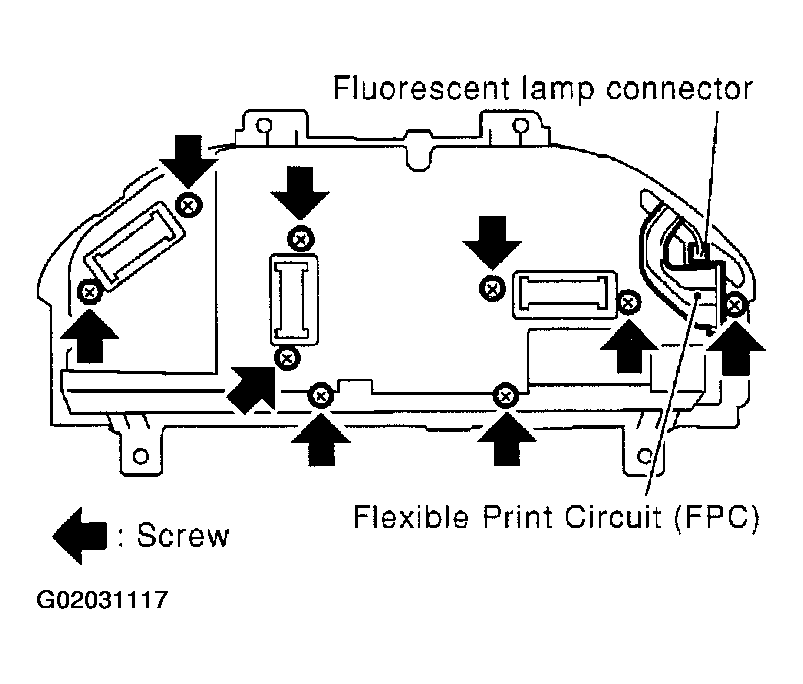

   Fig 2: View Of Flexible Printed Circuit Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Separate the connectors for fluorescent lamp connector and flexible printed circuit for fluorescent lamp.
3. Separate the flexible printed circuit for odometer/trip meter.
4. Remove the screw (1) to separate unified meter control unit (main and sub).
5. Disengage the tabs (8) to separate upper housing.
6. Remove the screw (1) to separate meter and gauge assembly.
7. Disengage the tabs (7) to separate front cover.
8. Separate unified meter control unit (main) from unified meter control unit (sub).
   Fig 3: Locating Screws

   Courtesy of NISSAN MOTOR CO., U.S.A.
