Removal And Installation

  1. Remove the cluster lid C, refer to INSTRUMENT PANEL .
  2. Remove the screws (2), and remove clock.

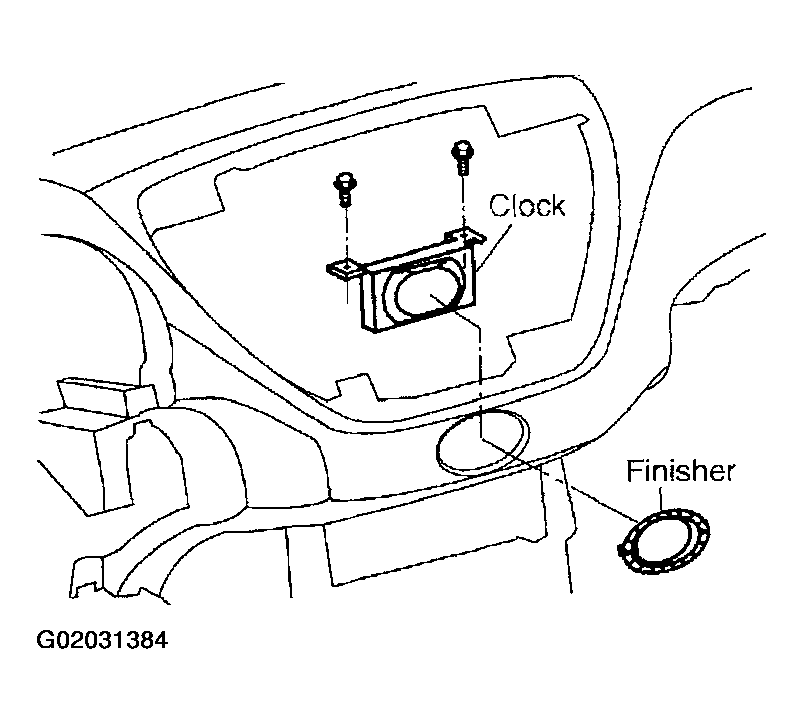

    Fig 1: Removing & Installing Clock
    G02031384Courtesy of NISSAN MOTOR CO., U.S.A.
