Terminals and Reference Values For Rear Power Seat Control Unit LH

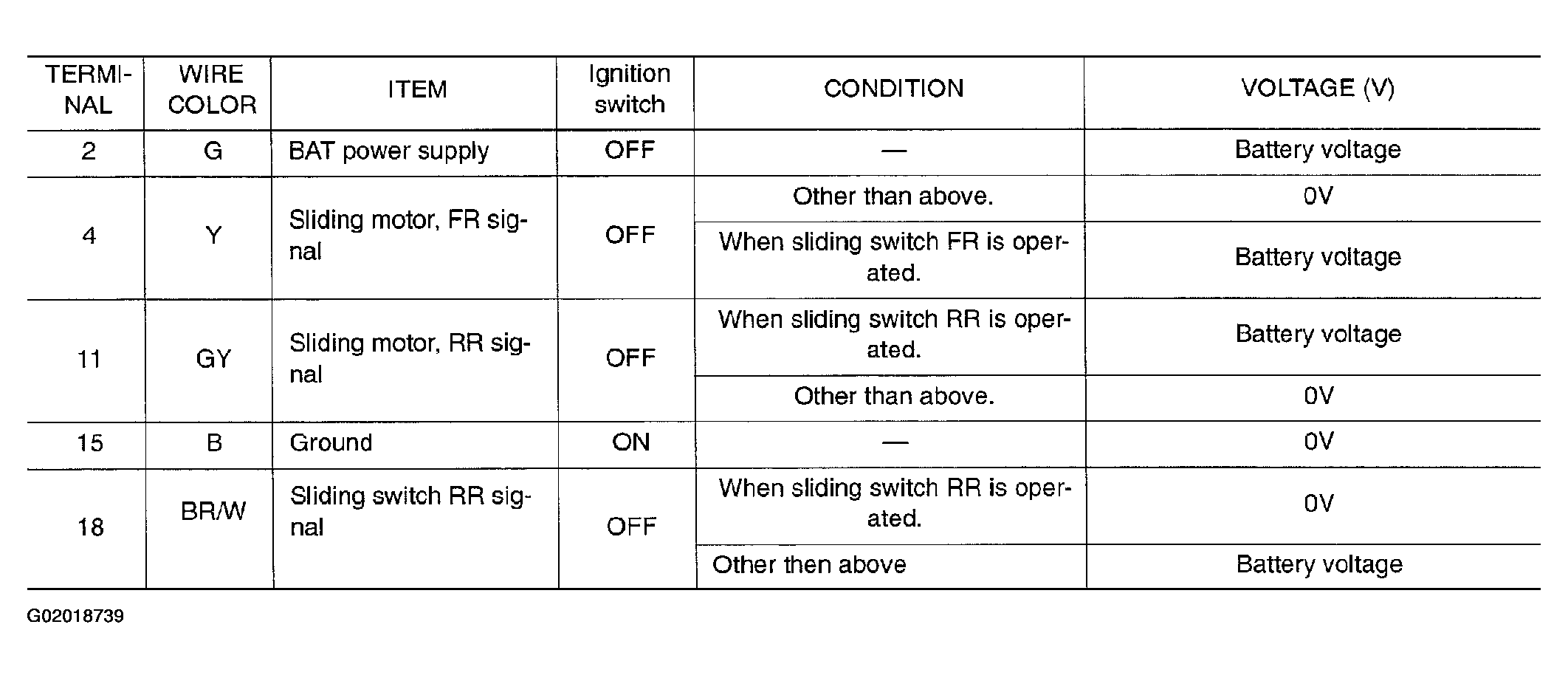

Fig 1: Terminals And Reference Values For Rear Power Seat Control Unit LH Condition Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

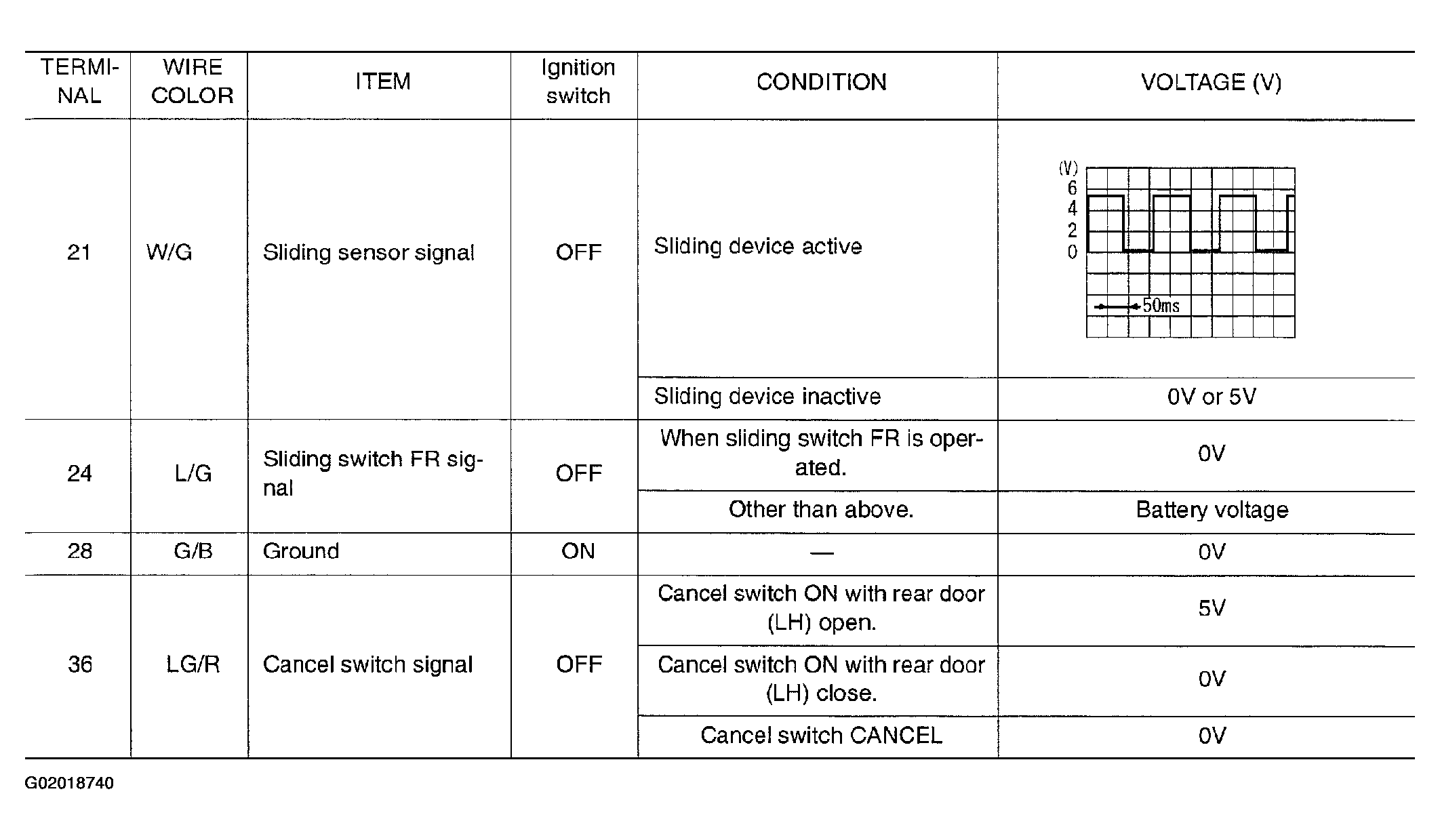

Fig 2: Terminals And Reference Values For Rear Power Seat Control Unit LH Condition Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
