Reverse Interlock Door Mirror System: Schematic

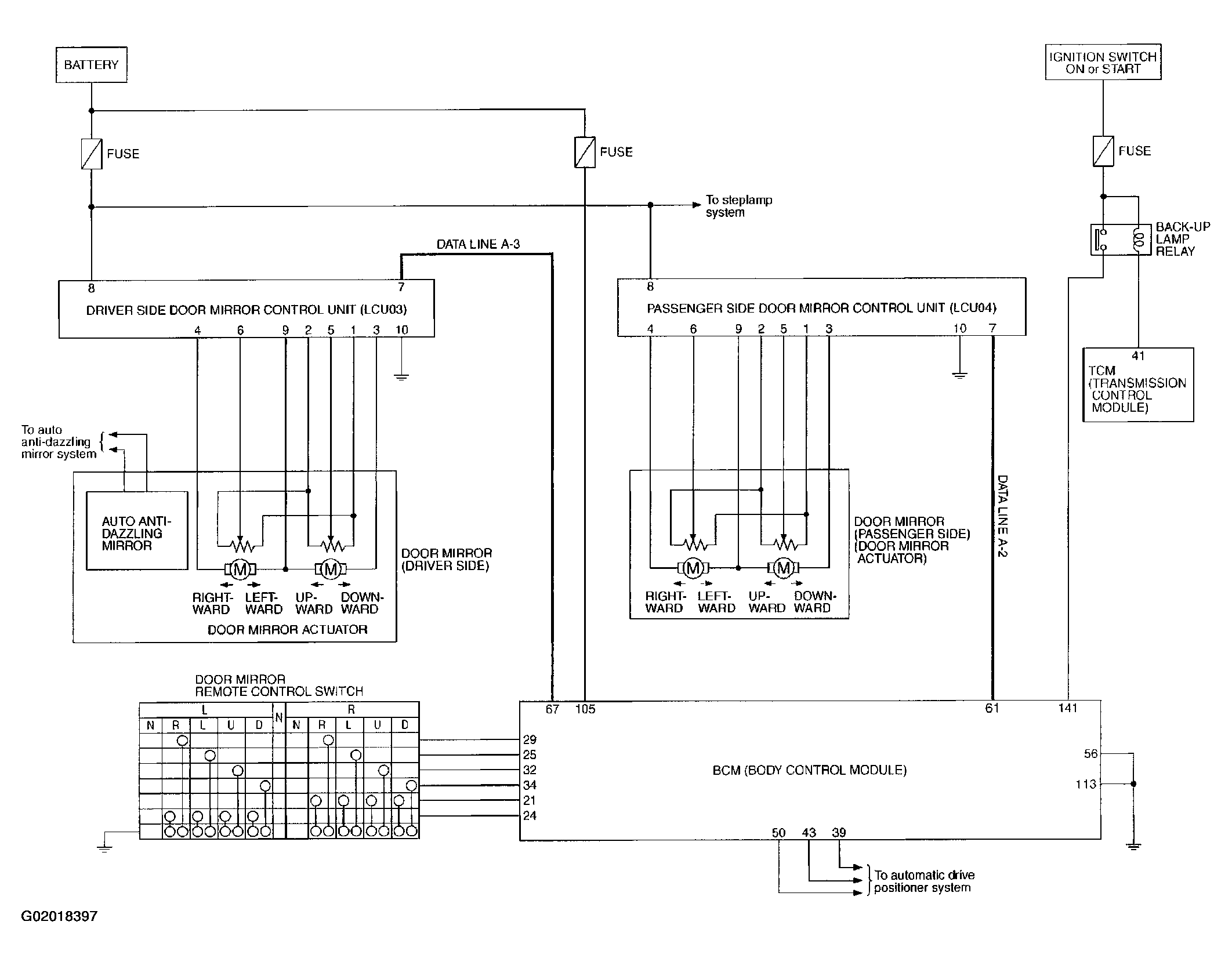

Fig 1: Reverse Interlock Door Mirror System Schematic Diagram

G02018397

Courtesy of NISSAN MOTOR CO., U.S.A.
