Consult-II Basic Operation Procedure

With the ignition switch OFF, connect CONSULT-II to the data link connector and turn the ignition switch ON.
Touch "START".

Fig 1: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen.

Fig 2: CONSULT-II Display - Touch "IVMS"
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF " on the "SELECT SYS COND" screen.
Touch "OK". If the selection is wrong, touch "CANCEL".

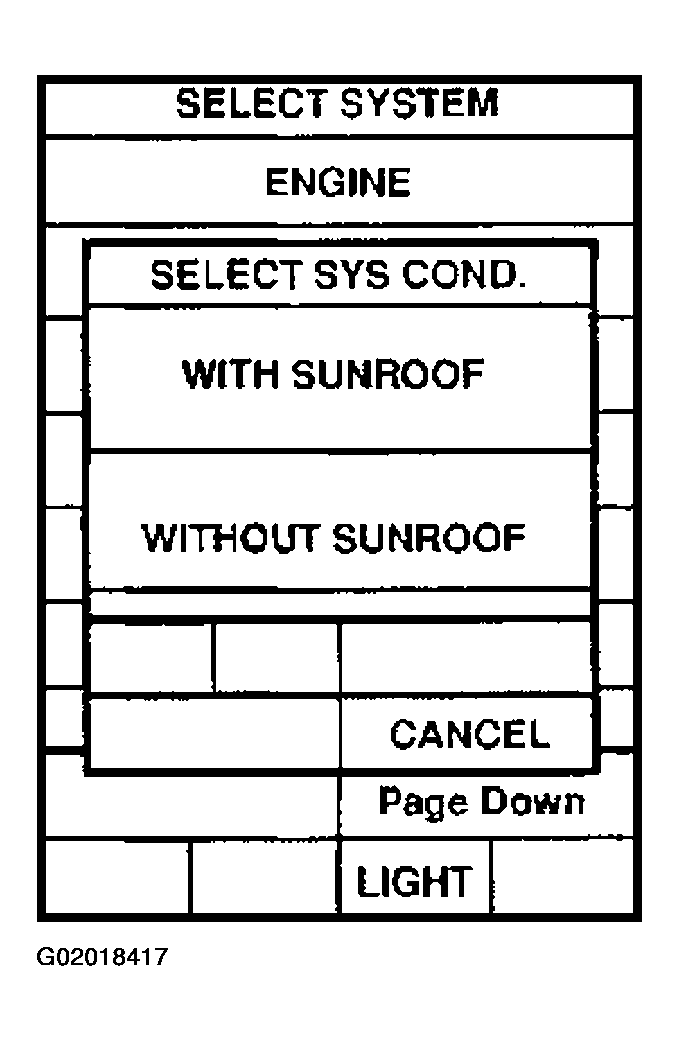

Fig 3: CONSULT-II Display- Touch "SELECT SYS COND"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
