Terminal and Reference Value for BCM

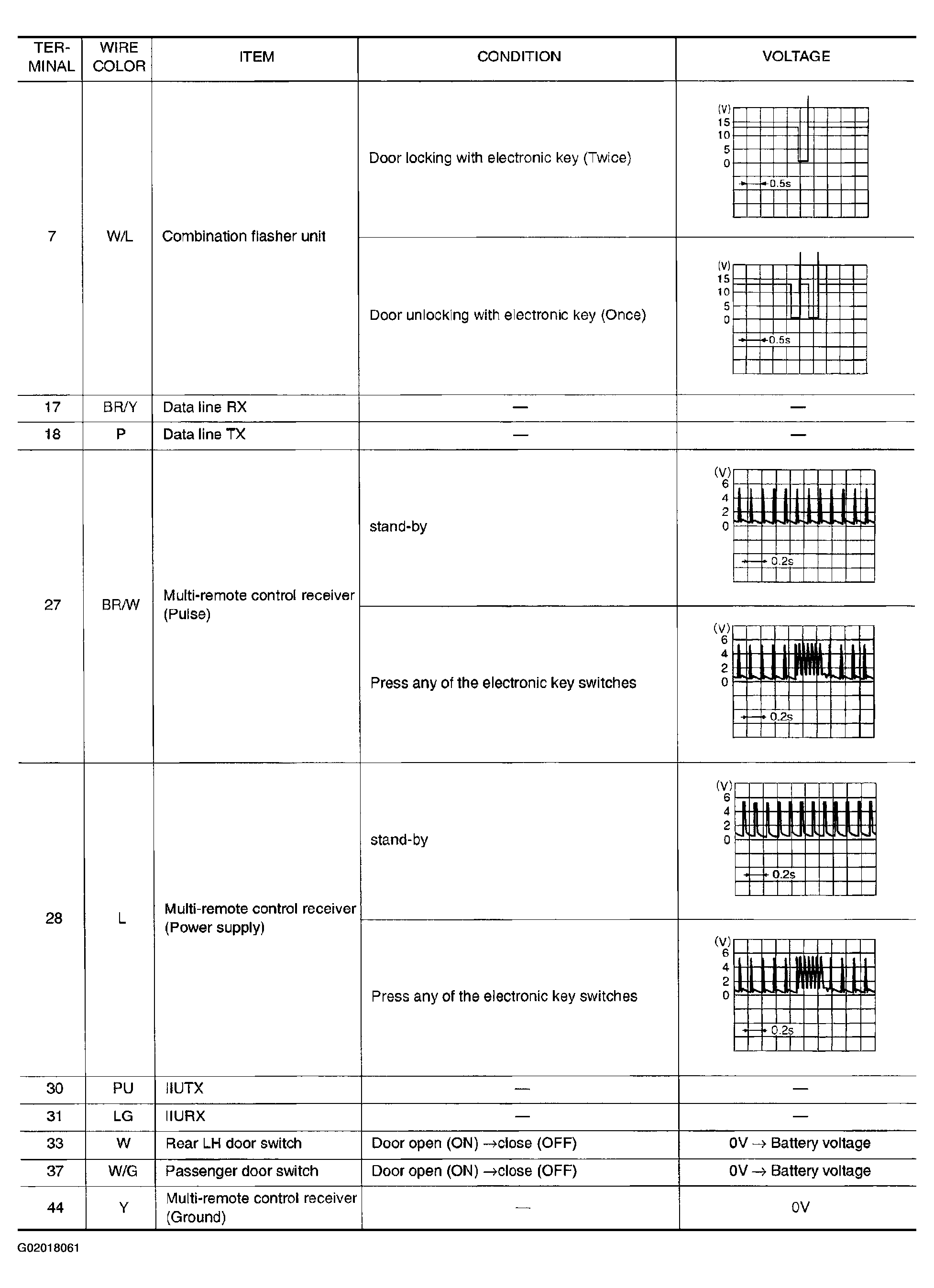

Fig 1: Terminal And Reference Value For BCM (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

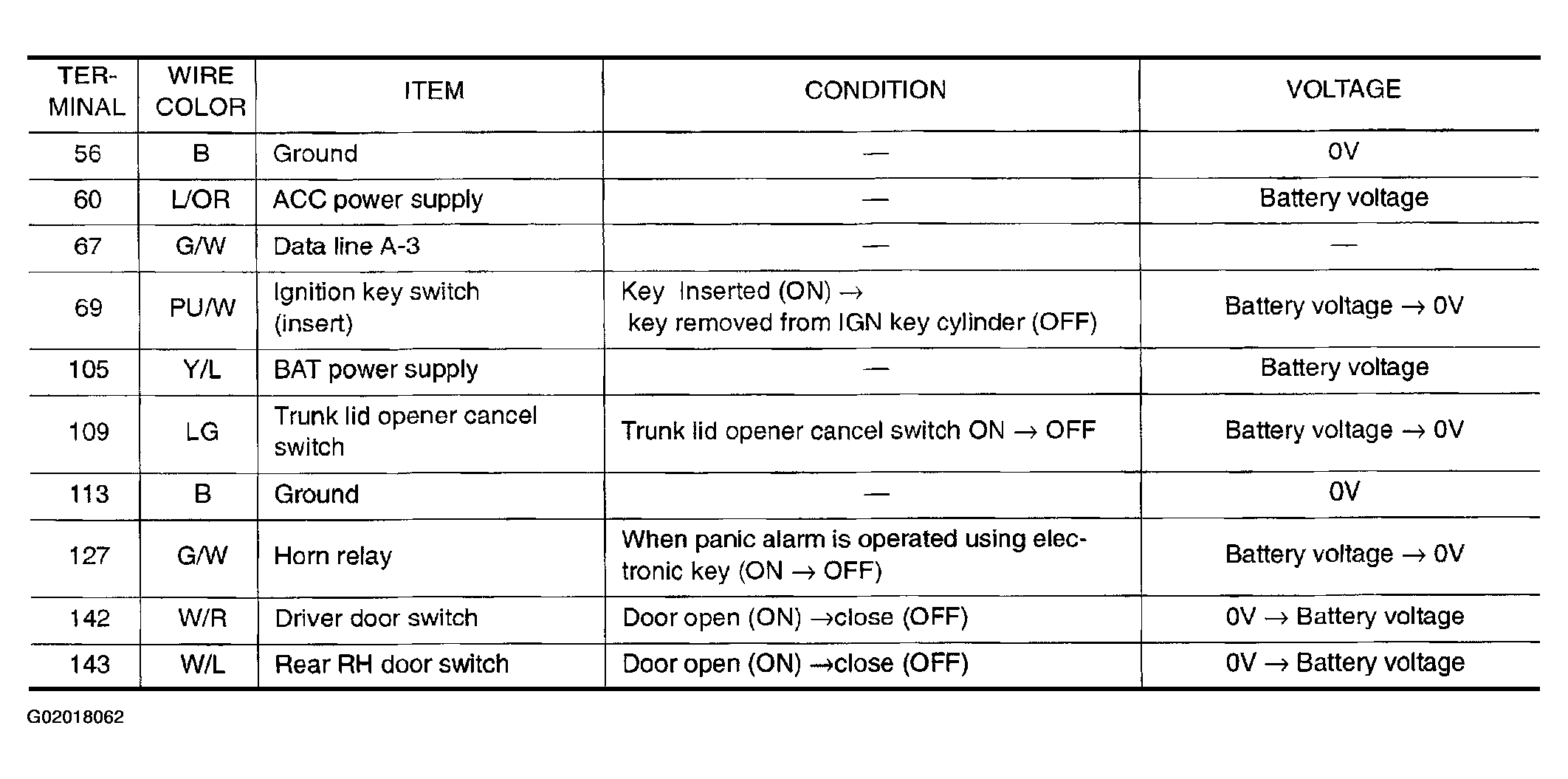

Fig 2: Terminal And Reference Value For BCM (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
