How to perform switch monitor
How to perform switch monitor

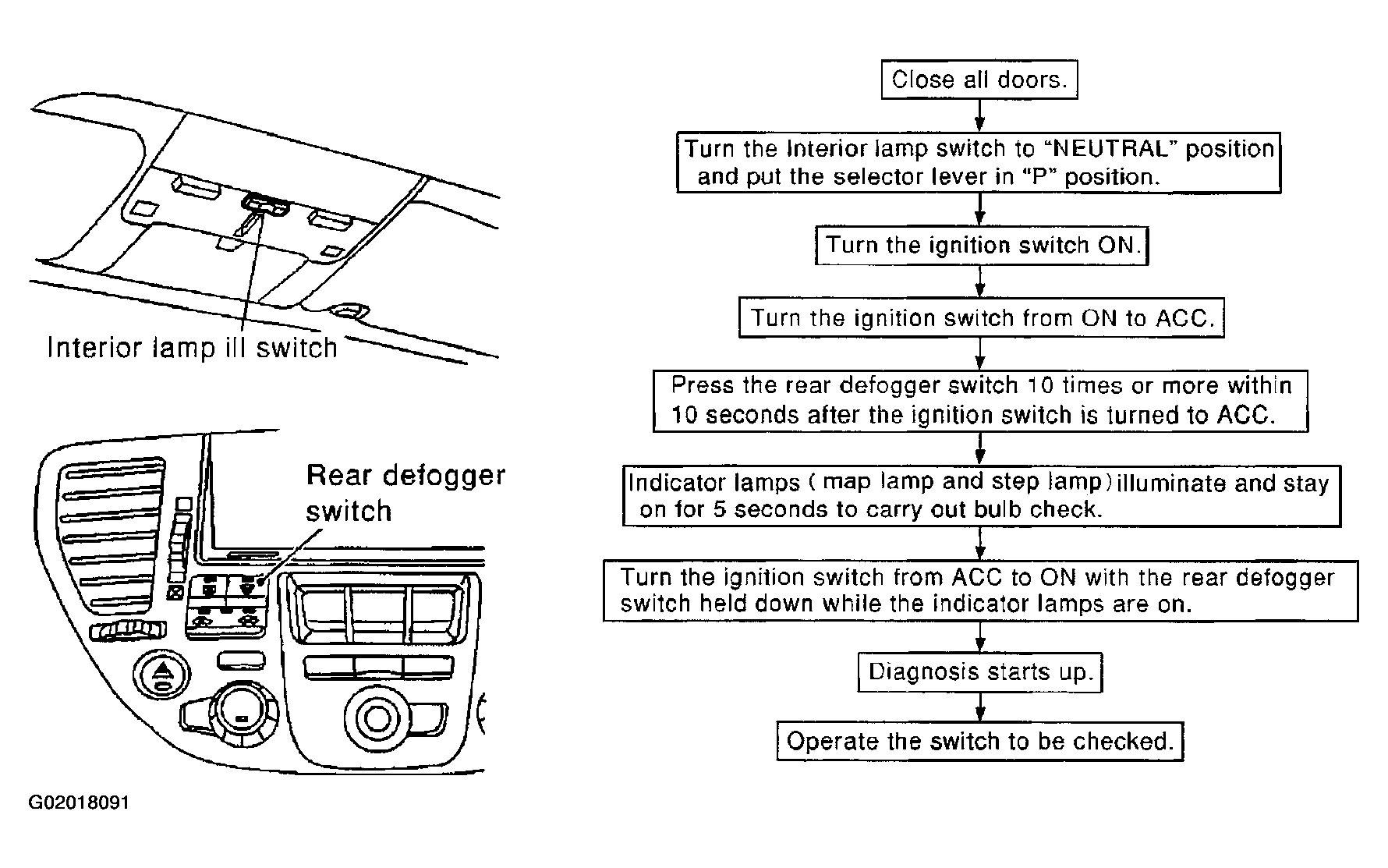

Fig 1: Performing Switch Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
