IVMS communication diagnosis.
- IVMS communication diagnosis consists of the communication diagnosis, sleep diagnosis, and inactive communication diagnosis between BCM and each local unit (LCU), and display the results on the CONSULT-II screen.NOTE: Sleep is a power saving function when a vehicle is stationary (all BCM related electrical equipment: OFF, and the timer: OFF).

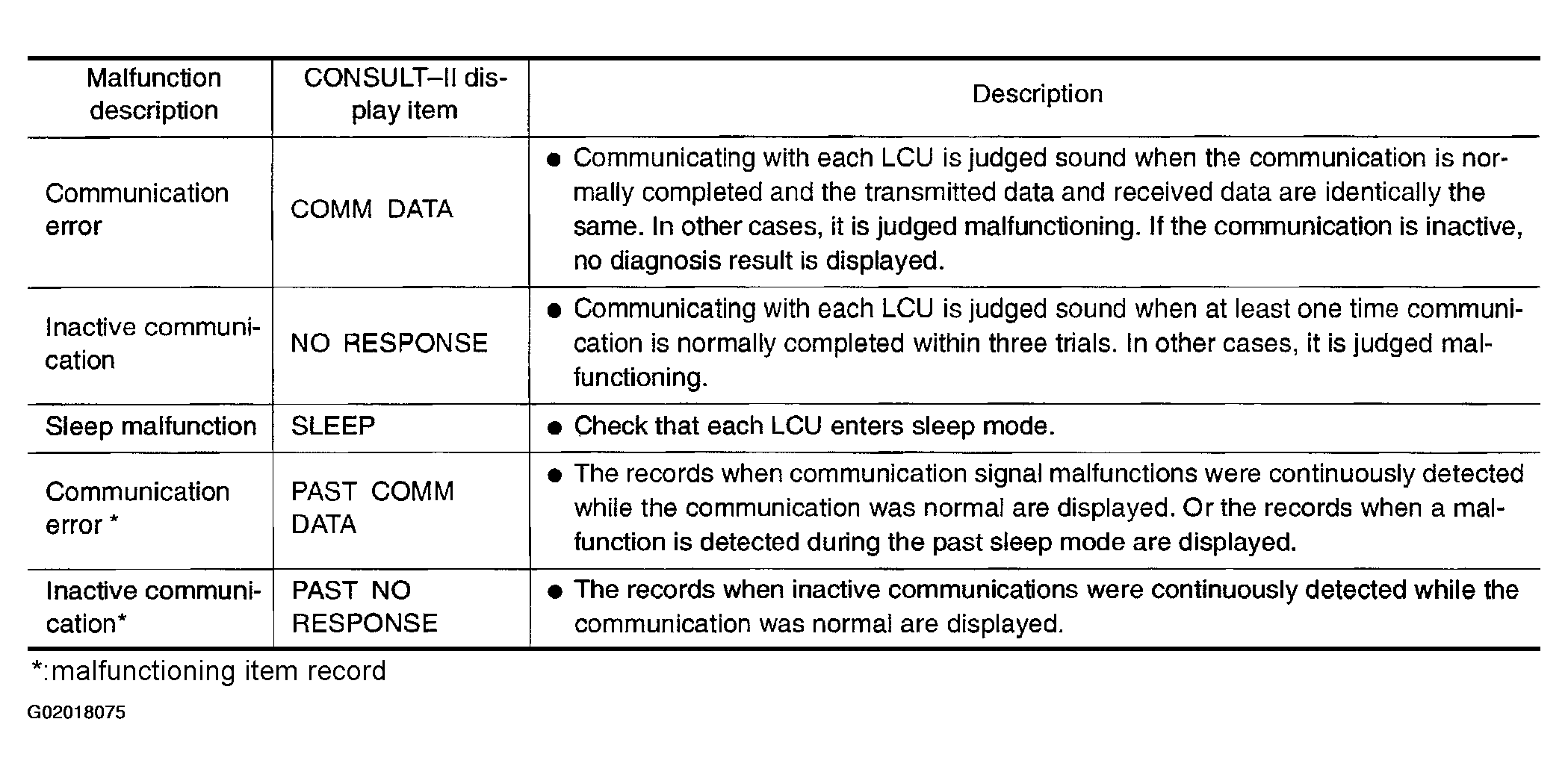

- The function also stores the communication malfunction records and inactive communication records, and displays the data on the CONSULT-II screen (Error record diagnosis)
