Voice Activated Control System: Schematic

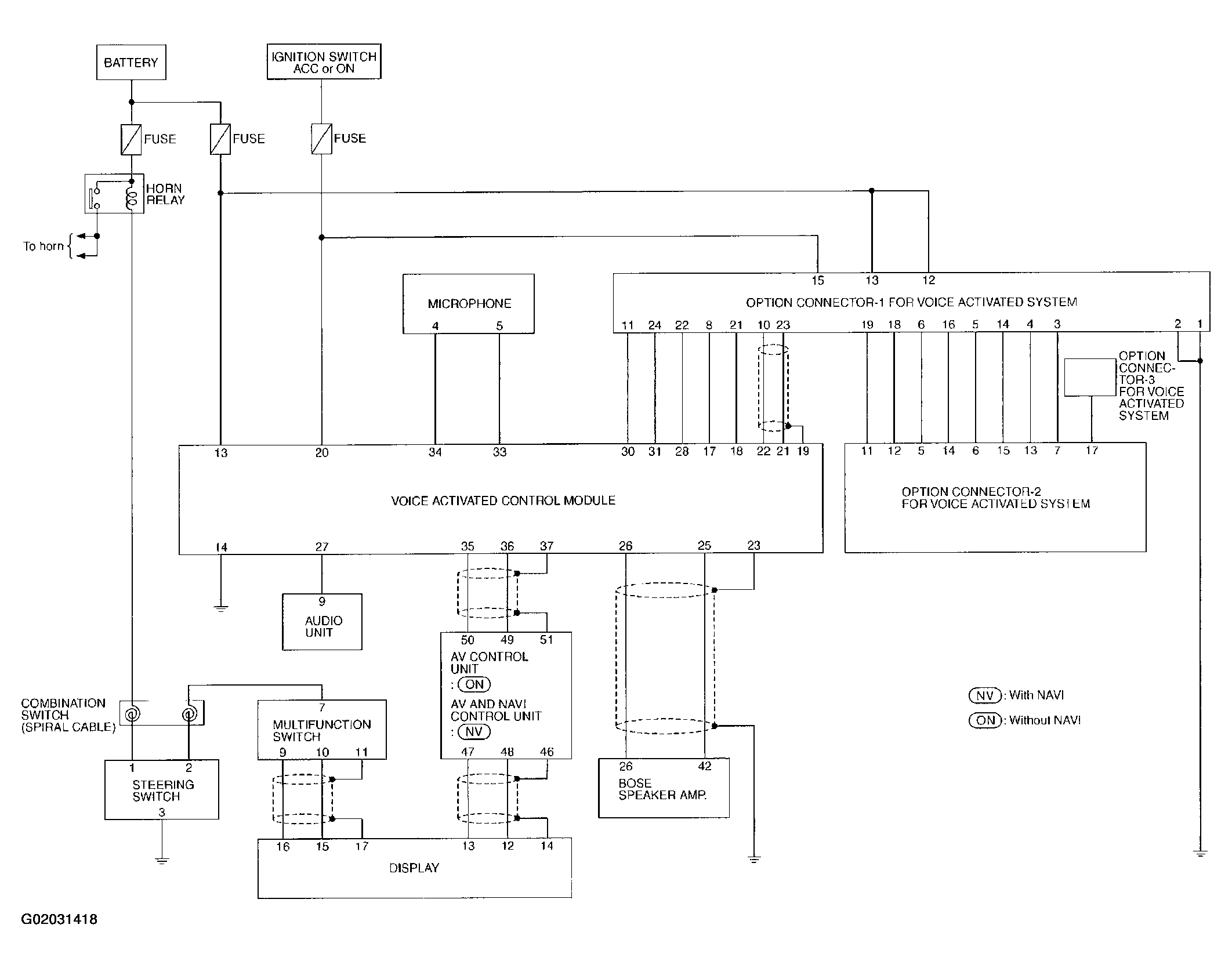

Fig 1: Schematic

G02031418

Courtesy of NISSAN MOTOR CO., U.S.A.
