Data Monitor

Displays status of the vehicle signal input to the AV and NAVI control unit. (Refer to CONFIRMATION/ADJUSTMENT MODE (WITH NAVIGATION SYSTEM) for operation conditions for the connections to be indicated.)

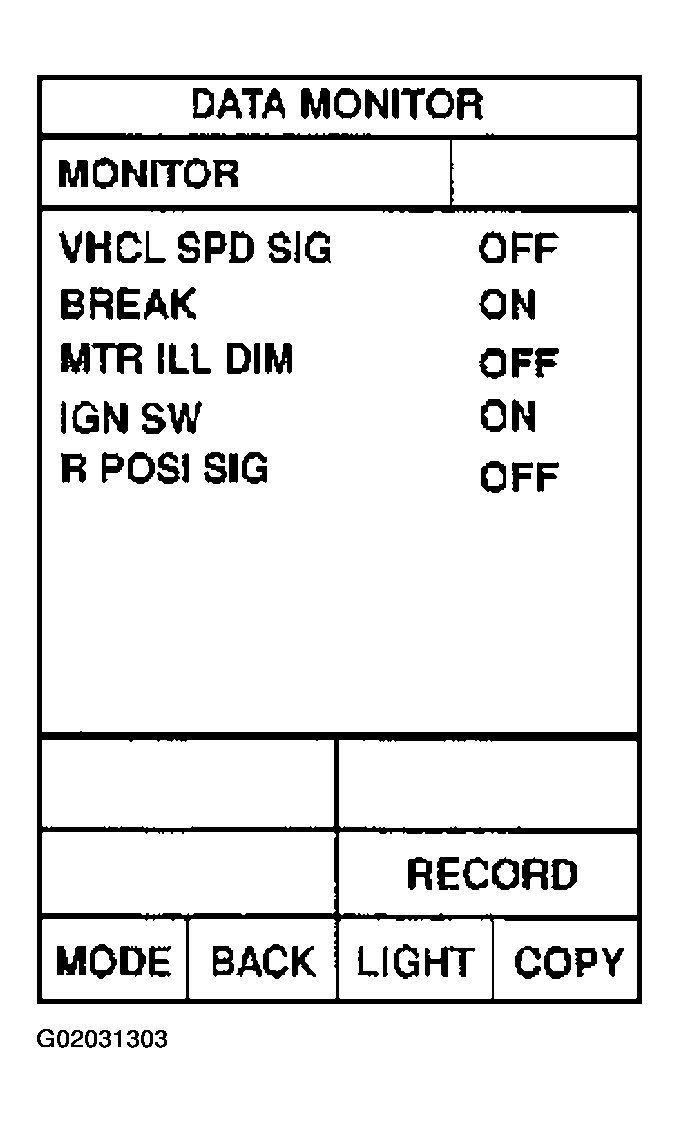

Fig 1: View Of Consult-II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

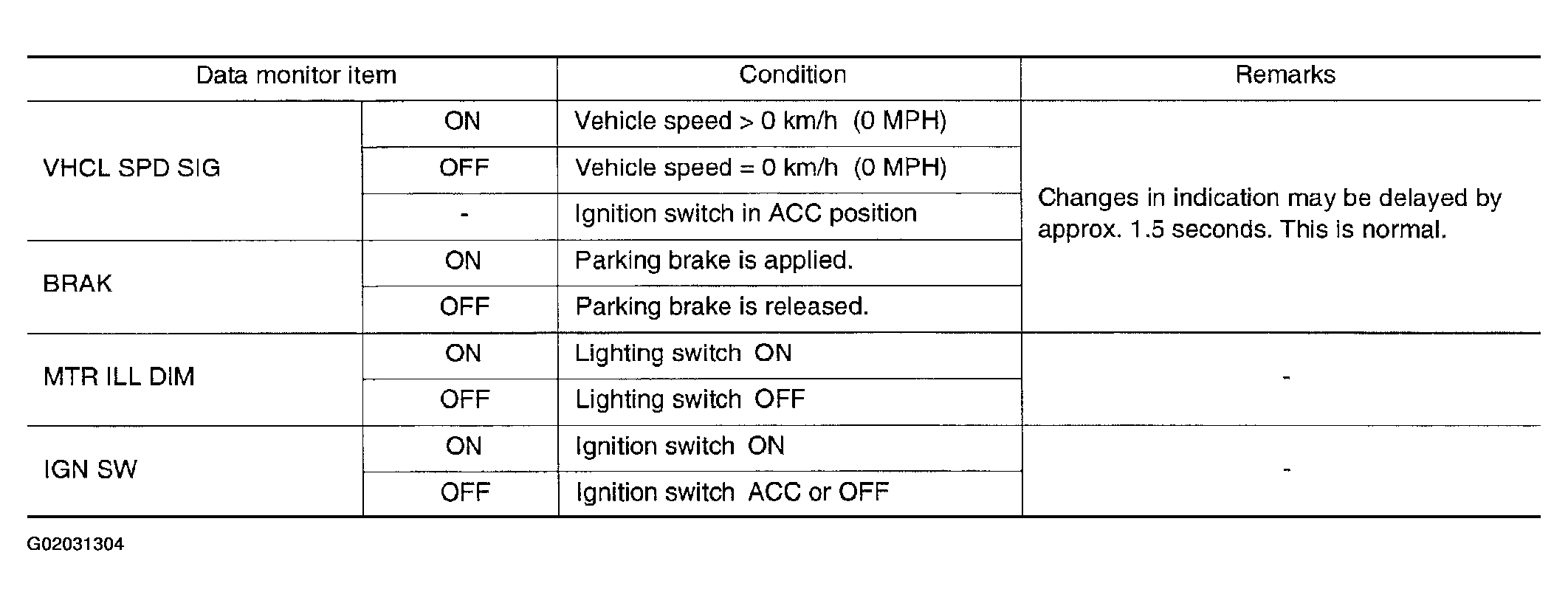

Fig 2: Data Monitor (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

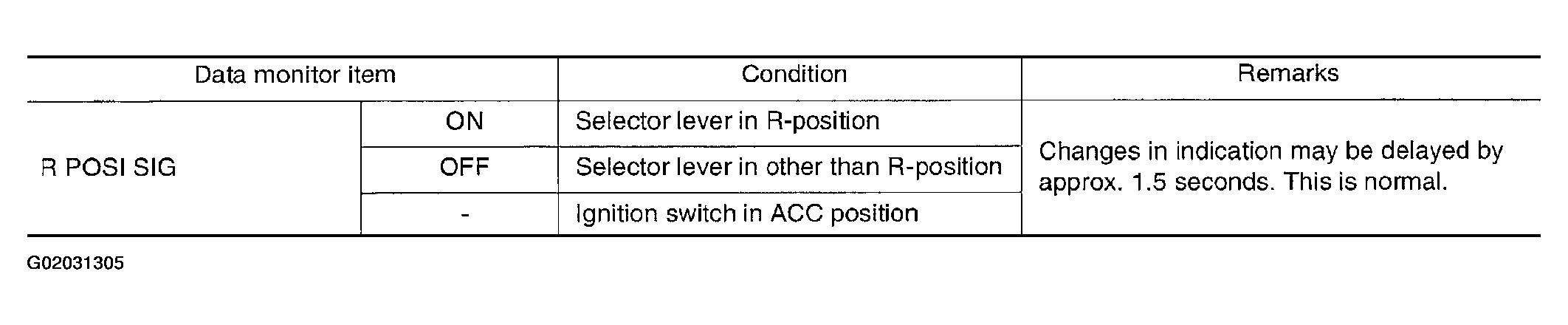

Fig 3: Data Monitor (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
