Home >> Infiniti >> 2002 >> Q45 >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Driver Information System >> Schematic >> Notes

Driver Information System: Schematic: Notes

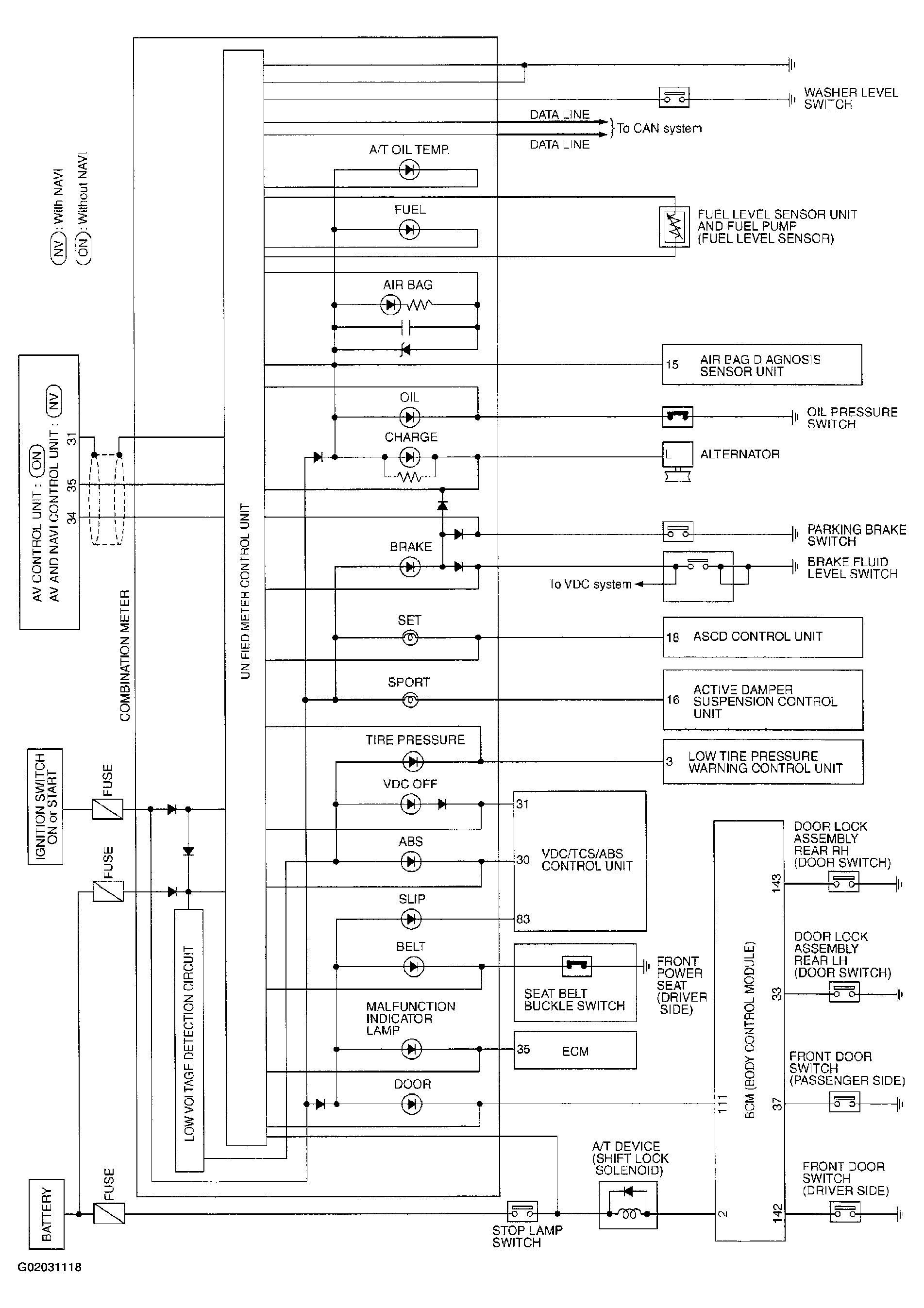

Fig 1: Schematic

G02031118

Courtesy of NISSAN MOTOR CO., U.S.A.
