Operation Procedure: Notes

1. Start the engine.
2. Turn the audio system off.

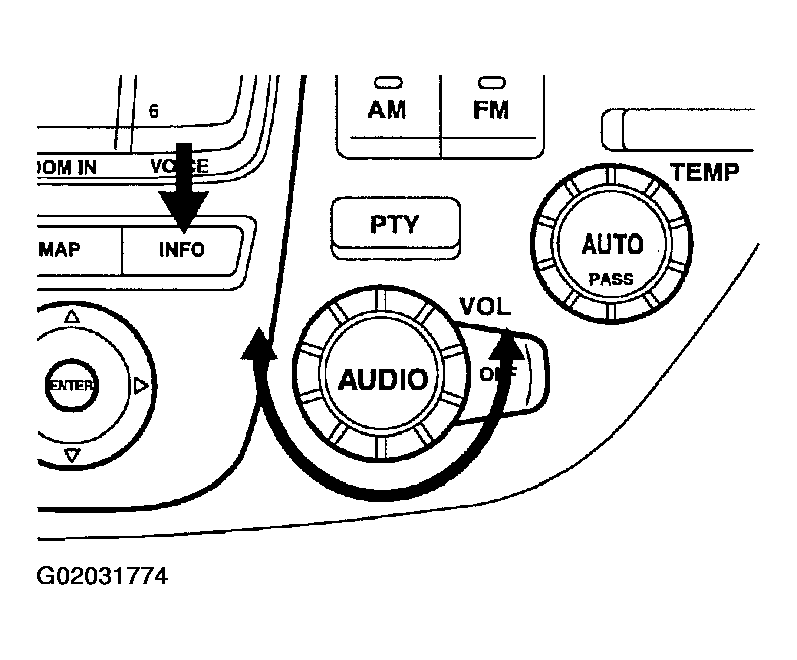

3. While pressing the "INFO" switch, turn the volume control dial clockwise or counterclockwise for 30 clicks or more. (When the self-diagnosis mode is started, a short beep will be heard.
   • Shifting from current screen to previous screen is performed by pressing "PREV" switch.
   Fig 1: CONFIRMATION/ADJUSTMENT Mode Operation Procedure (1 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. The initial trouble diagnosis screen will be shown, and items "SELF-DIAGNOSIS" and "CONFIRMATION/ADJUSTMENT" will become selective.
   Fig 2: CONFIRMATION/ADJUSTMENT Mode Operation Procedure (2 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. When "CONFIRMATION/ADJUSTMENT" is selected on the initial trouble diagnosis screen, the operation will enter the CONFIRMATION/ADJUSTMENT mode. In this mode, check and adjustment of each item will become possible.
6. Select each switch on "CONFIRMATION/ADJUSTMENT" screen to display the relevant diagnosis screen.
   Fig 3: CONFIRMATION/ADJUSTMENT Mode Operation Procedure (3 Of 3)

   Courtesy of NISSAN MOTOR CO., U.S.A.
