Low-Reverse Brake: Reassembly

Install driven plates, drive plates, dish plate and retaining plate into transaxle case. Install snap ring. Measure clearance between snap ring and retaining plate. See Fig 3. Replace retaining plate if clearance is not .067-.083" (1.70-2.10 mm), with allowable minimum limit of .130" (3.30 mm). Retaining plates are available in thicknesses ranging from .079" (2.00 mm) to .134" (3.40 mm) in increments of .008" (.20 mm).
Lubricate "D" rings with ATF, and install on low-reverse brake piston. Ensure "D" rings are installed in correct direction. See Fig 2. Ensure piston bracket is aligned with retainer bracket. See Fig 4.

Fig 1: Removing Low-Reverse Brake Piston

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Exploded View Of Low-Reverse Brake

Courtesy of NISSAN MOTOR CO., U.S.A.

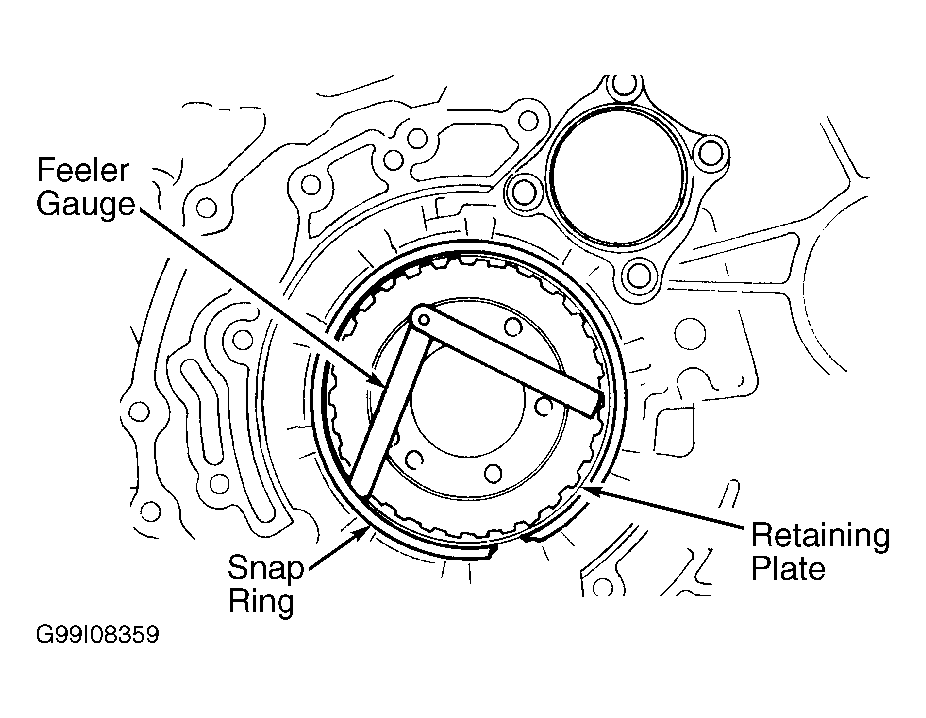

Fig 3: Measuring Low-Reverse Brake Clutch Clearance

Courtesy of NISSAN MOTOR CO., U.S.A.

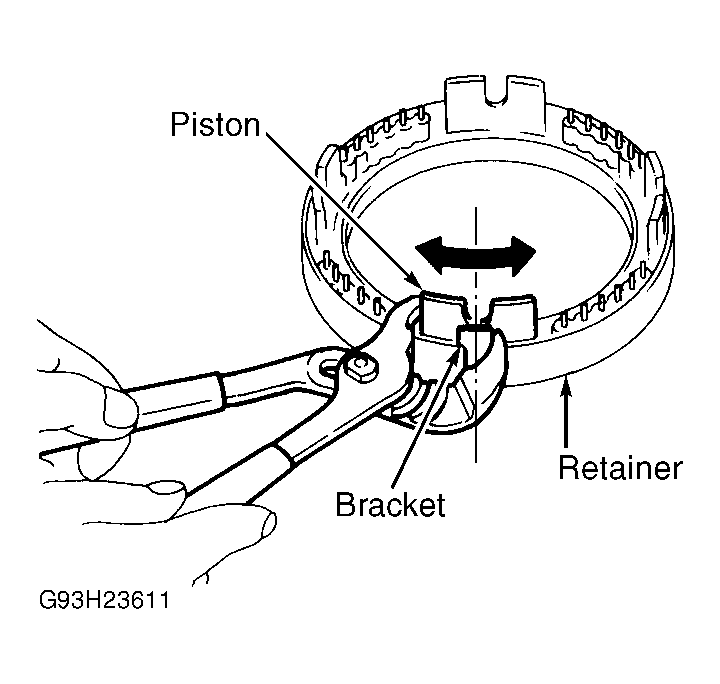

Fig 4: Aligning Low-Reverse Brake Piston With Spring Retainer

Courtesy of NISSAN MOTOR CO., U.S.A.
