Low-Reverse Brake: Disassembly

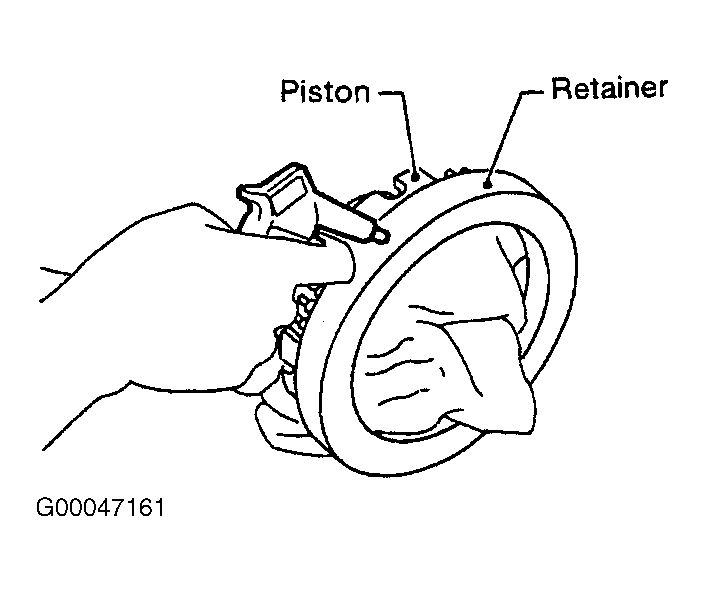

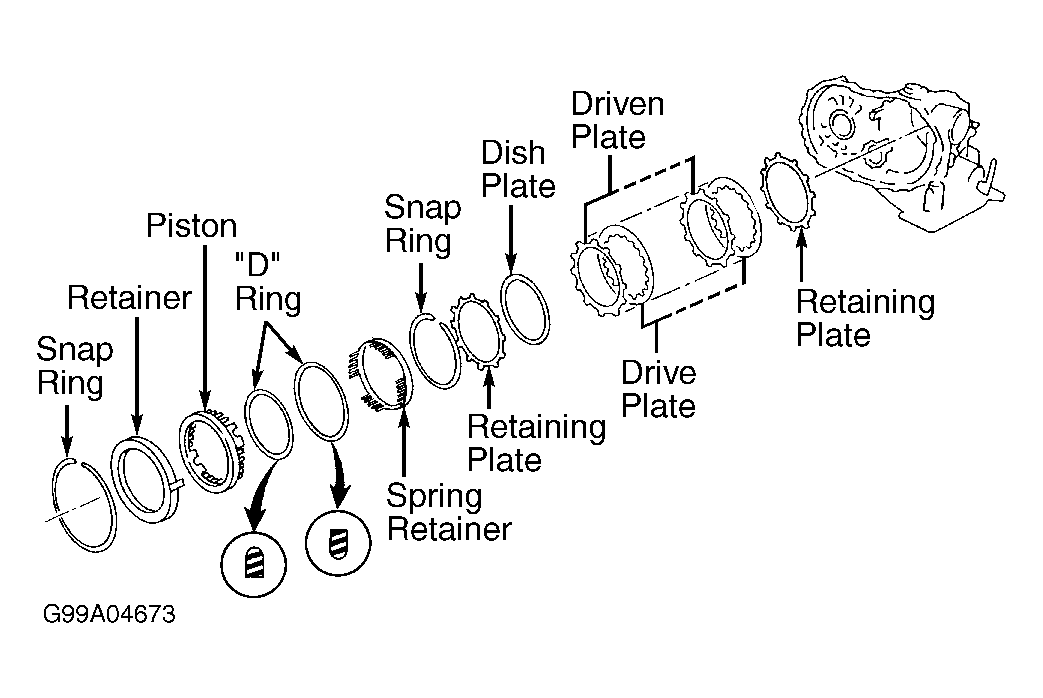

Position transaxle case to obtain access to low-reverse brake snap ring. Remove snap ring. Remove retaining plate, dish plate, drive plates and driven plates from transaxle case. See Figure. Record number of plates for reassembly reference. Apply compressed air to oil hole of piston retainer to remove piston. See Figure. Remove "D" rings from piston.
