Component Locations

NOTE: For engine compartment fuse and fusible link box and relay box locations, see Fig 1 .

Relay box No. 1 is located at passenger's side of engine compartment. For relay locations, see Fig 2 . For circuit wiring diagram, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
Relay box No. 2 is located at driver's side of engine compartment. For relay locations, see Fig 3 . For circuit wiring diagram, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.
Fuse and fusible link box is located at driver's side front of engine compartment. For component identification, see Fig 4 -Fig 6 . For circuit wiring diagram, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS article.

Fig 1: Locating Engine Compartment Fuse And Fusible Link Box & Relay Boxes

G00144931

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Relay Box No. 1 Components

G00074808

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Locating Relay Box No. 2 Components

G00074809

Courtesy of NISSAN MOTOR CO., U.S.A.

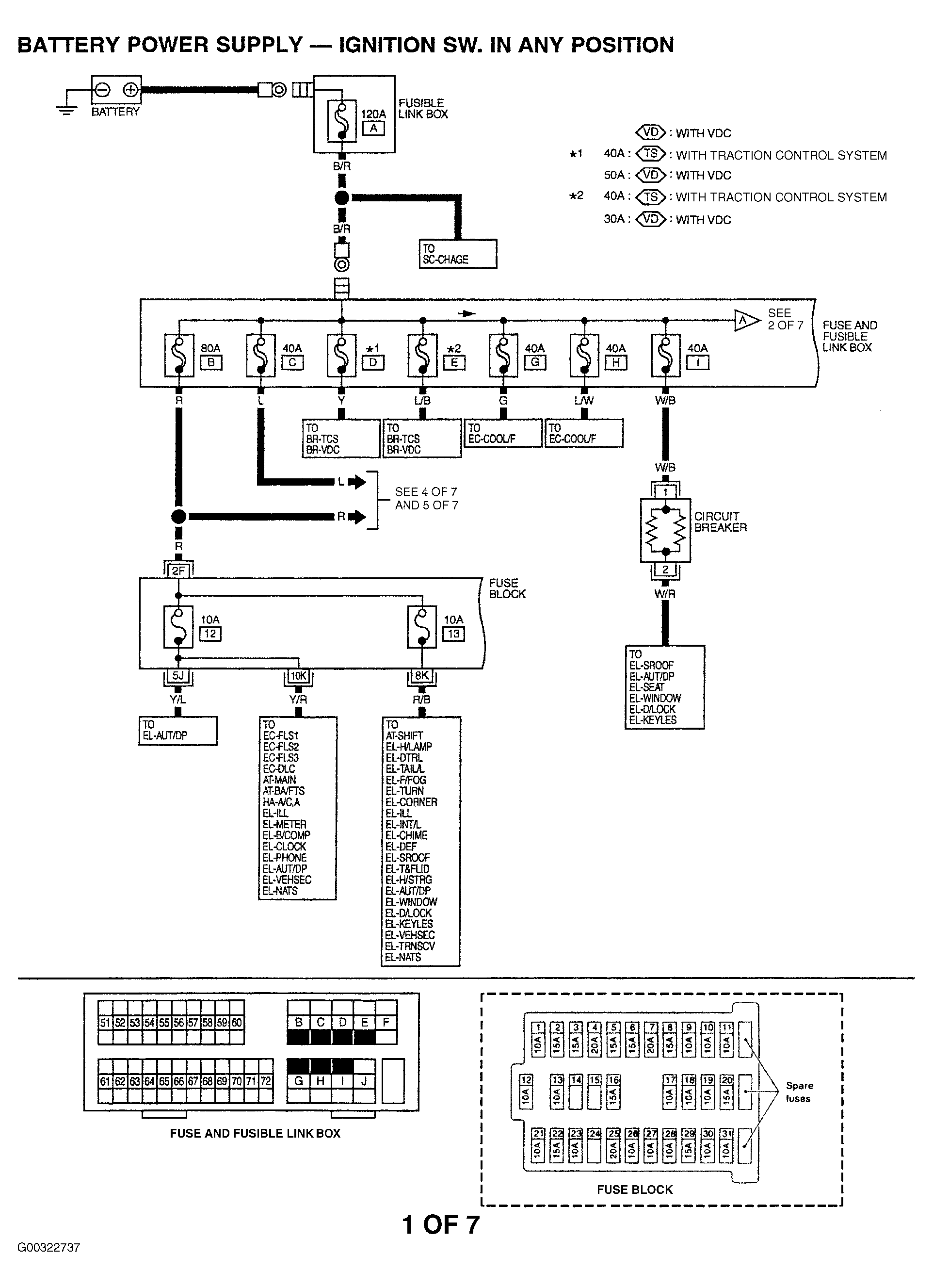

Fig 4: Identifying Circuit Protection Components (1 Of 7)

G00322737

Courtesy of NISSAN MOTOR CO., U.S.A.

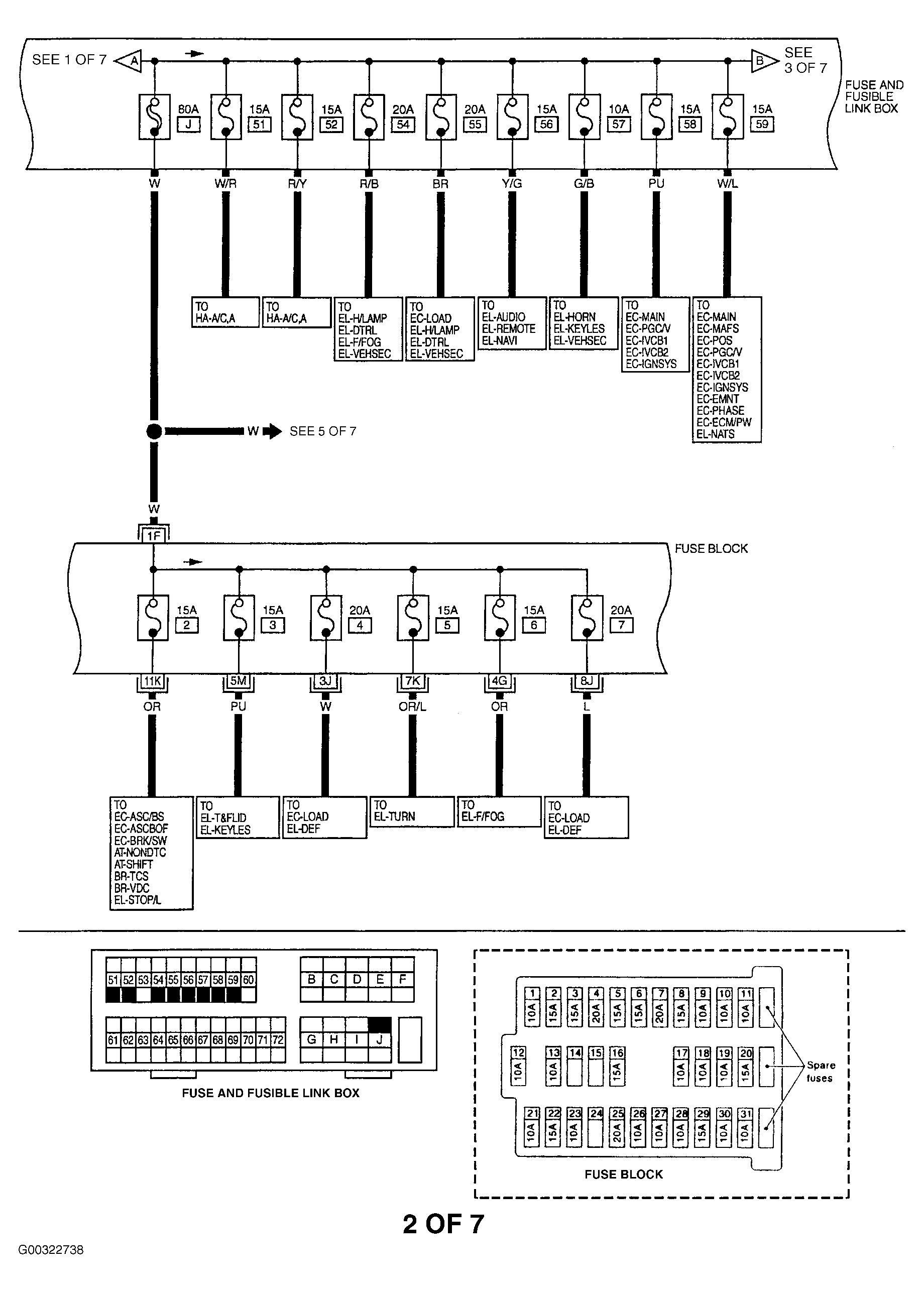

Fig 5: Identifying Circuit Protection Components (2 Of 7)

G00322738

Courtesy of NISSAN MOTOR CO., U.S.A.

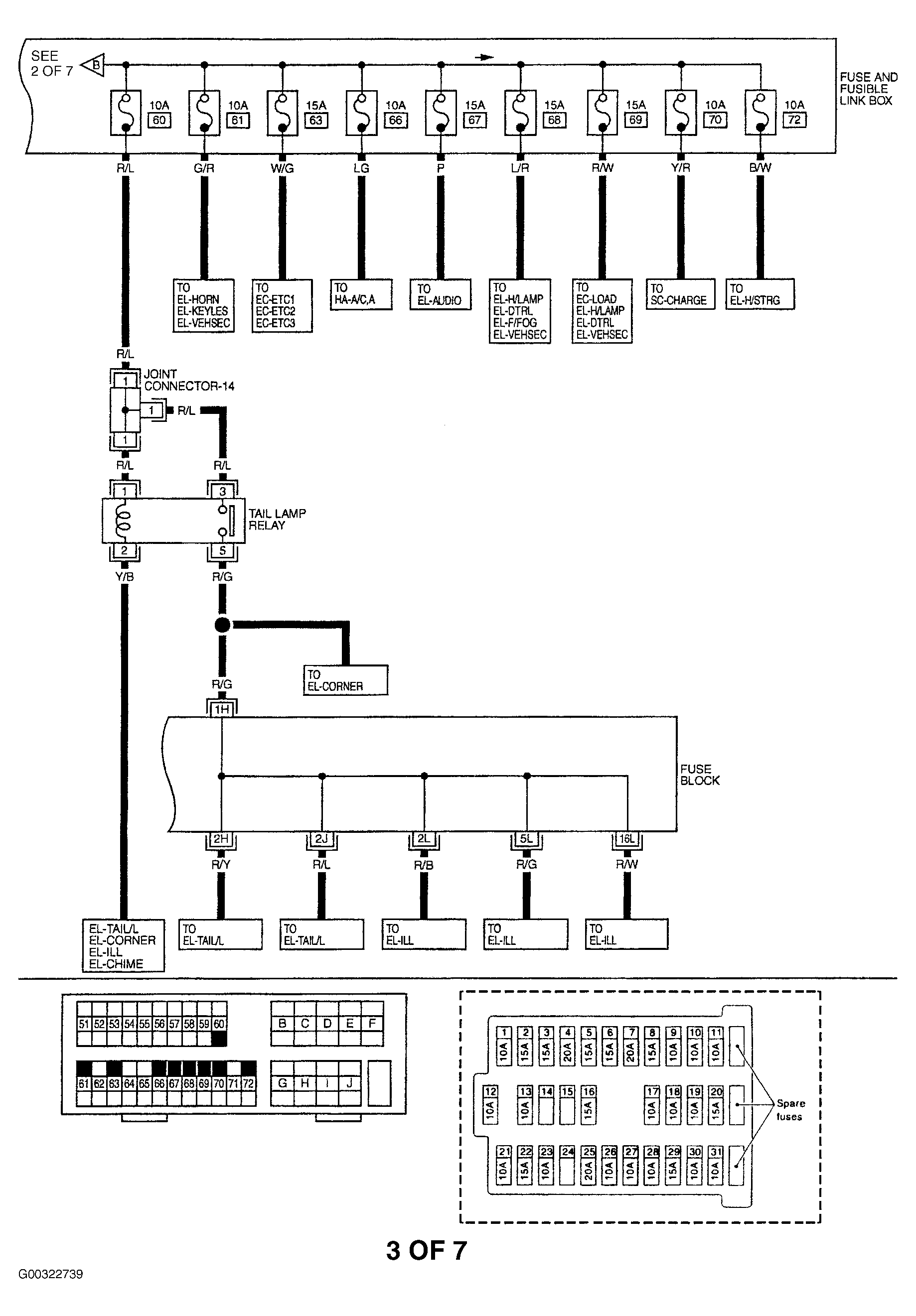

Fig 6: Identifying Circuit Protection Components (3 Of 7)

G00322739

Courtesy of NISSAN MOTOR CO., U.S.A.

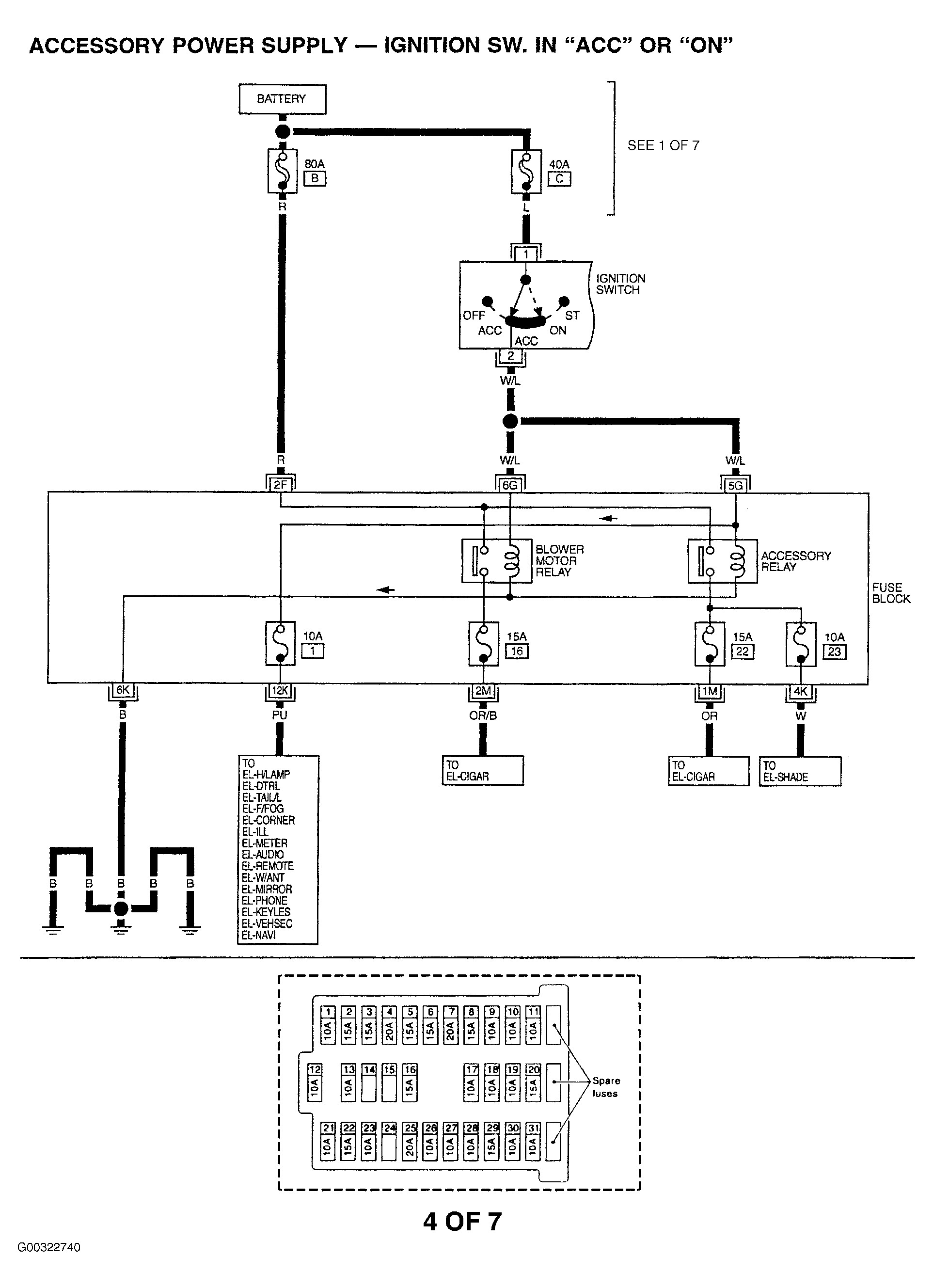

Fig 7: Identifying Circuit Protection Components (4 Of 7)

G00322740

Courtesy of NISSAN MOTOR CO., U.S.A.

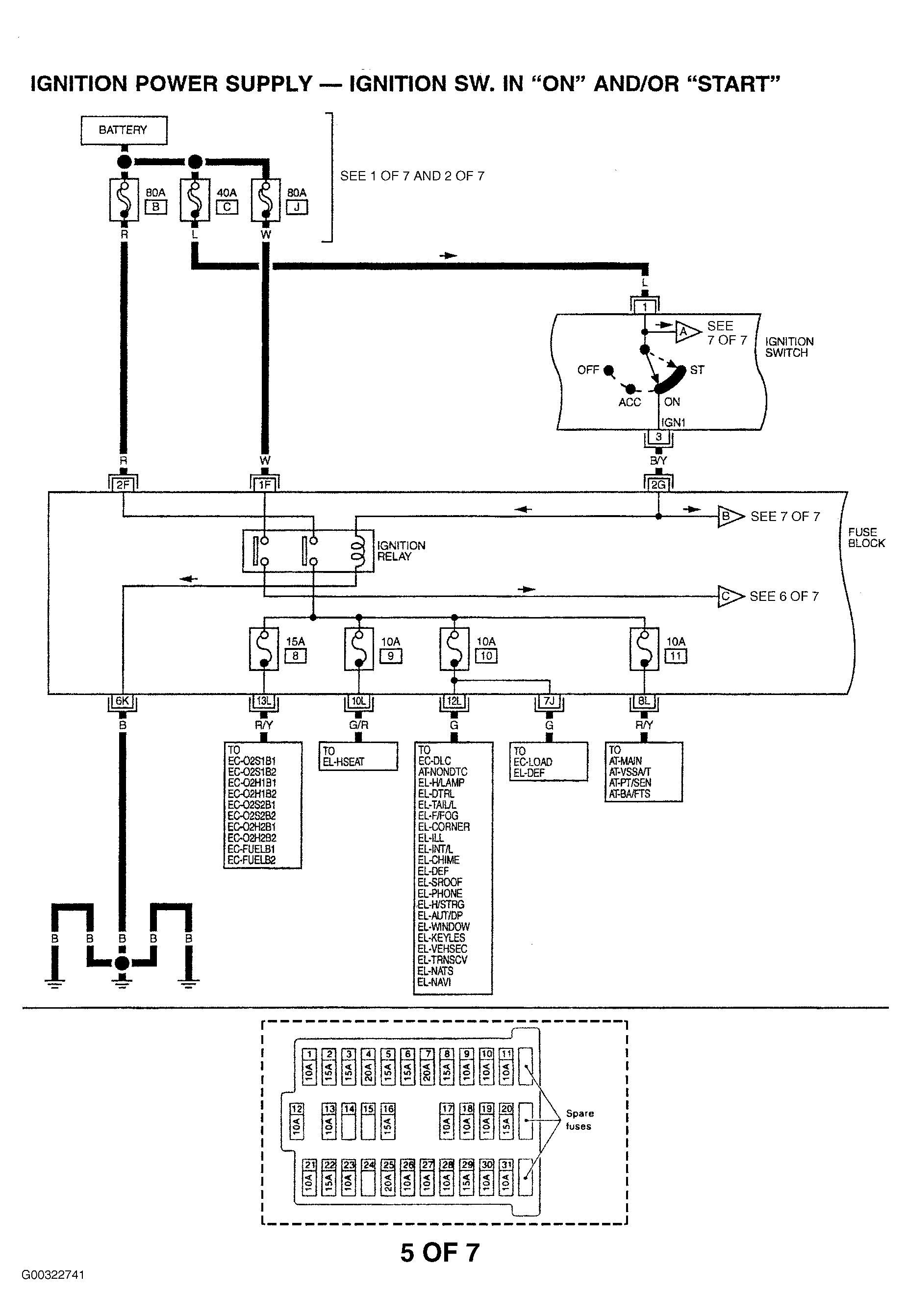

Fig 8: Identifying Circuit Protection Components (5 Of 7)

G00322741

Courtesy of NISSAN MOTOR CO., U.S.A.

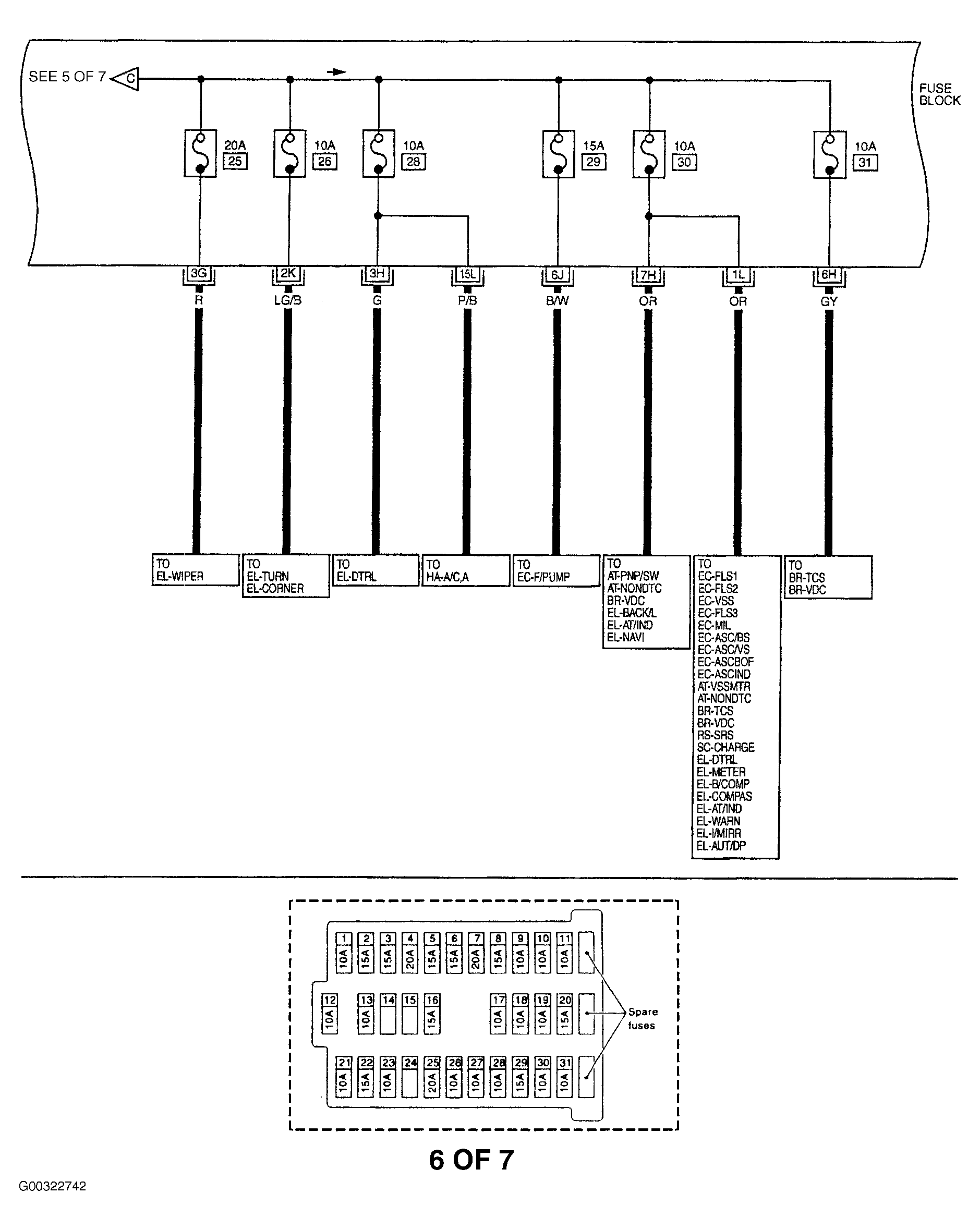

Fig 9: Identifying Circuit Protection Components (6 Of 7)

G00322742

Courtesy of NISSAN MOTOR CO., U.S.A.

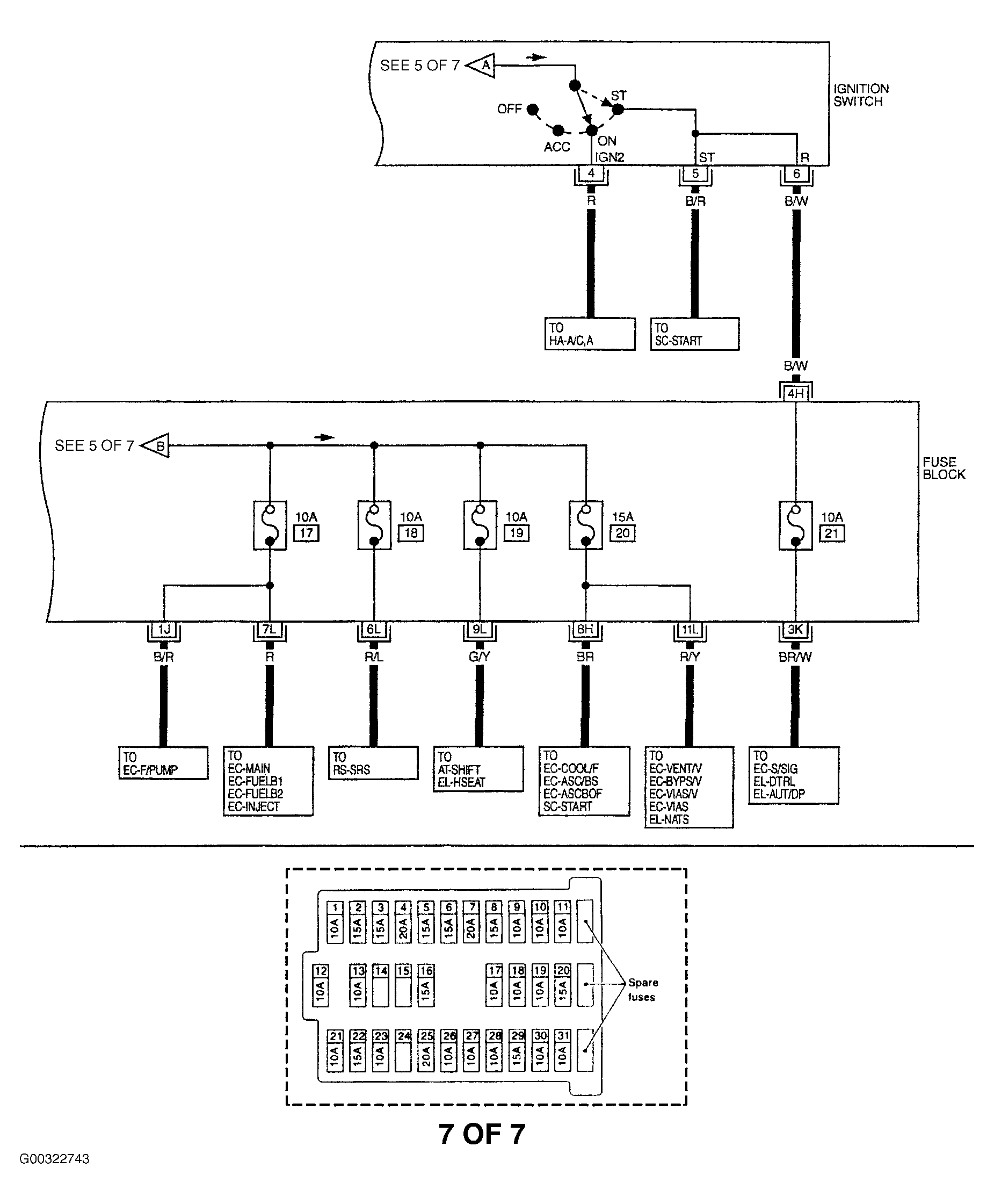

Fig 10: Identifying Circuit Protection Components (7 Of 7)

G00322743

Courtesy of NISSAN MOTOR CO., U.S.A.
