Wiring Diagrams

For charging system wiring diagram, see Fig 1 .

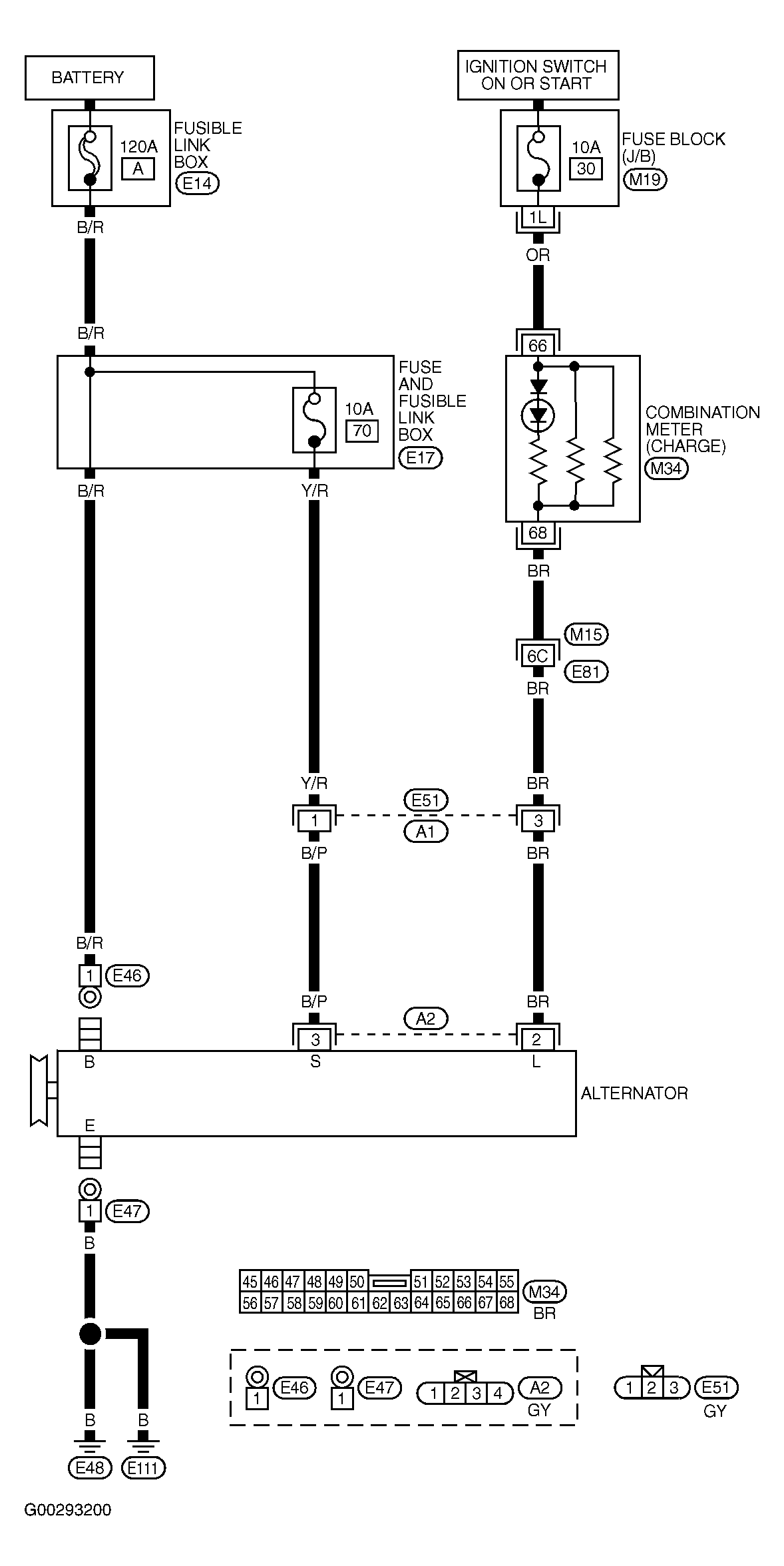

Fig 1: Charging System Wiring Diagram
G00293200Courtesy of NISSAN MOTOR CO., U.S.A.
