Diagnostic Procedure No. 7
>>
Engine System
Engine System
Use illustration to help diagnosis Engine System. See
Fig 1
.

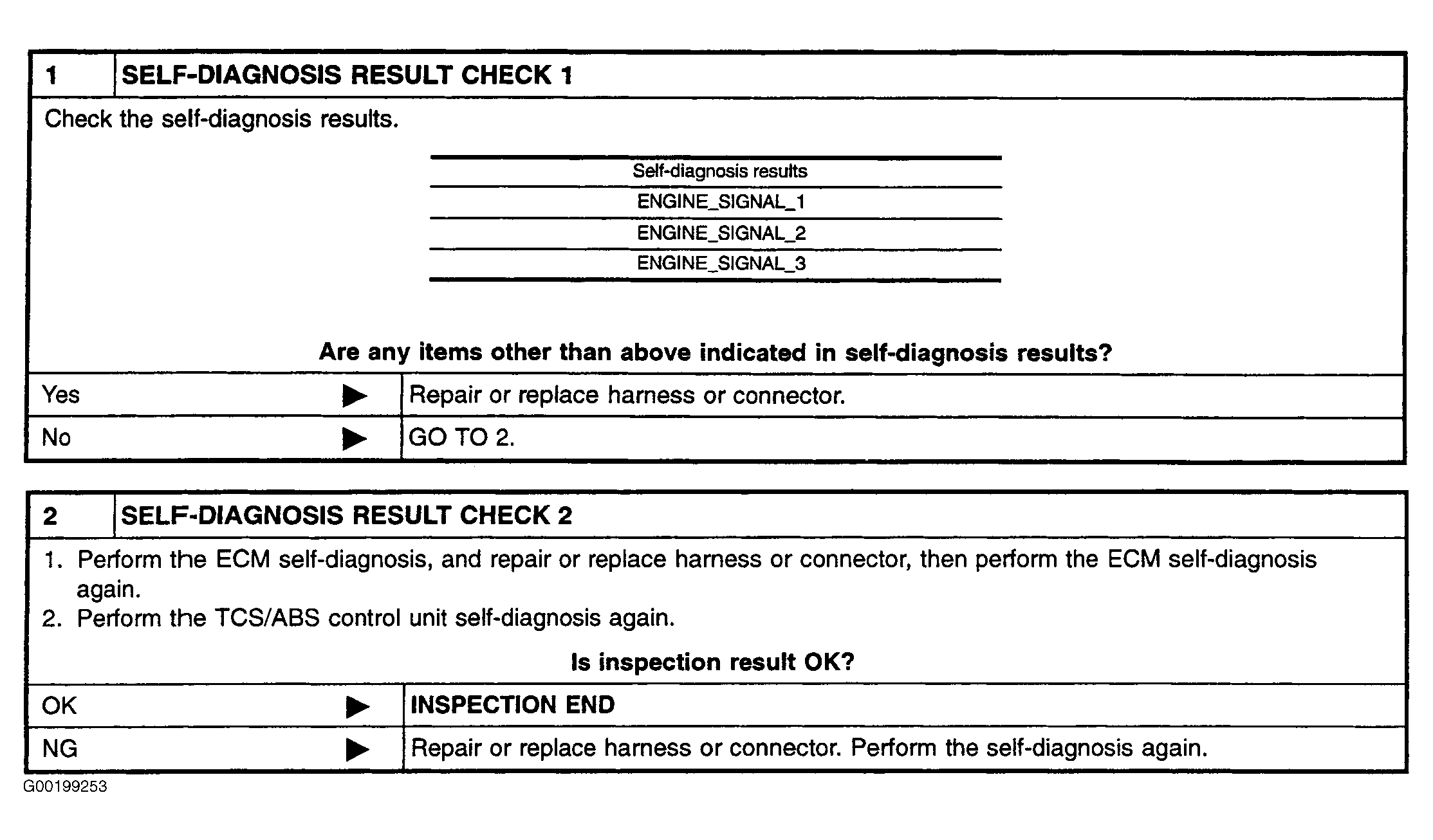

Fig 1: Diagnosing Engine System With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
