VDC/TCS/Abs Control Unit

  1. Remove the driver's seat. See Fig 1.
  2. Remove the VDC/TCS/ABS control unit.
  3. To install, reverse order of removal.

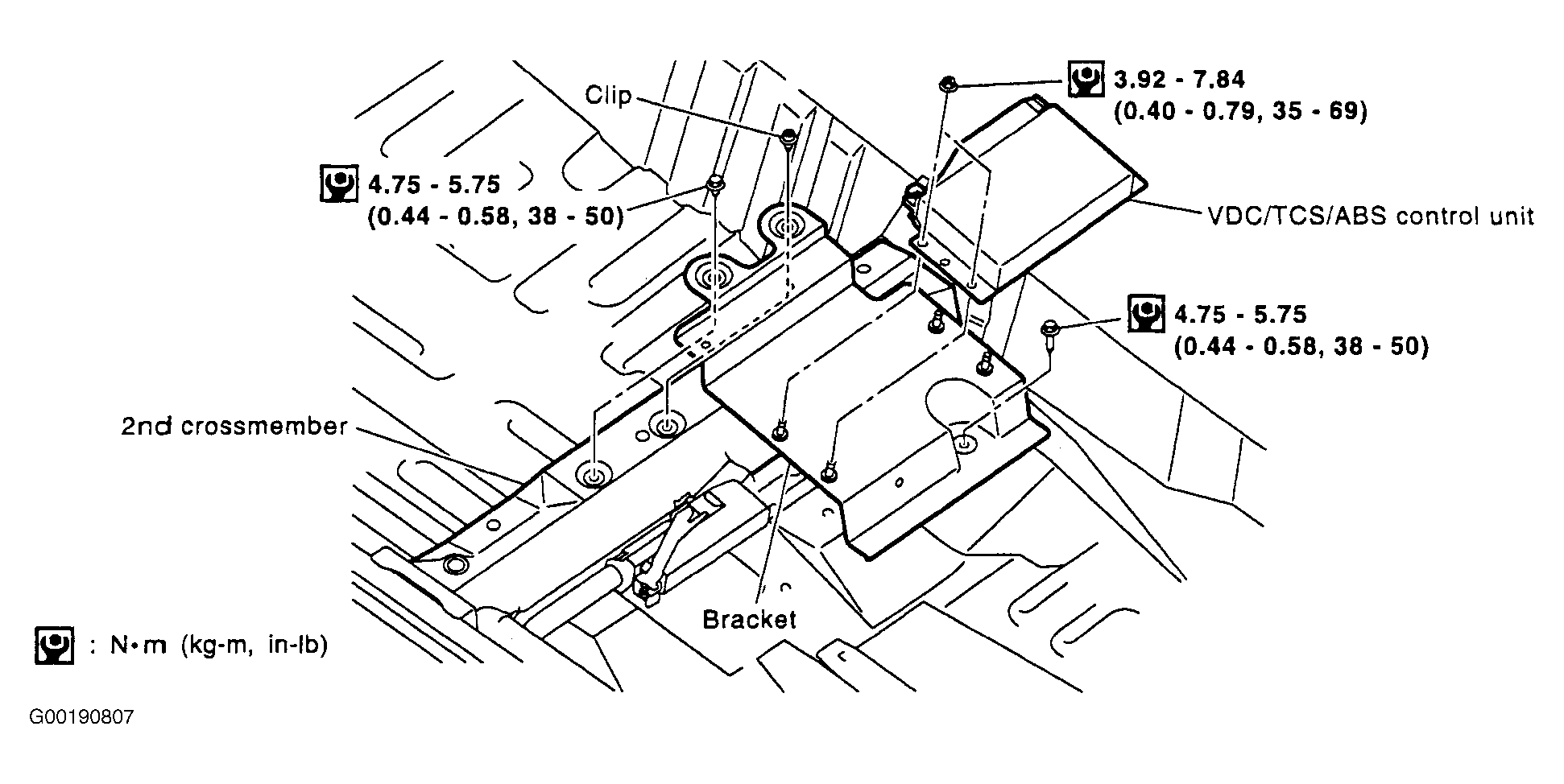

Fig 1: Identifying VDC/TCS/ABS Control Unit Location
G00190807Courtesy of NISSAN MOTOR CO., U.S.A.
