VDC Off Switch

Disconnect the VDC OFF switch connector. Check continuity between terminals No. 4 and 5. Pressing the switch will make continuity, and releasing it will stop continuity. See Fig 1.

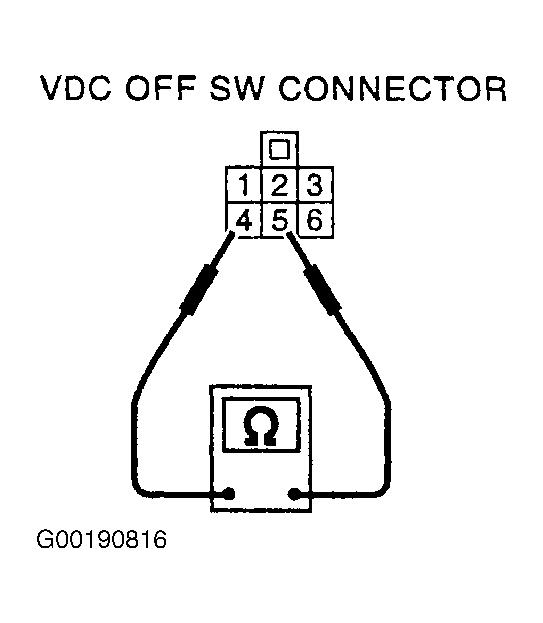

Fig 1: Testing VDC OFF Switch
G00190816Courtesy of NISSAN MOTOR CO., U.S.A.
