Component Locations

COMPONENT LOCATIONS

Component Location
ABS Actuator Side of Master Cylinder
ABS Warning Lamp Instrument Panel
ECM Passenger Side Lower Instrument Panel.
Fuse Block Behind Driver's Lower Instrument Panel
Fusible Links Engine Compartment
Slip Indicator Lamp Instrument Panel
Steering Angle Sensor Behind Steering Wheel
Transmission Control Module Under Center Console
Throttle Motor Engine Compartment On Throttle Body
VDC/TCS/ABS Control Unit Under Driver's Seat
VDC/TCS/ABS Indicator Lamp Instrument Panel
VDC OFF Switch Instrument Lower Driver Panel
Wheel Sensor Front Of Wheel Knuckle
Yaw Sensor/Side G Sensor Under Center Console

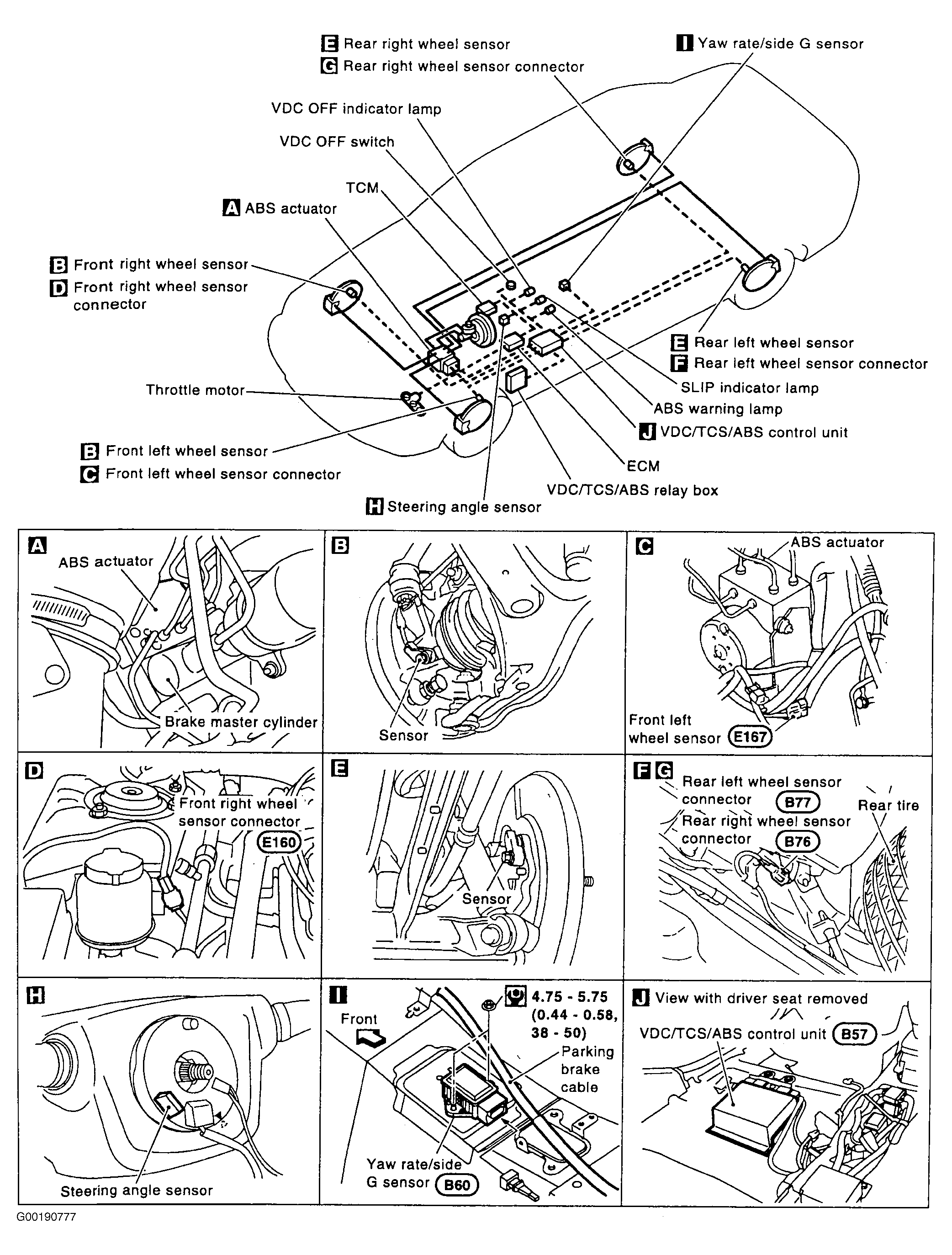

Fig 1: Identifying Component Parts & Harness Location
G00190777Courtesy of NISSAN MOTOR CO., U.S.A.

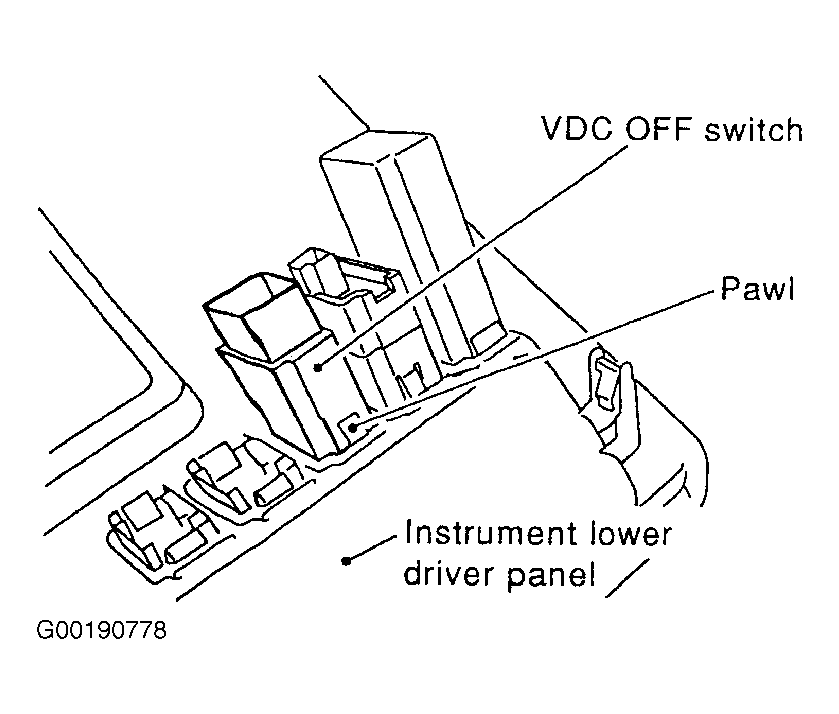

Fig 2: Identifying VDC OFF Switch Location
G00190778Courtesy of NISSAN MOTOR CO., U.S.A.

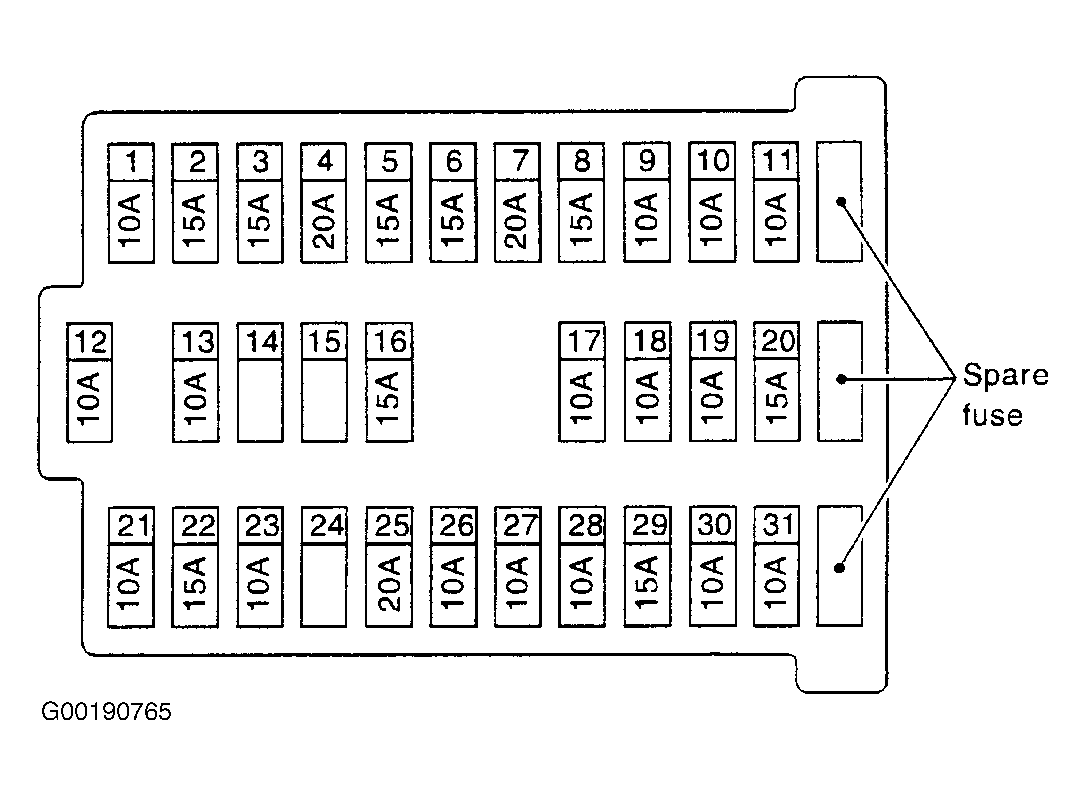

Fig 3: Identifying Fuse Block Numbering Scheme "1" Through "31"
G00190765Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Fuse & Fusible Link Numbering Scheme: "51" Through "72" & Links "A" Through "J"
G00190766Courtesy of NISSAN MOTOR CO., U.S.A.
