Notes
Front Door Lock: Notes

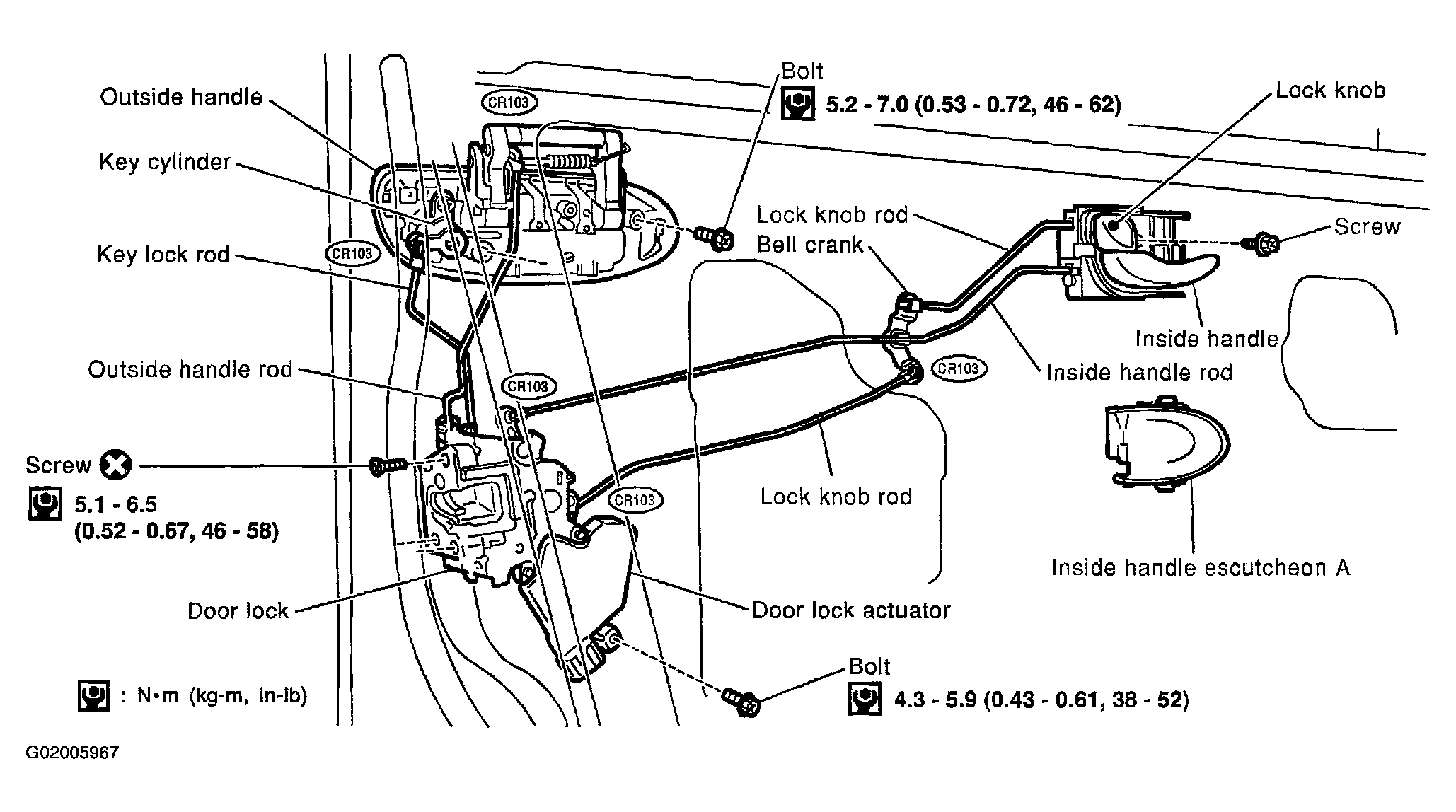

Fig 1: Exploded View Of Front Door Lock System
Courtesy of NISSAN MOTOR CO., U.S.A.
For removal of front door trim, refer to "
DOOR TRIM
".
Remove sealing screen.
