Component Locations

COMPONENT LOCATIONS

Component	Location
ABS/TCS	At Left Rear Corner Of Engine Compartment, See Fig 1
ECM	Behind Instrument Lower Cover, See Fig 2
TCM	Behind Lower Center Of Dash, See Fig 3 and Fig 4
VDC/ABS/TCS	Under Drivers Seat, See Fig 5

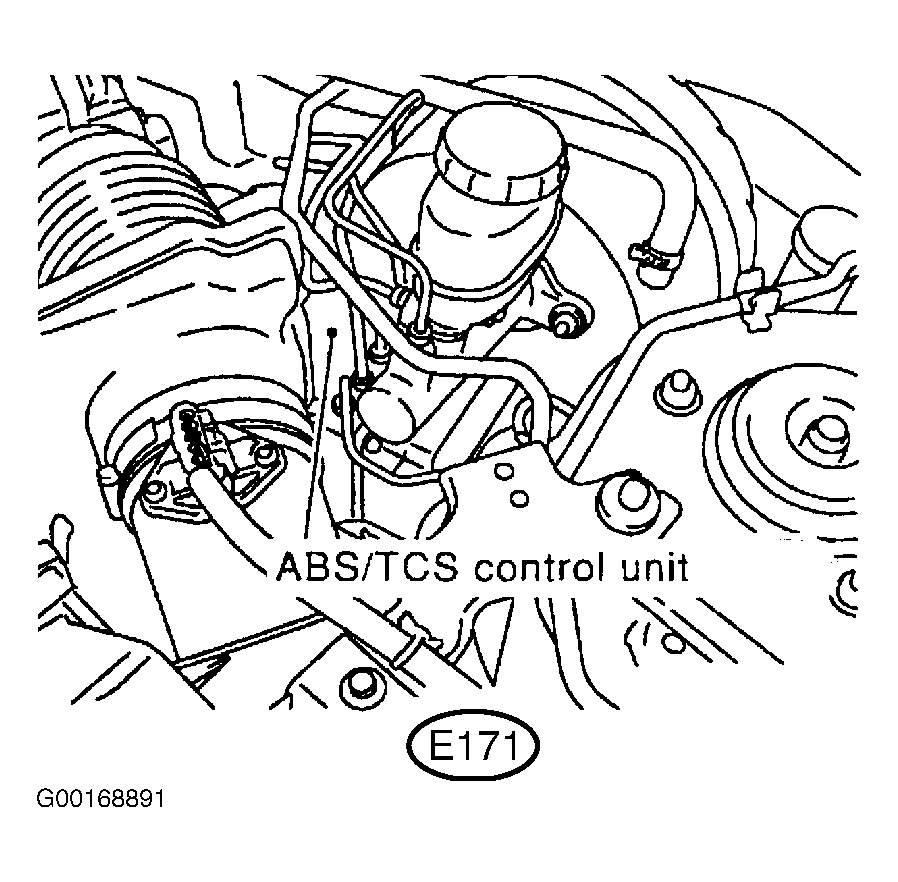

Fig 1: Locating ABS/TCS Control Unit

G00168891

Courtesy of NISSAN MOTOR CO., U.S.A.

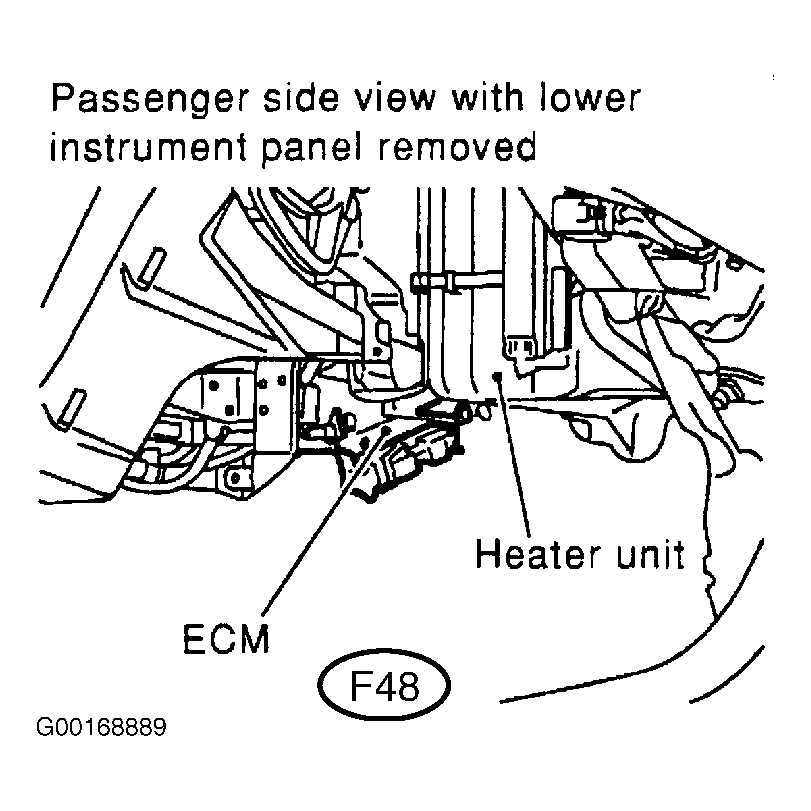

Fig 2: Locating ECM

G00168889

Courtesy of NISSAN MOTOR CO., U.S.A.

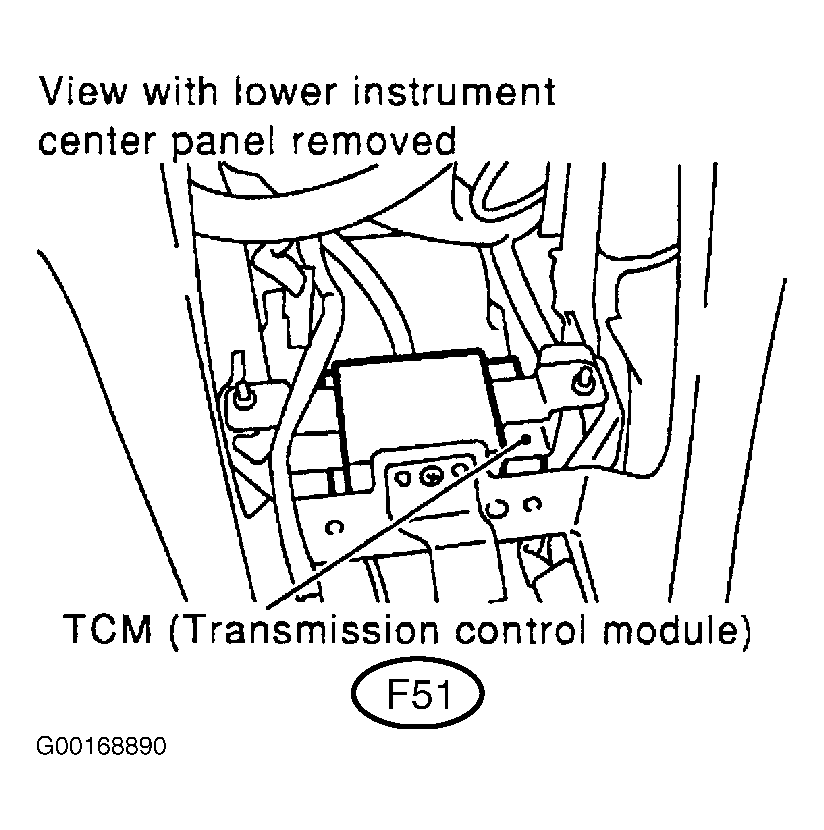

Fig 3: Locating TCM (Maxima)

G00168890

Courtesy of NISSAN MOTOR CO., U.S.A.

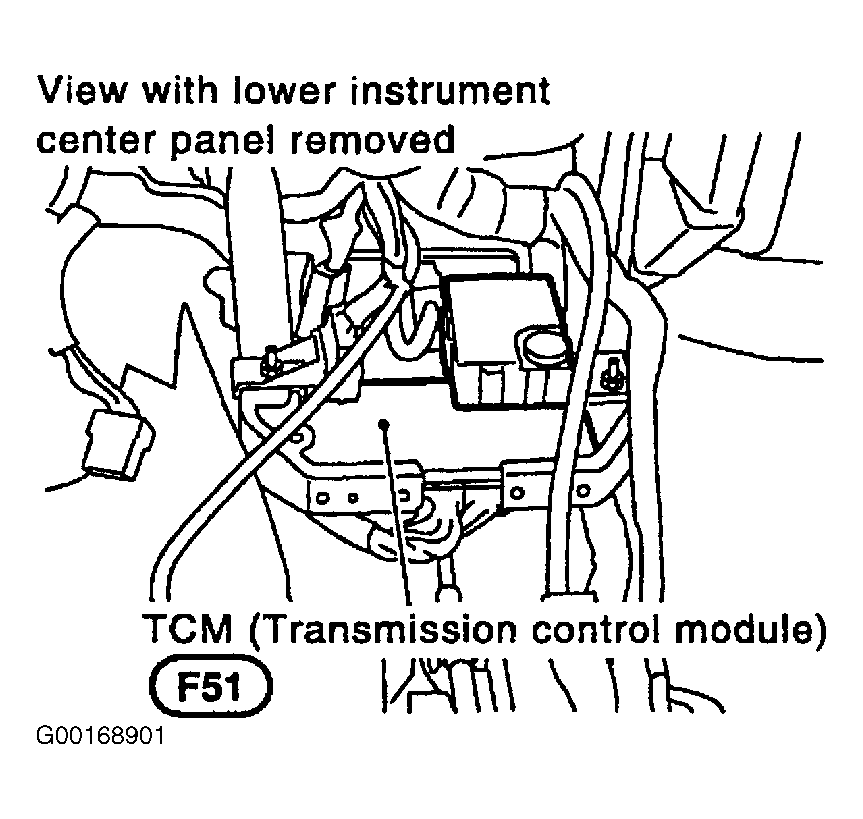

Fig 4: Locating TCM (I35)

G00168901

Courtesy of NISSAN MOTOR CO., U.S.A.

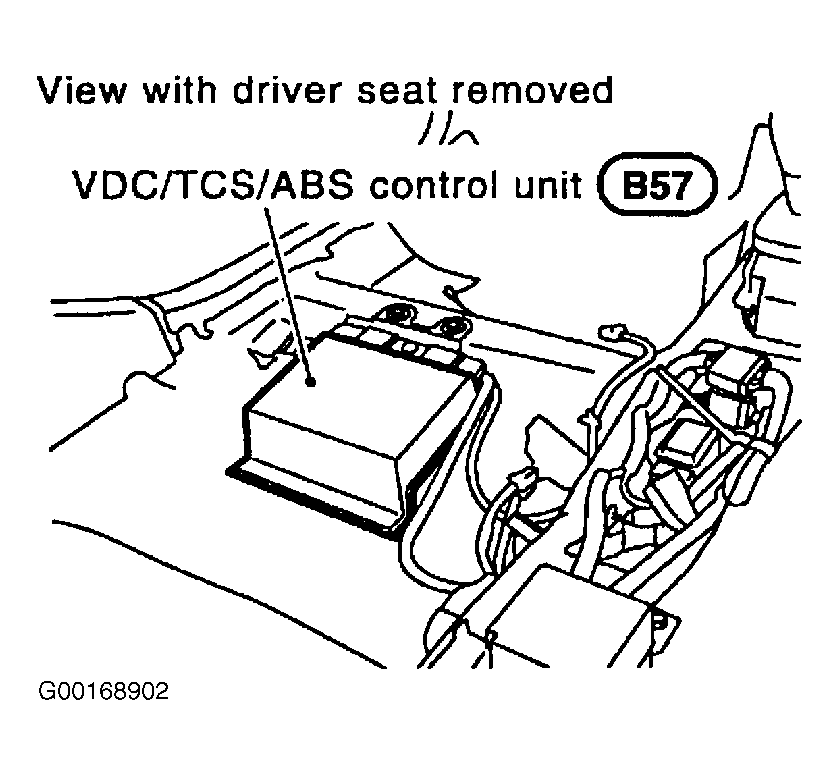

Fig 5: Locating VDC/ABS/TCS Control Unit (A/T With VDC/TCS, I35)

G00168902

Courtesy of NISSAN MOTOR CO., U.S.A.
