Measurement Points

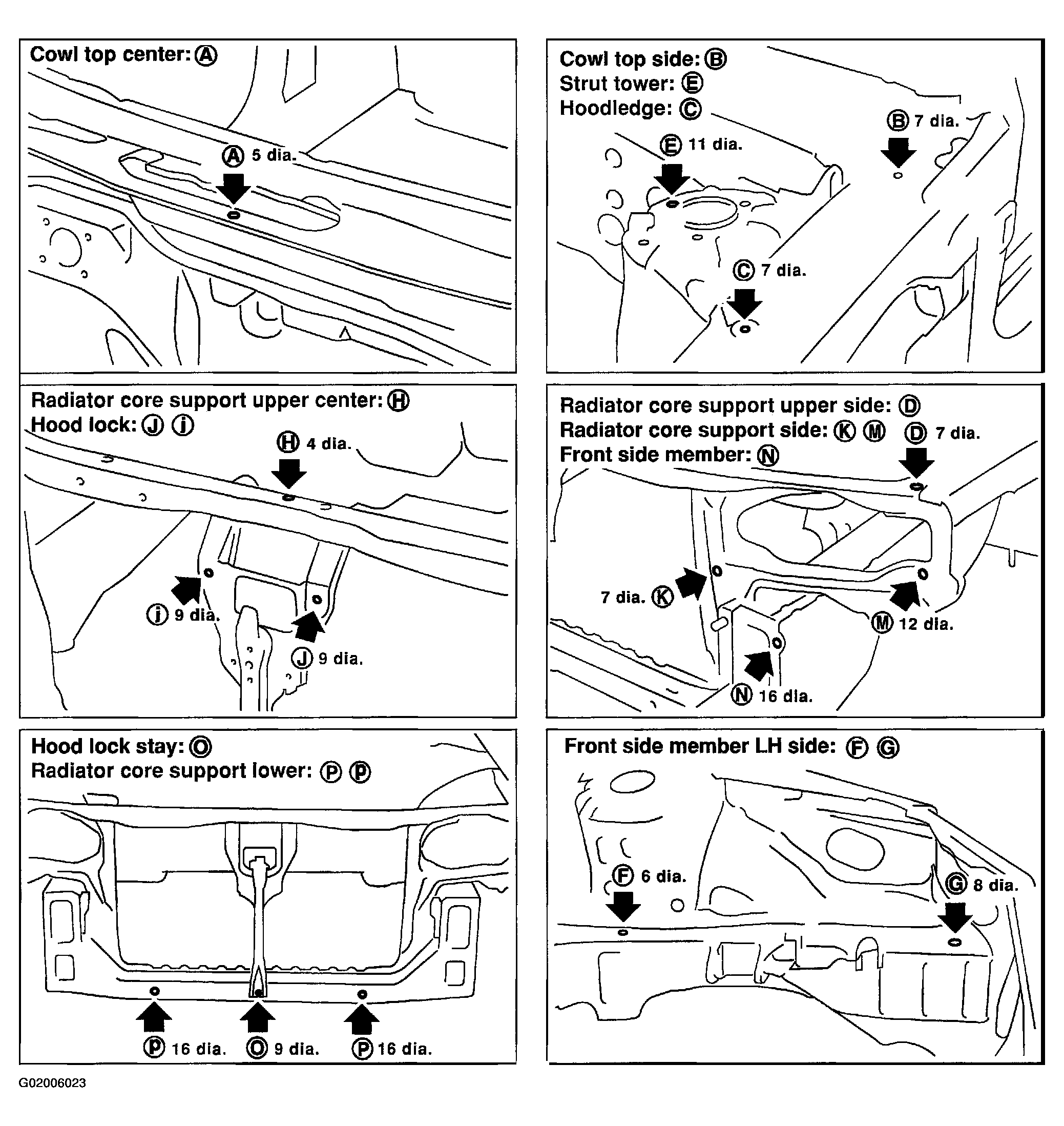

Fig 1: Identifying Measuring Points Of Engine Compartment
G02006023Courtesy of NISSAN MOTOR CO., U.S.A.
