Operating Cylinder: Components: Removal

  1. Drain brake fluid.
    CAUTION: Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  2. Remove union bolt and clutch hose from operating cylinder.
  3. Remove operating cylinder mounting bolts, and remove cylinder from vehicle.

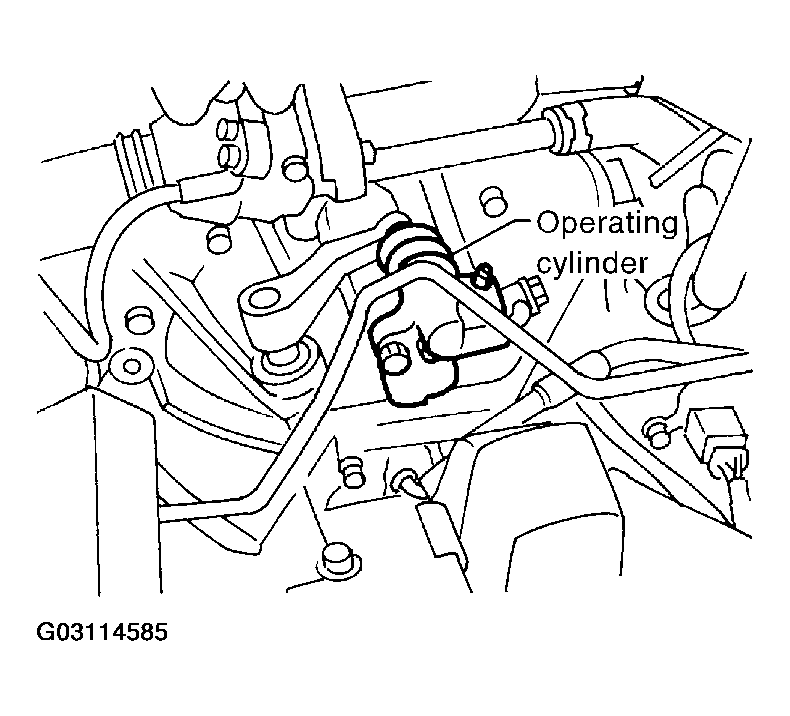

    Fig 1: Removing Operating Cylinder From Vehicle
    G03114585Courtesy of NISSAN MOTOR CO., U.S.A.
