Home >> Infiniti >> 2002 >> G20 Standard, RS5F70W >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch Release Mechanism >> Components >> Notes

Clutch Release Mechanism: Components: Notes

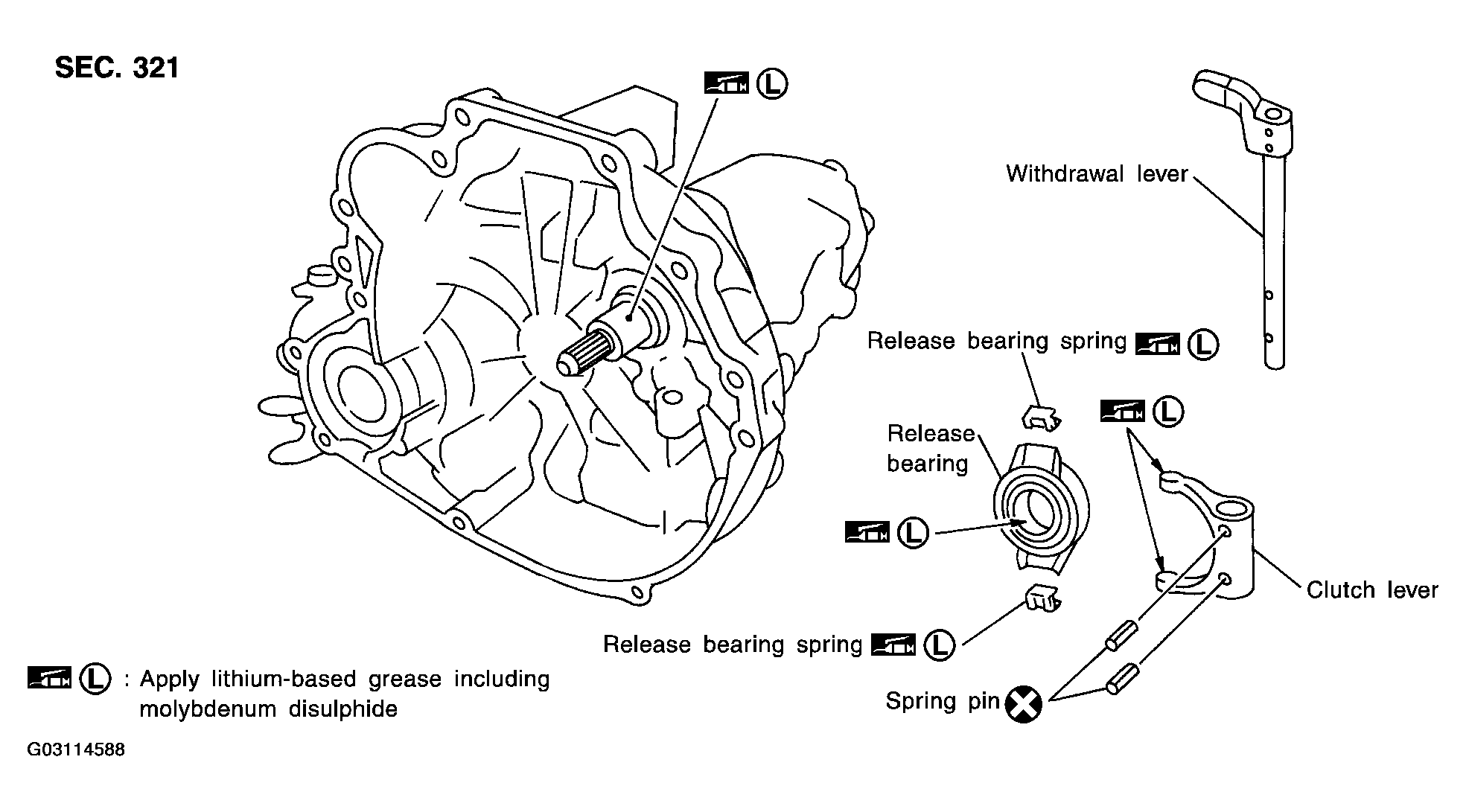

Fig 1: Exploded View Of Clutch Release Mechanism

G03114588

Courtesy of NISSAN MOTOR CO., U.S.A.
