Home >> Infiniti >> 2002 >> G20 Standard, RS5F70W >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch Damper >> Components >> Notes

Clutch Damper: Components: Notes

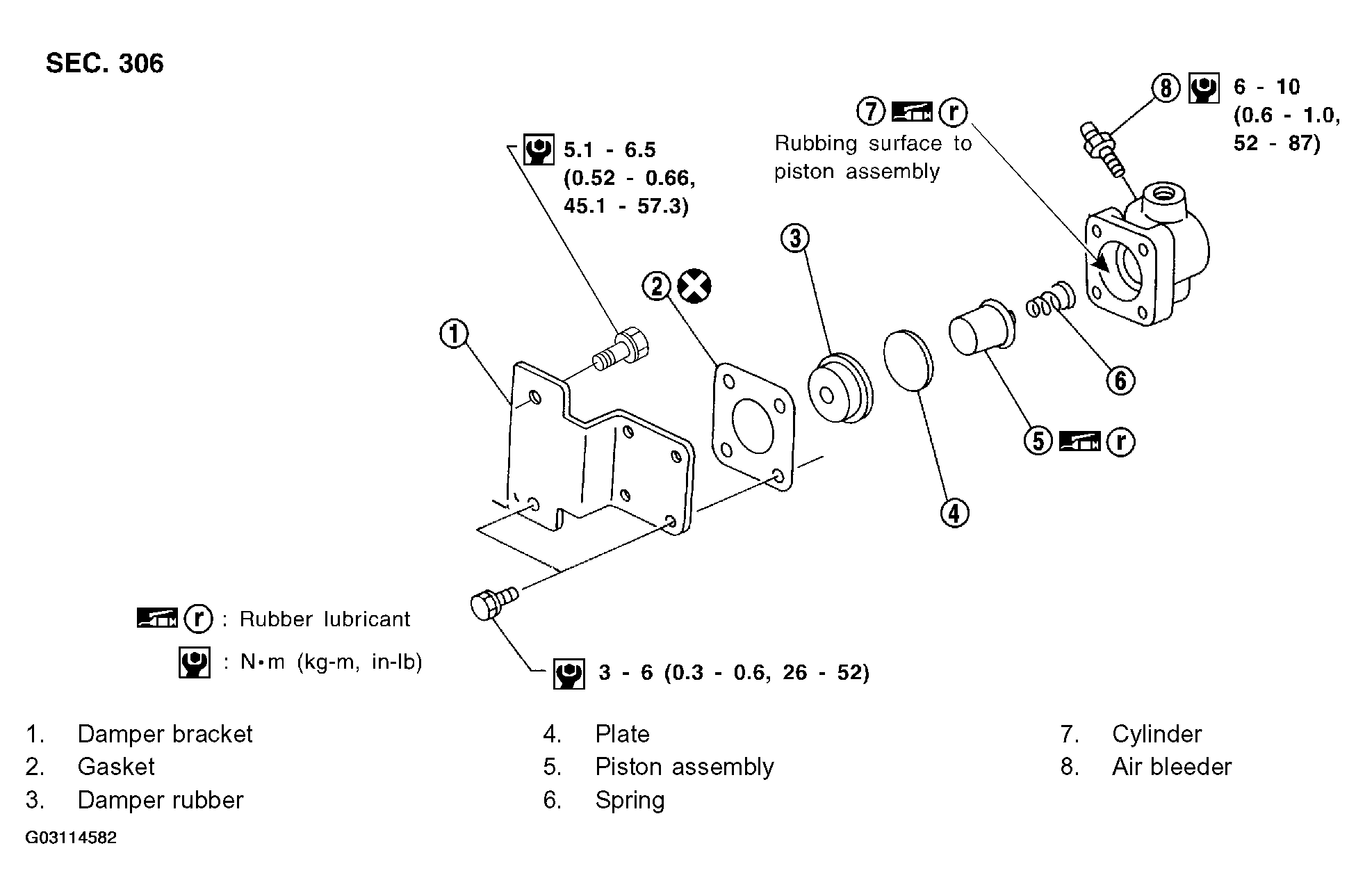

Fig 1: Exploded View Of Clutch Damper Components & Torque Specifications

G03114582

Courtesy of NISSAN MOTOR CO., U.S.A.
