Home >> Infiniti >> 2002 >> G20 Standard, RS5F70W >> Repair and Diagnosis (Single Page) >> Transmission >> Clutch >> Operating Cylinder >> Components >> Notes

Operating Cylinder: Components: Notes

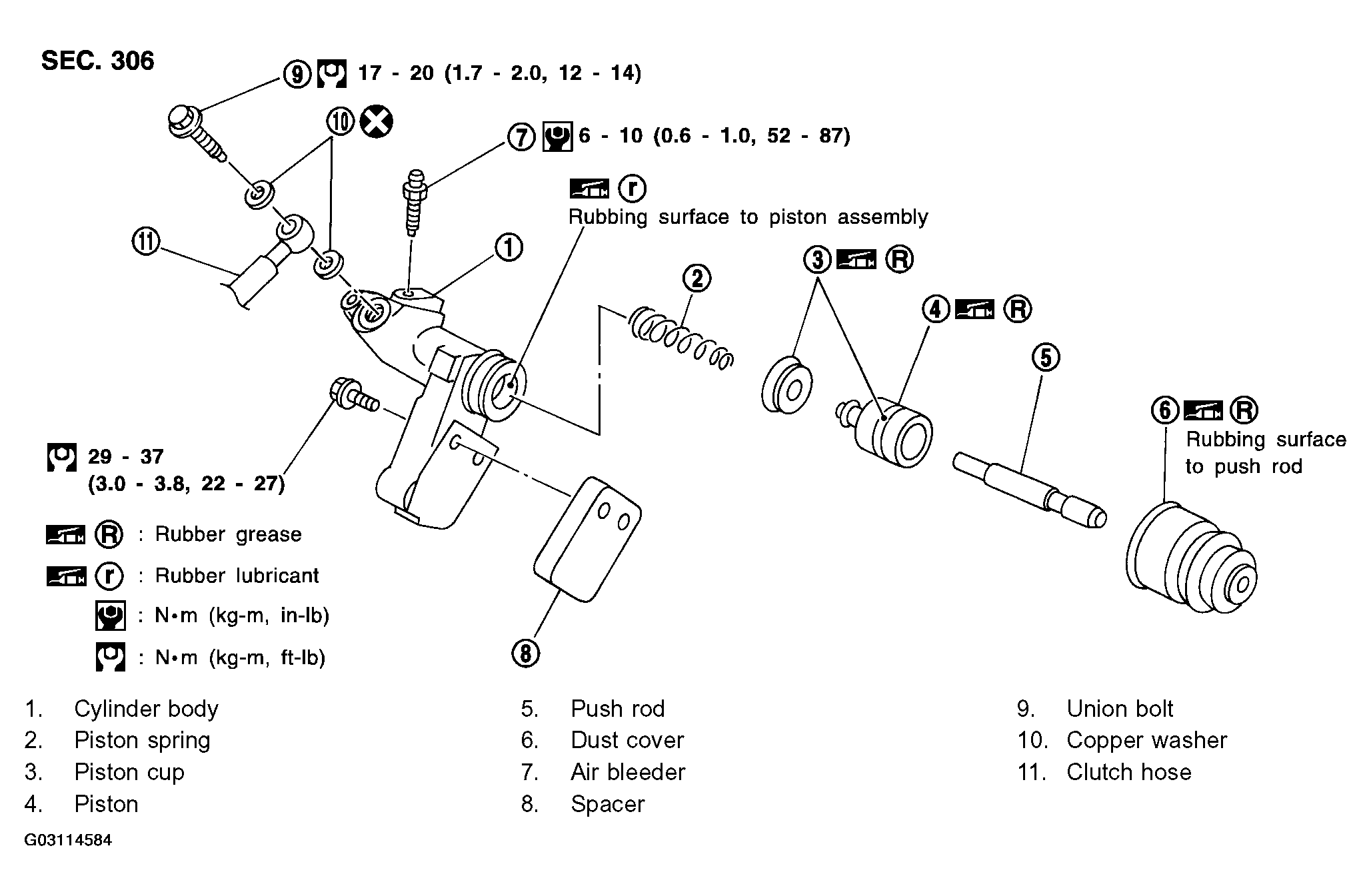

Fig 1: Exploded View Of Operating Cylinder Components & Torque Specifications

G03114584

Courtesy of NISSAN MOTOR CO., U.S.A.
