Wiring Diagrams

NOTE: For charging system wiring diagram, see Fig 1 .

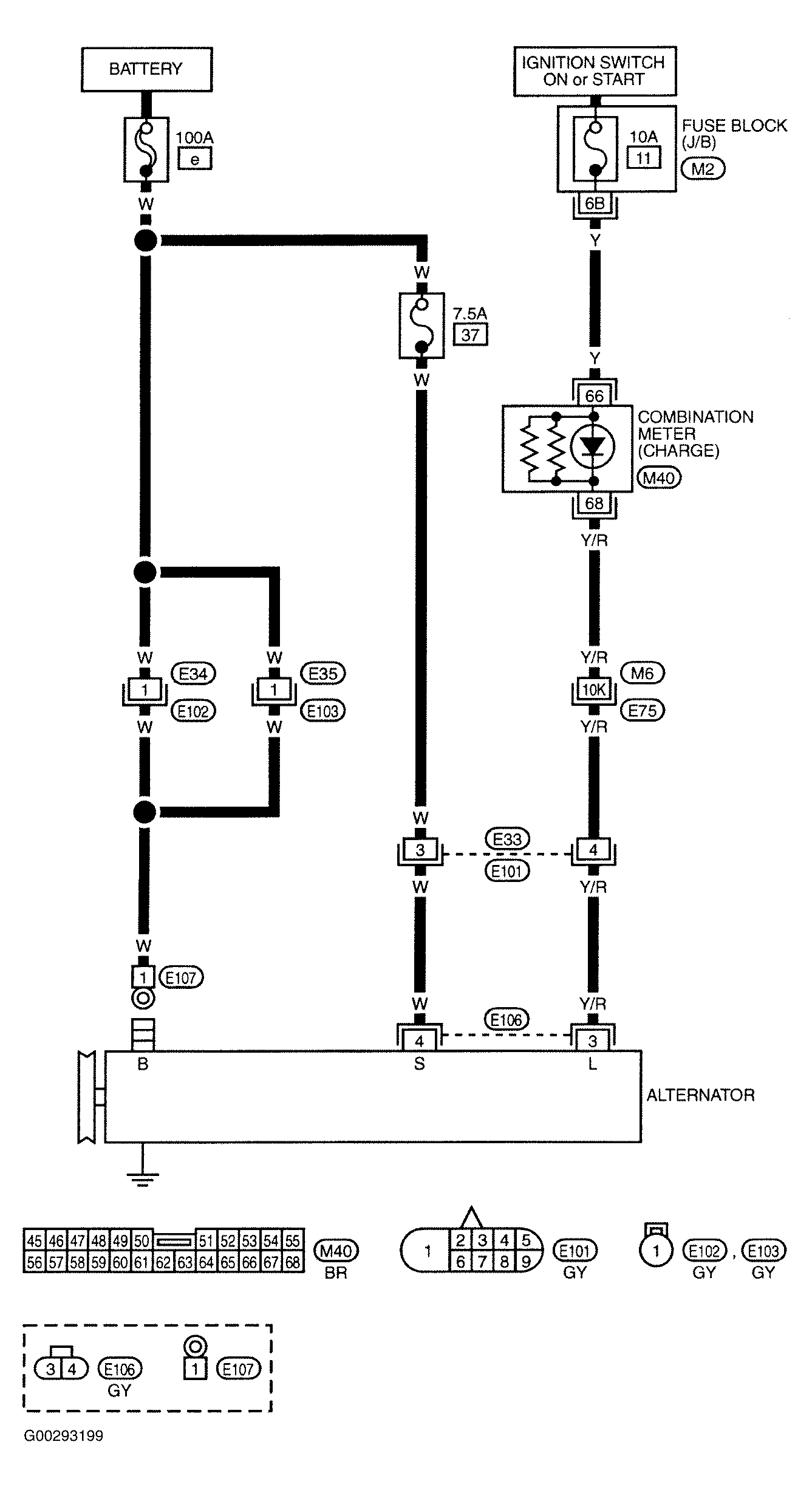

Fig 1: Charging System Wiring Diagram

G00293199

Courtesy of NISSAN MOTOR CO., U.S.A.
