Sensor Rotor: Removal

  1. Remove the drive shaft and rear wheel hub.
  2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

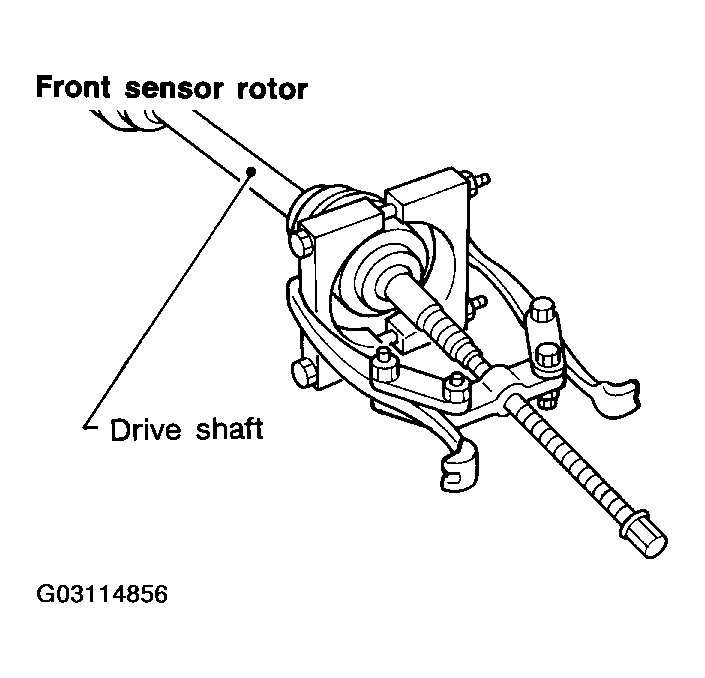

    Fig 1: Removing Front Sensor Rotor
    G03114856Courtesy of NISSAN MOTOR CO., U.S.A.

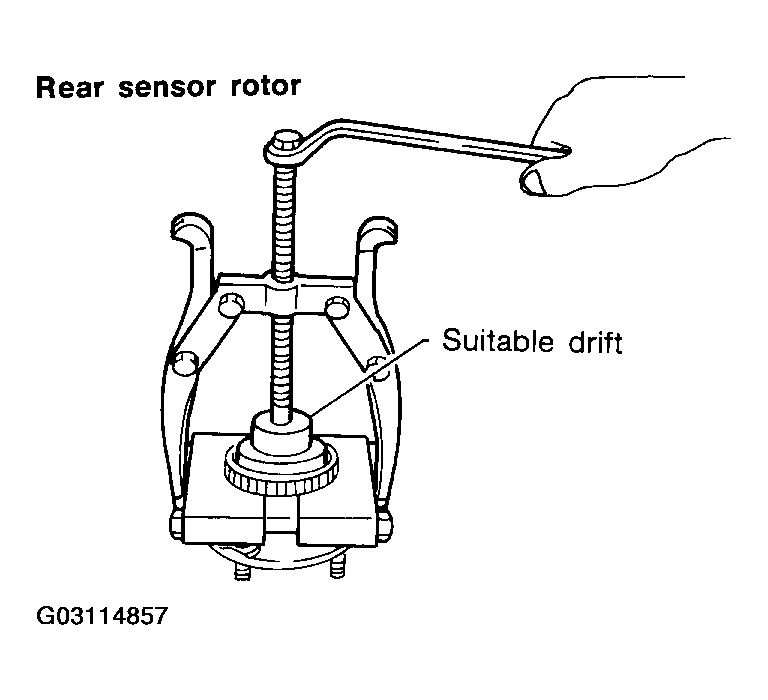

    Fig 2: Removing Rear Sensor Rotor
    G03114857Courtesy of NISSAN MOTOR CO., U.S.A.
