Control Valve Upper Body: Components

Numbers preceding valve springs correspond with those shown in SDS table on page CONTROL VALVES  .

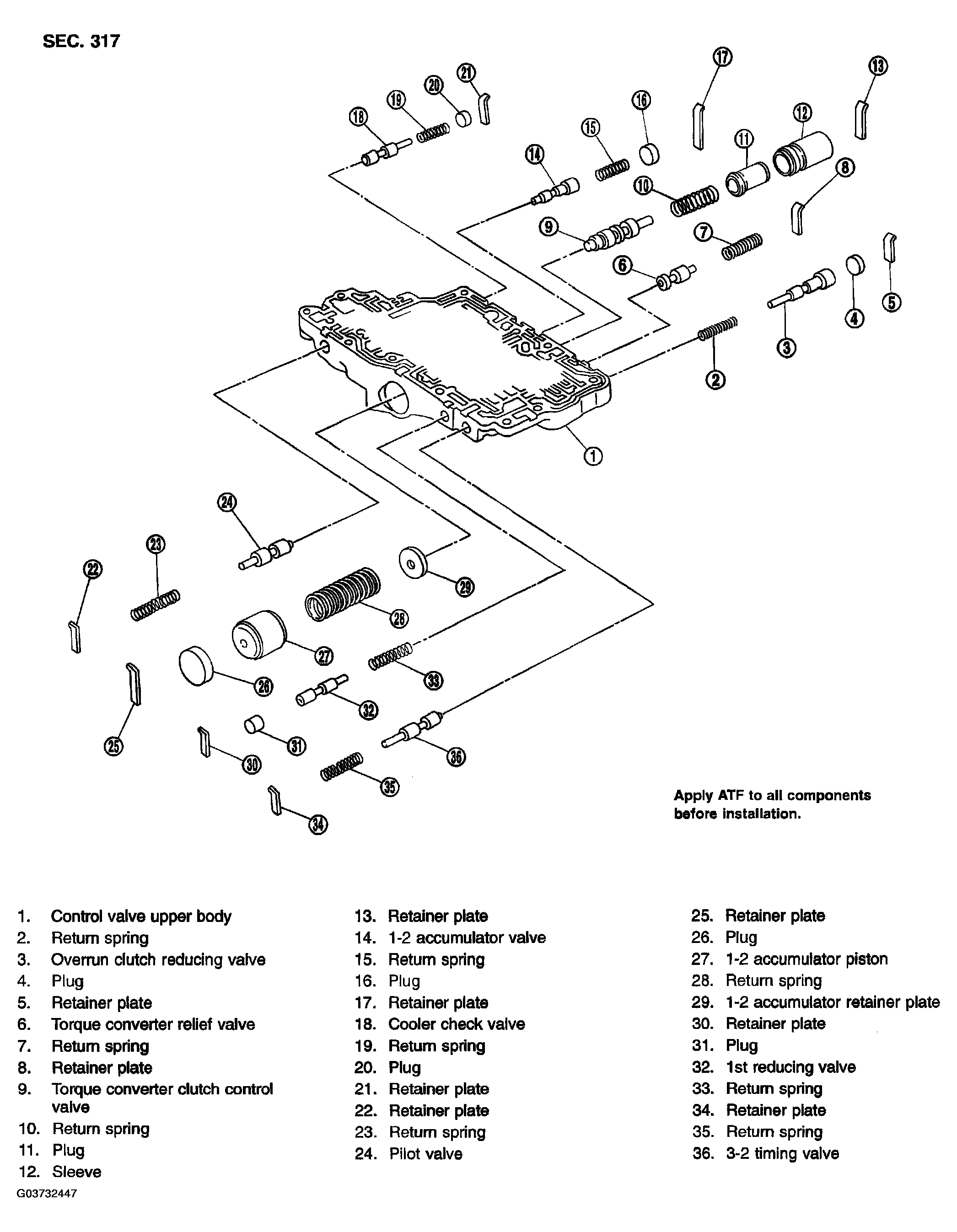

Fig 1: Exploded View Of Control Valve Upper Body

Courtesy of NISSAN MOTOR CO., U.S.A.
