Control Valve Assembly: Assembly

1. Install upper, inter and lower body.

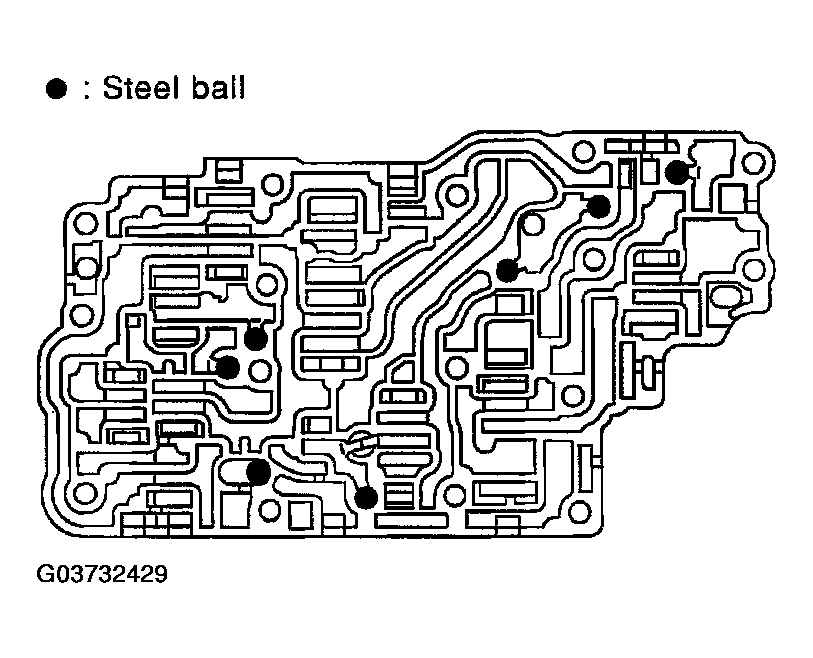

   1. Place oil circuit of upper body face up. Install steel balls in their proper positions.
      Fig 1: Installing Steel Balls In Their Proper Positions

      Courtesy of NISSAN MOTOR CO., U.S.A.
   2. Install upper separating gasket, upper inter separating gasket and upper separating plate in order shown in illustration.
      • Always use new gaskets.
      Fig 2: Installing Upper Separating Gasket, Upper Inter Separating Gasket And Upper Separating Plate In Order

      Courtesy of NISSAN MOTOR CO., U.S.A.
   3. Install reamer bolts F  from bottom of upper body. Using reamer bolts as guides, install separating plate and gaskets as a seat.
      Fig 3: Installing Reamer Bolts F From Bottom Of Upper Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
   4. Install pilot filter.
      Fig 4: Installing Pilot Filter

      Courtesy of NISSAN MOTOR CO., U.S.A.
   5. Place inter body as shown in the illustration. Install steel balls in their proper positions.
      Fig 5: Installing Steel Balls In Their Proper Positions

      Courtesy of NISSAN MOTOR CO., U.S.A.
   6. Install inter body on upper body using reamer bolts F  as guides.
      • Be careful not to dislocate or drop steel balls.
      Fig 6: Installing Inter Body On Upper Body Using Reamer Bolts F As Guides

      Courtesy of NISSAN MOTOR CO., U.S.A.
   7. Install check balls, oil cooler relief valve springs and T/C pressure holding spring in their proper positions in lower body.

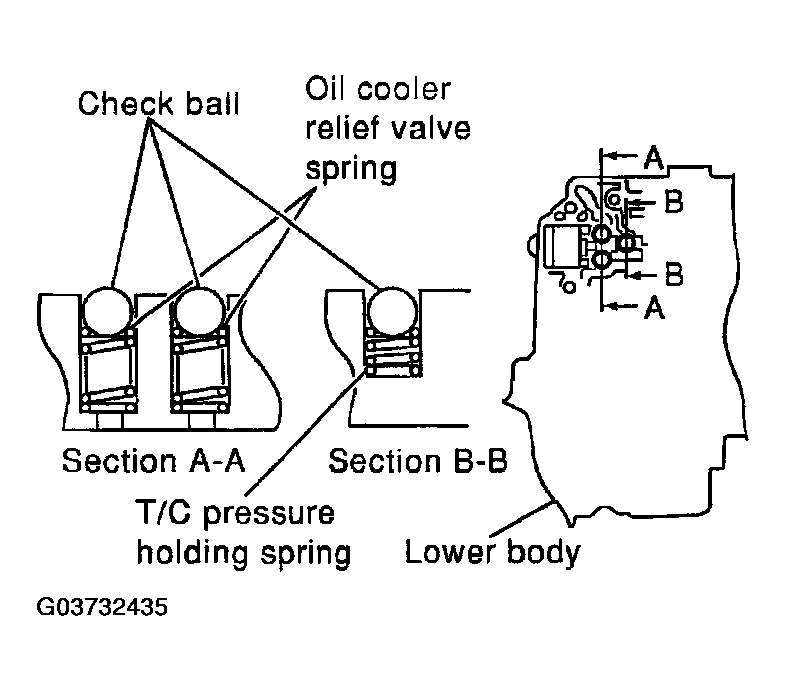

      Fig 7: Installing Check Balls, Oil Cooler Relief Valve Springs And T/C Pressure Holding Spring In Their Proper Positions In Lower Body

      Courtesy of NISSAN MOTOR CO., U.S.A.
   8. Install lower separating gasket, inner separating gasket and lower separating plate in order shown in the illustration.
      Fig 8: Installing Lower Separating Gasket, Inner Separating Gasket And Lower Separating Plate In Order

      Courtesy of NISSAN MOTOR CO., U.S.A.

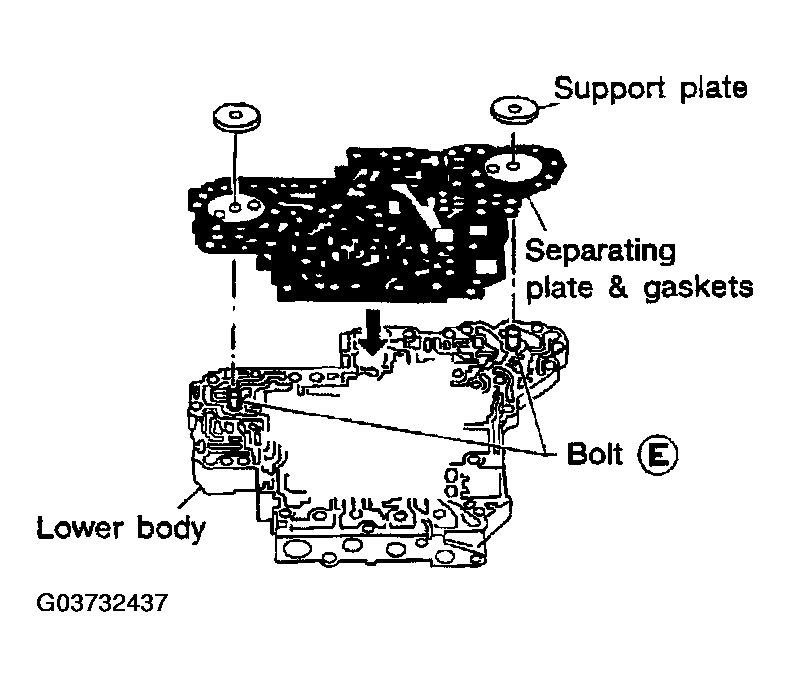

   9. Install bolts E  from bottom of lower body. Using bolt E  as guides, install separating plate and gaskets as a set.
   10. Install support plates on lower body.
       Fig 9: Installing Bolts E From Bottom Of Lower Body

       Courtesy of NISSAN MOTOR CO., U.S.A.

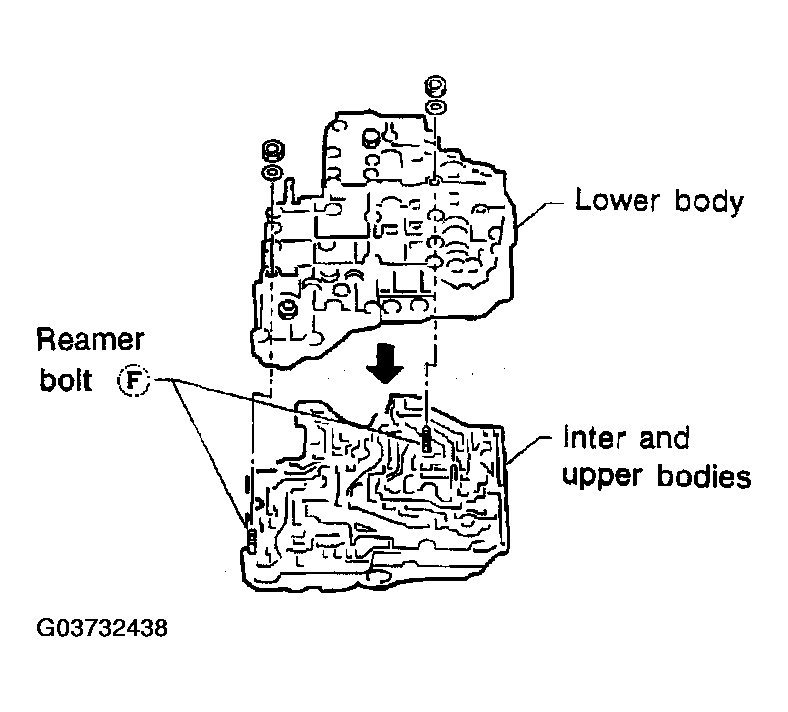

   11. Install lower body on inter body using reamer bolts F  as guides and tighten reamer bolts F  slightly.
   Fig 10: Installing Lower Body On Inter Body Using Reamer Bolts F As Guides

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install O-rings to solenoid valves and terminal body.
   • Apply ATF to O-rings.
   Fig 11: Installing O-Rings To Solenoid Valves And Terminal Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install and tighten bolts.

Bolt length, number and location:

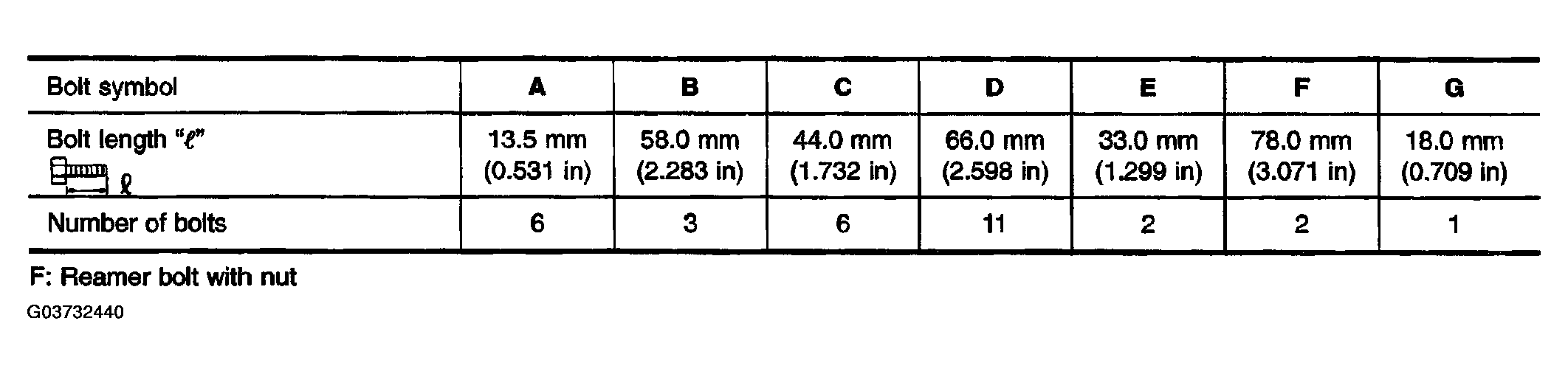

Fig 12: Bolt Length And Number Specification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

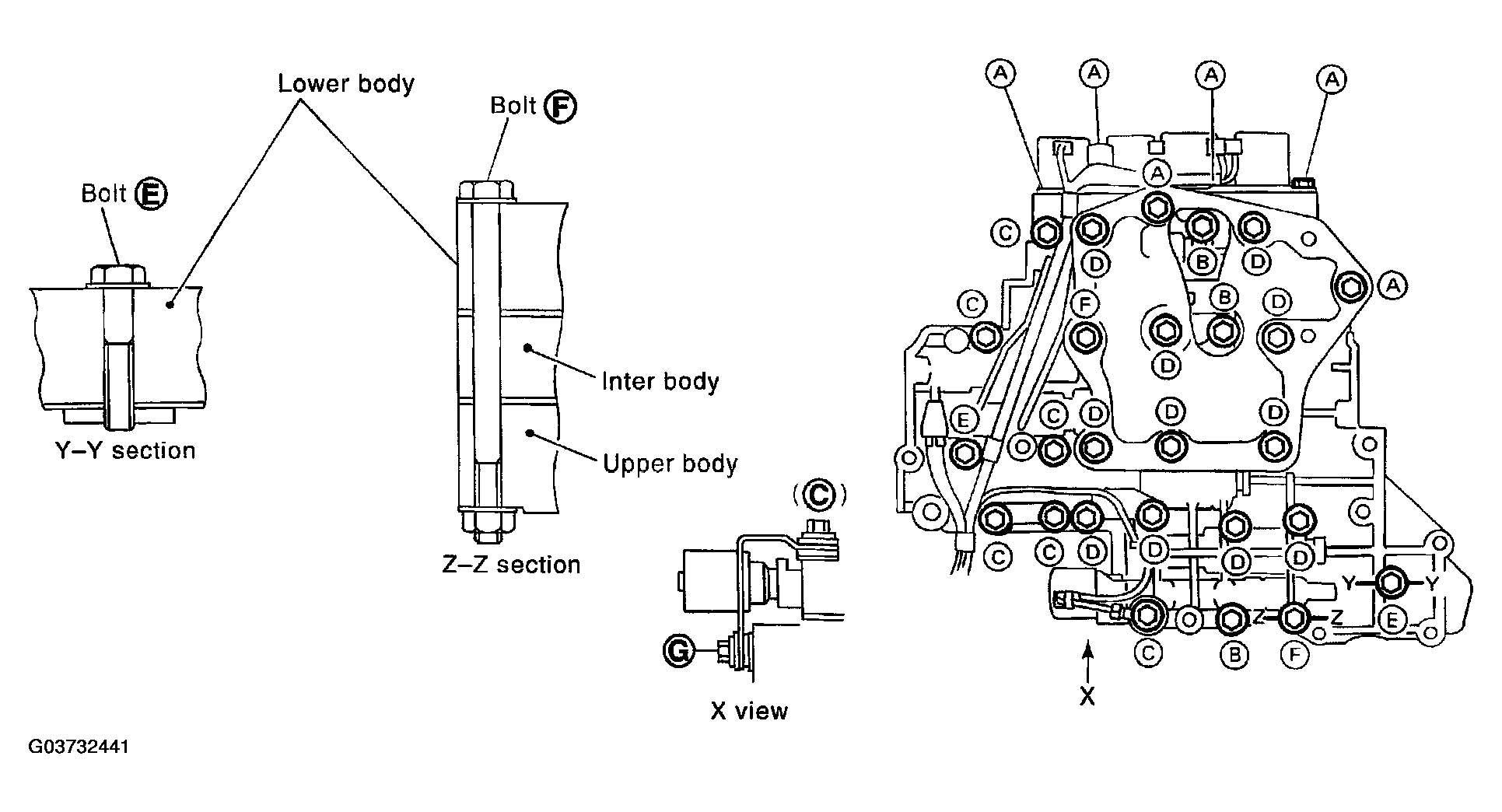

Fig 13: Identifying Bolt Length, Number And Location

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Install and tighten bolts B  to specified torque.
   1. : 7 - 9 N.m (0.7 - 0.9 kg.m, 61 - 78 in.lb)
   Fig 14: Installing And Bolts B To Specified Torque

   Courtesy of NISSAN MOTOR CO., U.S.A.

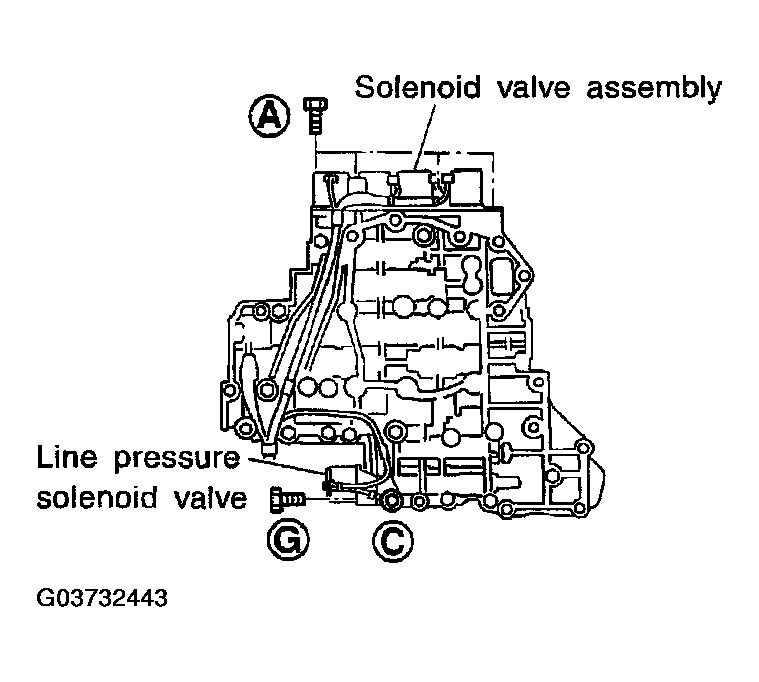

2. Install solenoid valve assembly and line pressure solenoid valve to lower body.
   Fig 15: Installing Solenoid Valve Assembly And Line Pressure Solenoid Valve To Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove reamer bolts F  and set oil strainer on control valve assembly.
4. Reinstall reamer bolts F  from lower body side.

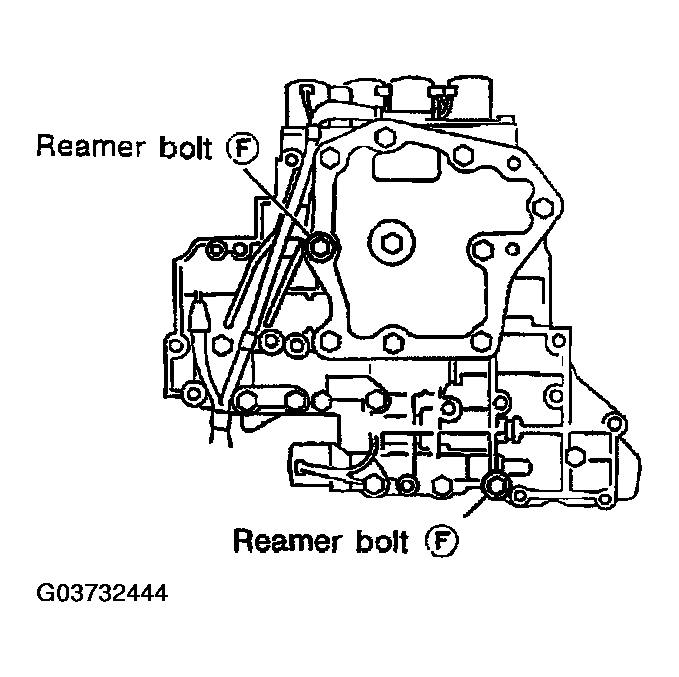

   Fig 16: Reinstalling Reamer Bolts F From Lower Body Side

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Tighten bolts A, C, D  and F  to specified torque.
   1. : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

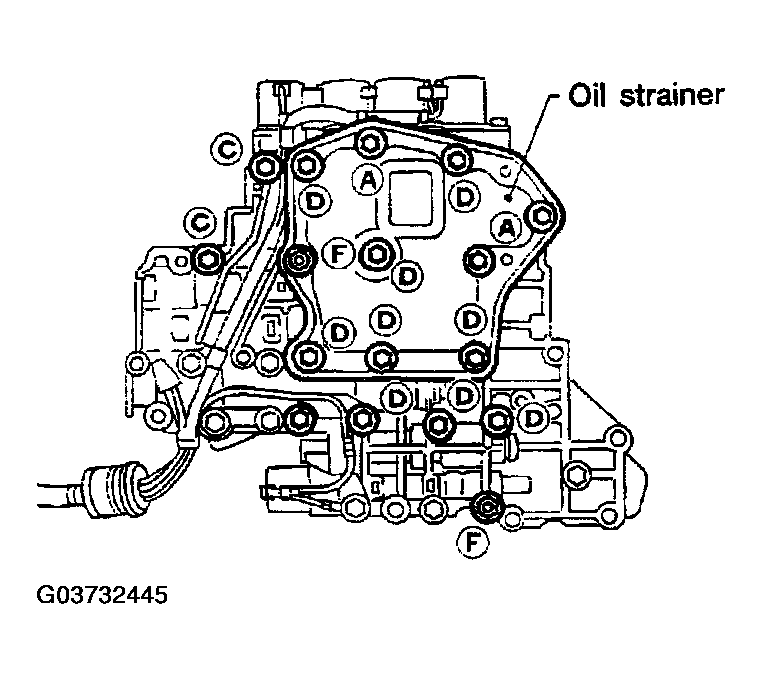

   Fig 17: Tightening Bolts A, C, D And F To Specified Torque

   Courtesy of NISSAN MOTOR CO., U.S.A.

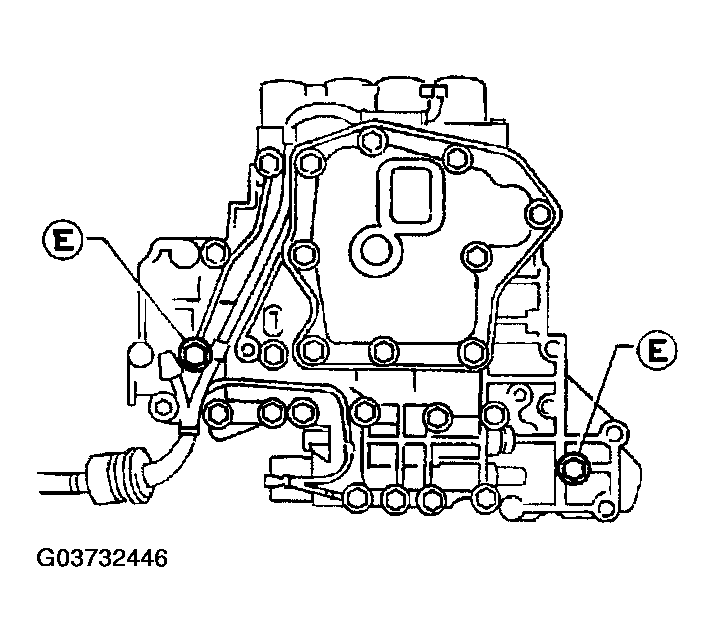

6. Tighten bolts E  to specified torque.
   1. : 3.4 - 4.4 N.m (0.35 - 0.45 kg-m, 30.4 - 39.1 in-lb)
   Fig 18: Tightening Bolts E To Specified Torque

   Courtesy of NISSAN MOTOR CO., U.S.A.
