Assembly (3)

Remove reverse clutch assembly and install needle bearing on high clutch assembly.
- Pay attention to direction of needle bearing.
Install reverse clutch assembly.

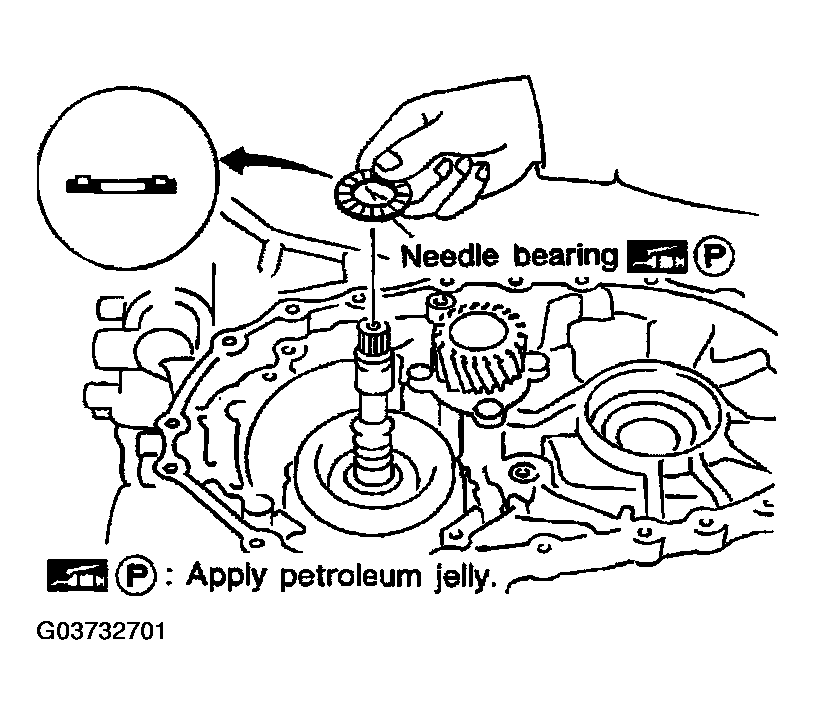

Fig 1: Installing Needle Bearing On High Clutch Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install anchor end pin and lock nut on transmission case.
Place brake band on outside of reverse clutch drum. Tighten anchor end pin just enough so that brake band is evenly fitted on reverse clutch drum.

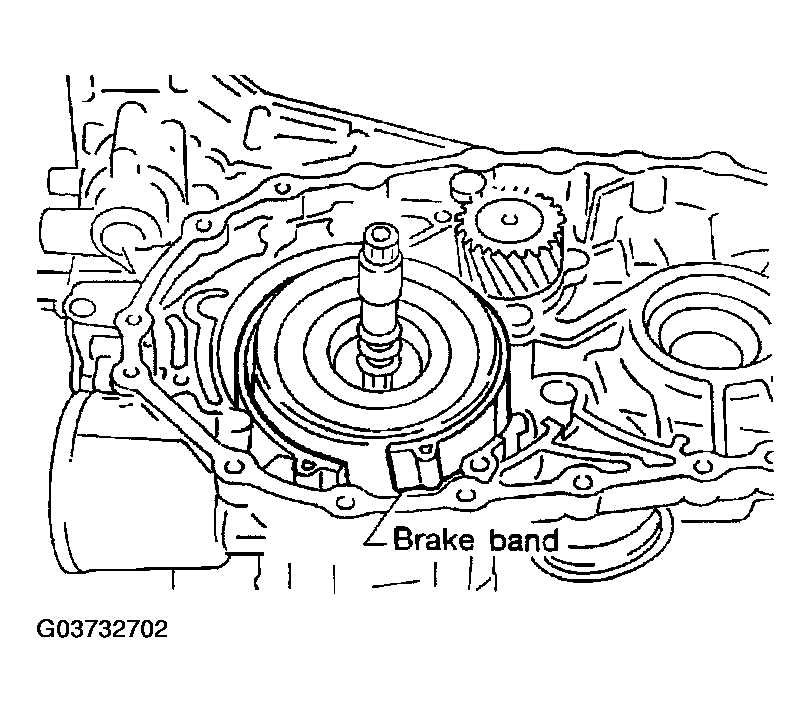

Fig 2: Placing Brake Band On Outside Of Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Place bearing race selected in total end play adjustment step on oil pump cover.
- Apply petroleum jelly to bearing race.

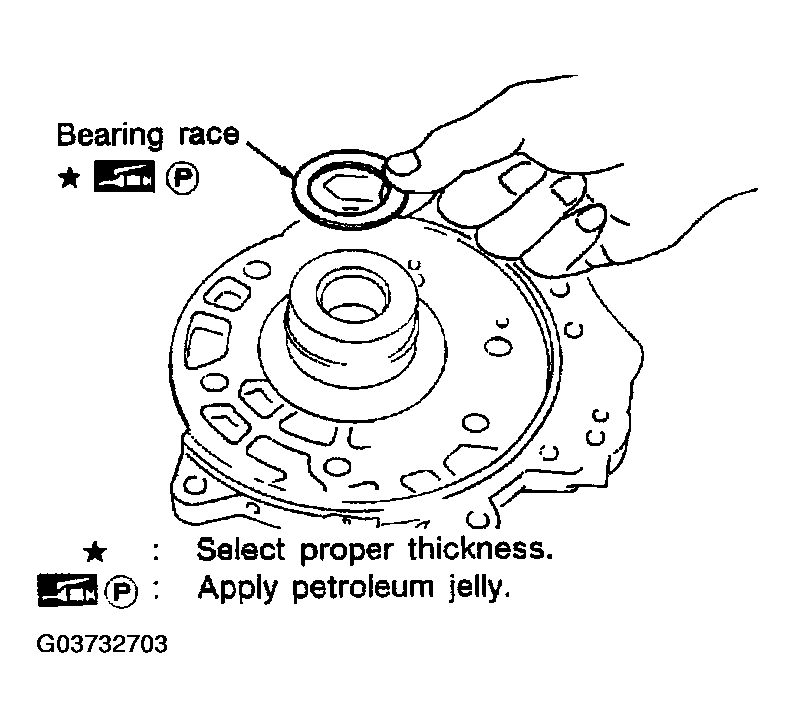

Fig 3: Placing Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.

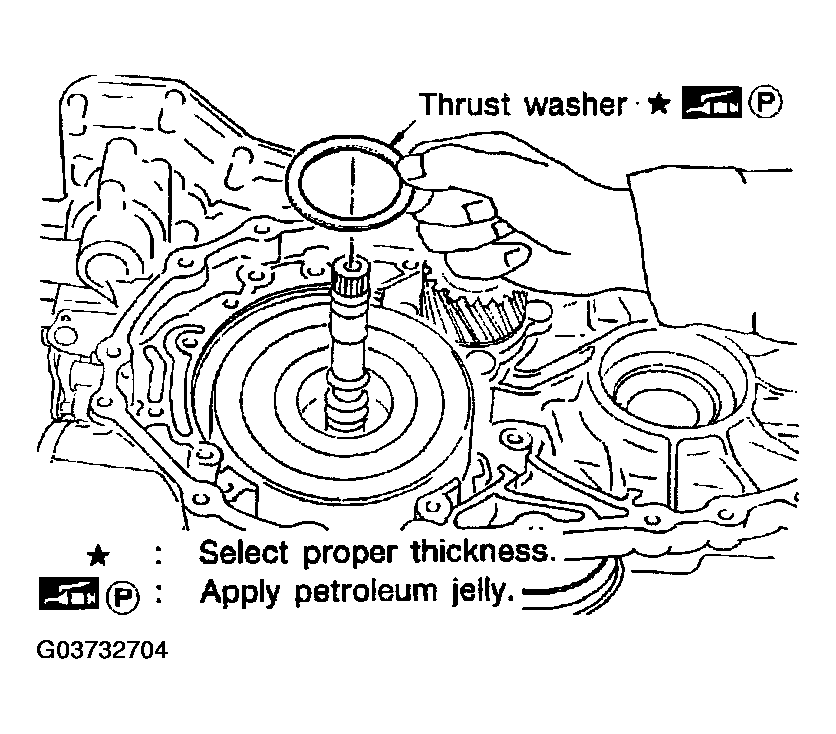

Place thrust washer selected in reverse clutch end play step on reverse clutch drum.
- Apply petroleum jelly to thrust washer.
Fig 4: Placing Thrust Washer
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pump assembly on transmission case.

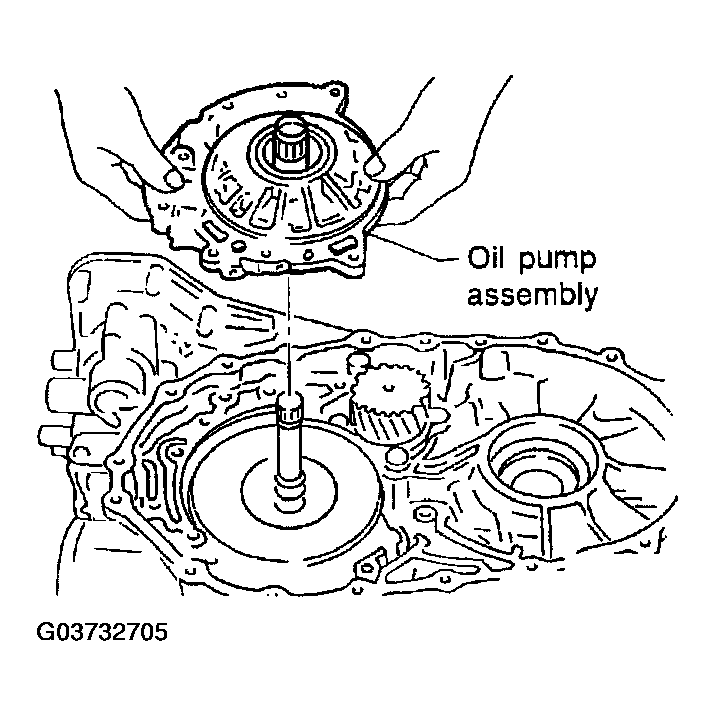

Fig 5: Installing Oil Pump Assembly On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten oil pump fixing bolts to specified torque.

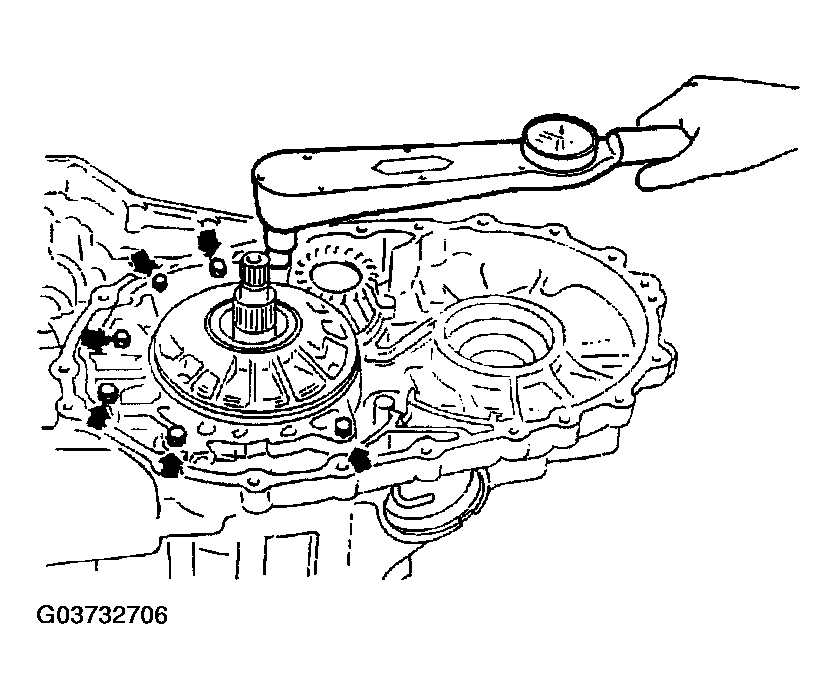

Fig 6: Tightening Oil Pump Fixing Bolts To Specified Torque
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to input shaft.
- Apply ATF to O-ring.

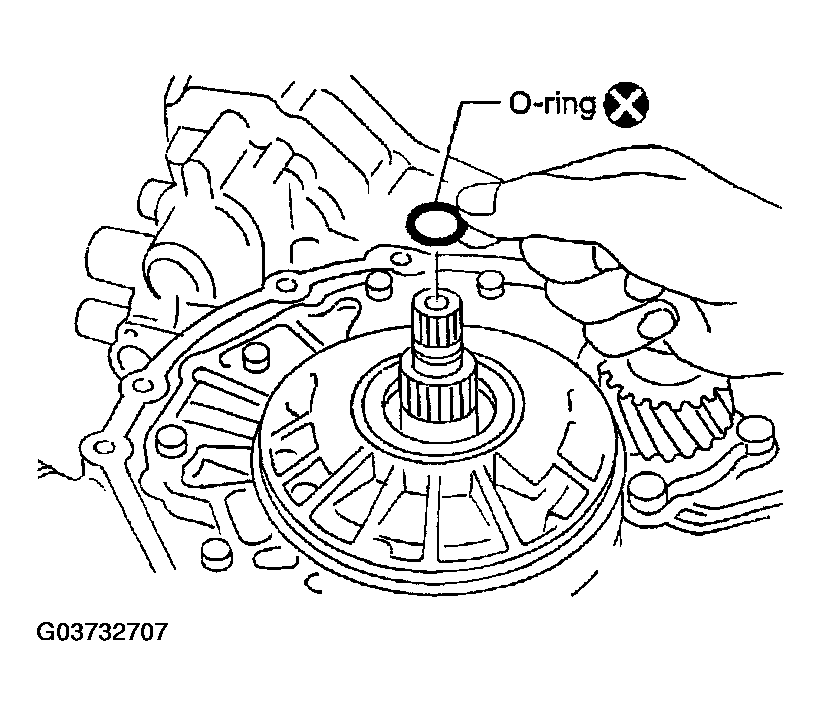

Fig 7: Installing O-Ring To Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust brake band.
1. Tighten anchor end pin to specified torque.
  1. Anchor end pin:
  2. : 3.9 - 5.9 N.m (0.4 - 0.6 kg-m, 35 - 52 in-lb)

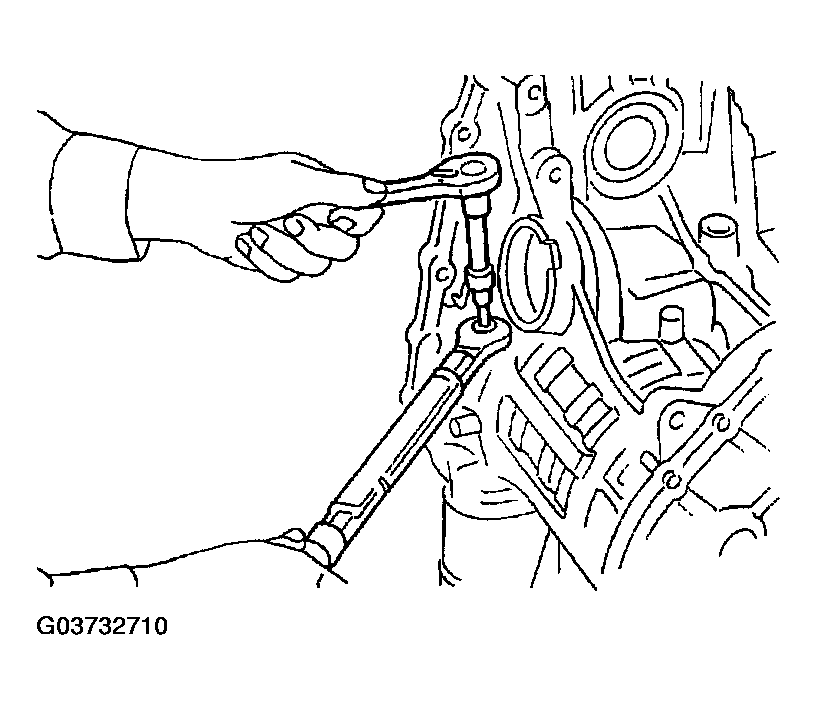

  Fig 8: Tightening Anchor End Pin To Specified Torque
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Back off anchor end pin two and a half turns.

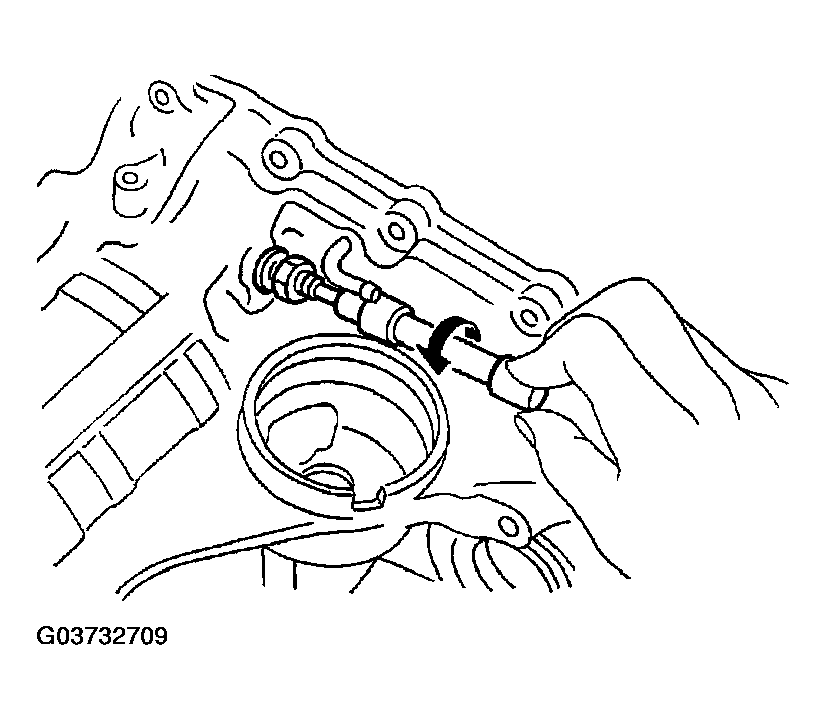

  Fig 9: Identifying Back Off Anchor End Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. While holding anchor end pin, tighten lock nut.
Fig 10: Tightening Lock Nut
Courtesy of NISSAN MOTOR CO., U.S.A.

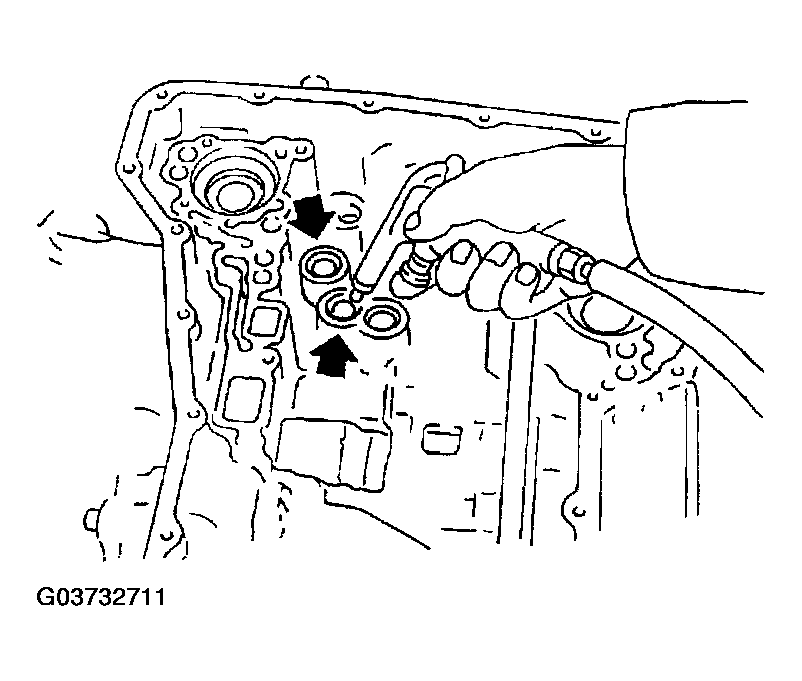

Apply compressed air to oil holes of transmission case and check operation of brake band.

Fig 11: Applying Compressed Air To Oil Holes Of Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
