Assembly (2)

  1. Remove paper rolled around bearing retainer.
  2. Install thrust washer on bearing retainer.
    • Apply petroleum jelly to thrust washer.

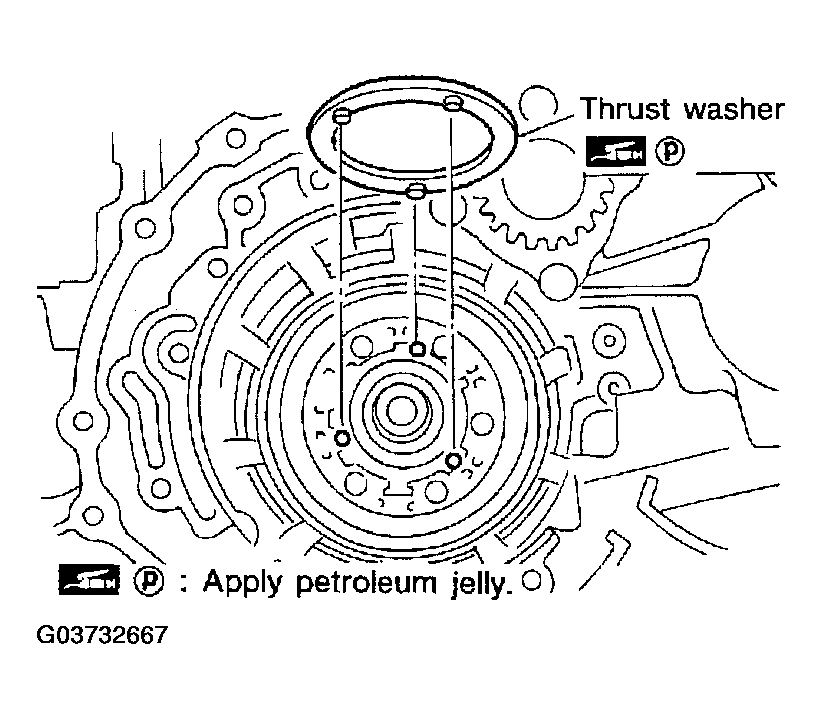

    Fig 1: Installing Thrust Washer On Bearing Retainer
    G03732667Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install forward clutch assembly.
    • Align teeth of low & reverse brake drive plates before installing.
    • Make sure that bearing retainer seal rings are not spread.

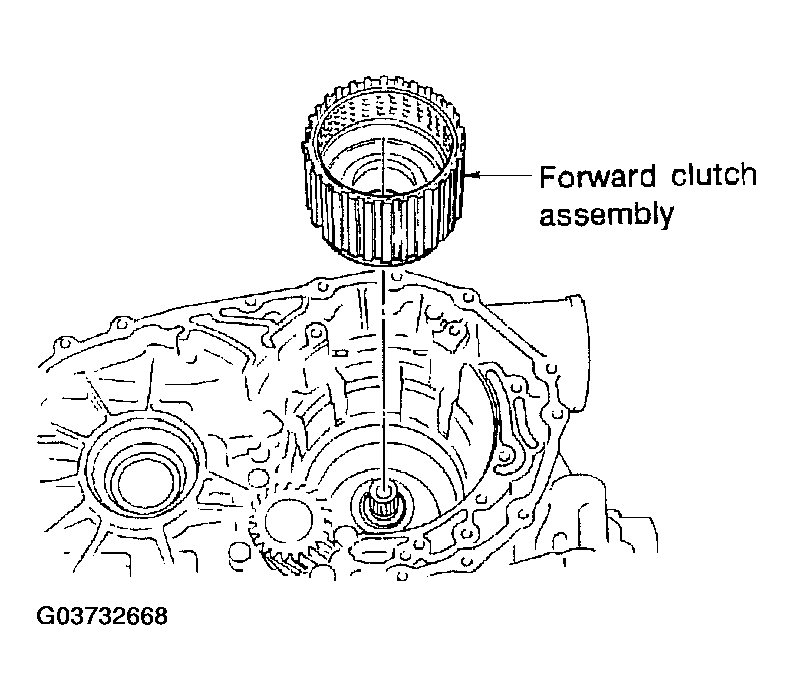

    Fig 2: Installing Forward Clutch Assembly
    G03732668Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install thrust needle bearing on bearing retainer.
    • Apply petroleum jelly to thrust bearing.
    • Pay attention to direction of thrust needle bearing.

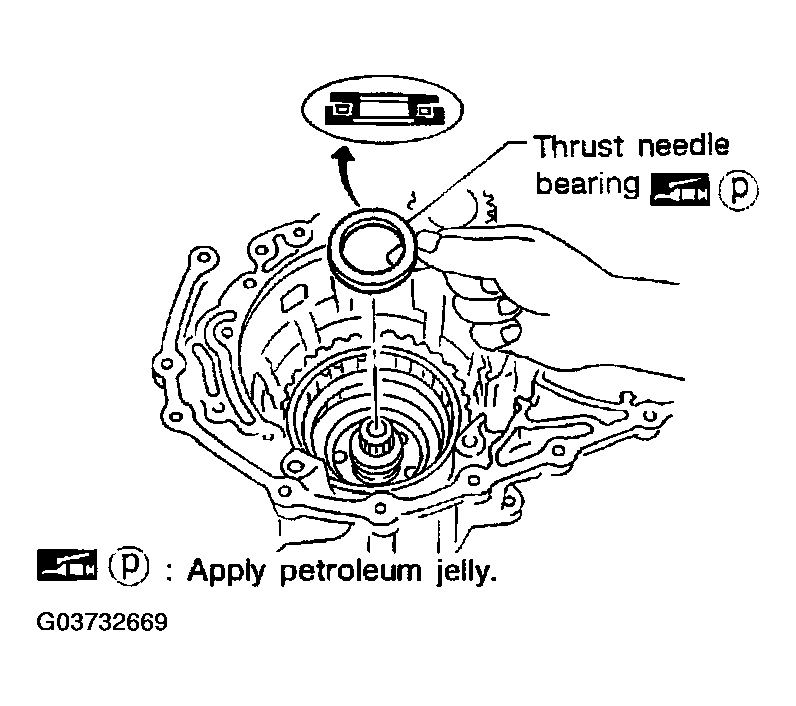

    Fig 3: Installing Thrust Needle Bearing On Bearing Retainer
    G03732669Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install thrust needle bearing on rear internal gear.
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.
    Fig 4: Installing Thrust Needle Bearing On Rear Internal Gear
    G03732670Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Hold forward clutch hub and turn overrun clutch hub. Check overrun clutch hub for directions of lock and unlock.
    • If not as shown in illustration, check installed direction of forward one-way clutch.
    Fig 5: Installing Thrust Needle Bearing On Rear Internal Gear
    G03732671Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install rear internal gear assembly.
    • Align teeth of forward clutch and overrun clutch drive plate.

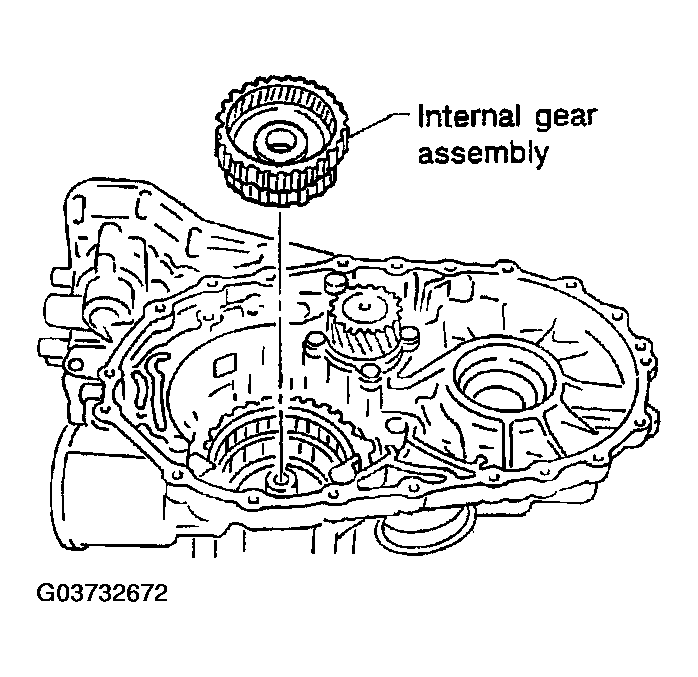

    Fig 6: Installing Rear Internal Gear Assembly
    G03732672Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install needle bearing on rear planetary carrier.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.
    Fig 7: Installing Needle Bearing On Rear Planetary Carrier
    G03732673Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install rear sun gear on rear planetary carrier.
    • Pay attention to direction of rear sun gear.

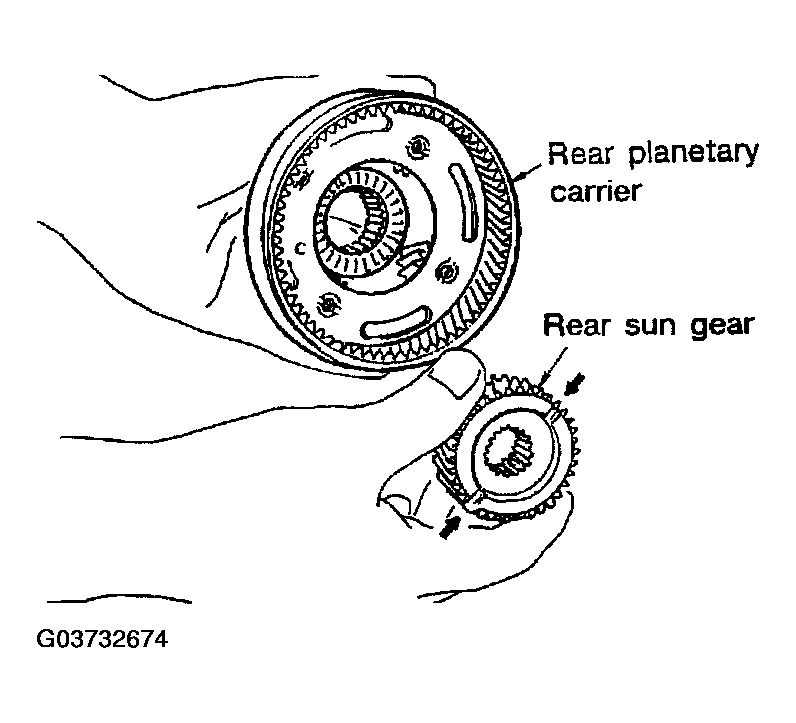

    Fig 8: Installing Rear Sun Gear On Rear Planetary Carrier
    G03732674Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install rear planetary carrier on transmission case.

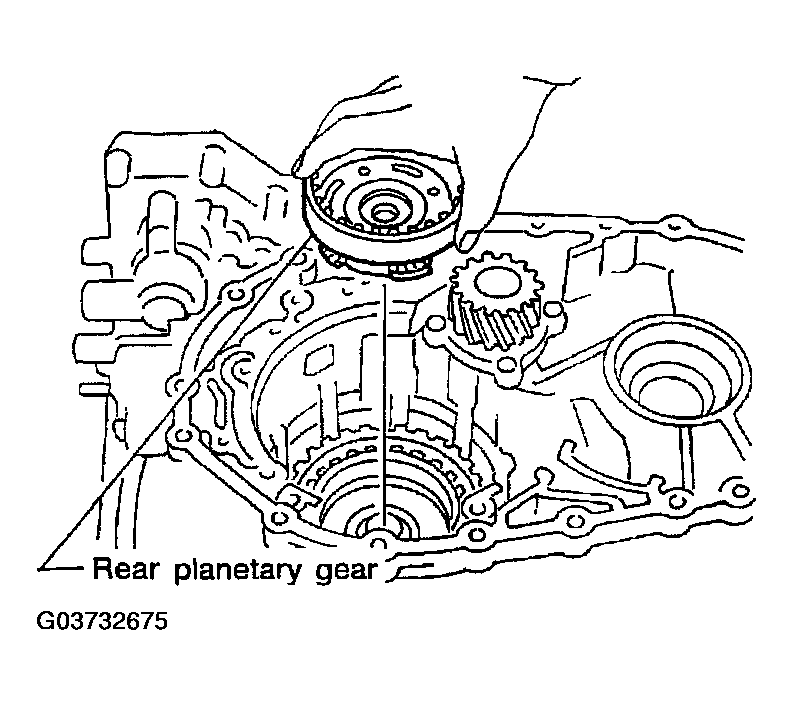

    Fig 9: Installing Rear Planetary Carrier On Transmission Case
    G03732675Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install thrust needle bearing on front planetary carrier.
    • Apply petroleum jelly to thrust needle bearing.
    • Pay attention to direction of thrust needle bearing.
    Fig 10: Installing Thrust Needle Bearing On Front Planetary Carrier
    G03732676Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Install low one-way clutch to front planetary carrier by turning it in the direction of the arrow as shown.
  13. While holding front planetary carrier, turn low one-way clutch. Check low one-way clutch for correct directions of lock and unlock.
    Fig 11: Installing Low One-Way Clutch To Front Planetary Carrier
    G03732677Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install front planetary carrier assembly on transmission case.

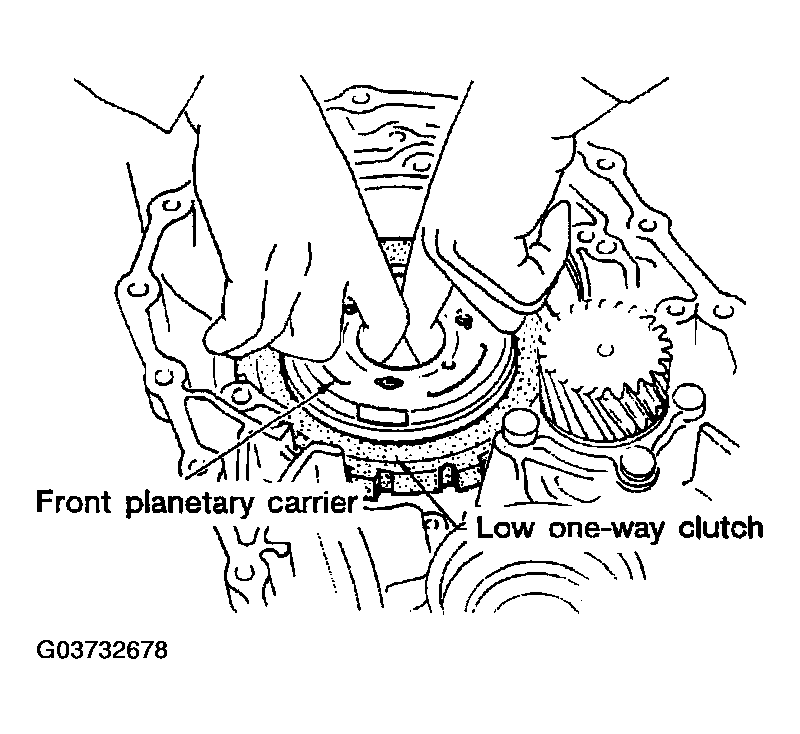

    Fig 12: Installing Front Planetary Carrier Assembly On Transmission Case
    G03732678Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install snap ring with screwdriver.
    • Forward clutch and bearings must be correctly installed for snap ring to fit groove of transmission case.

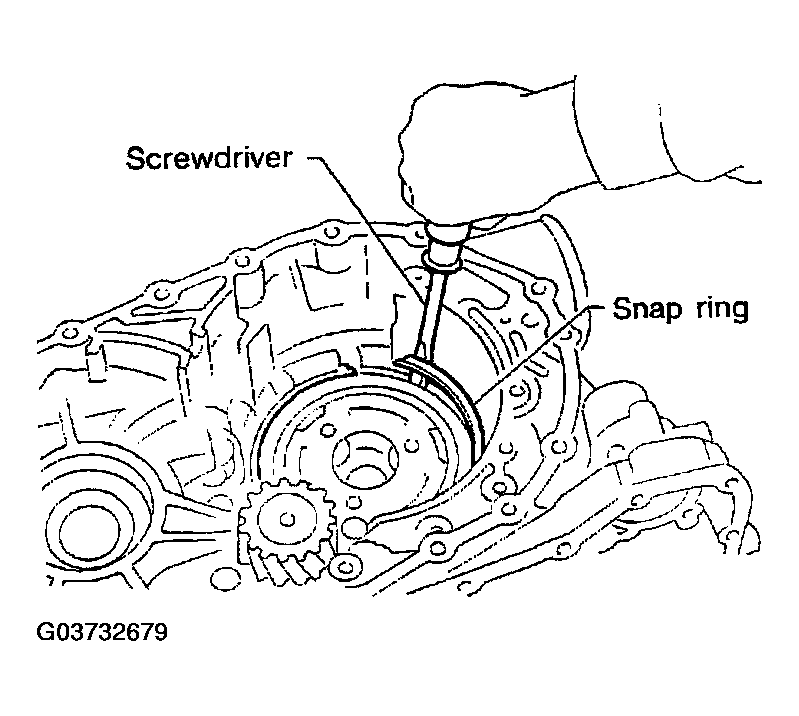

    Fig 13: Installing Snap Ring With Screwdriver
    G03732679Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

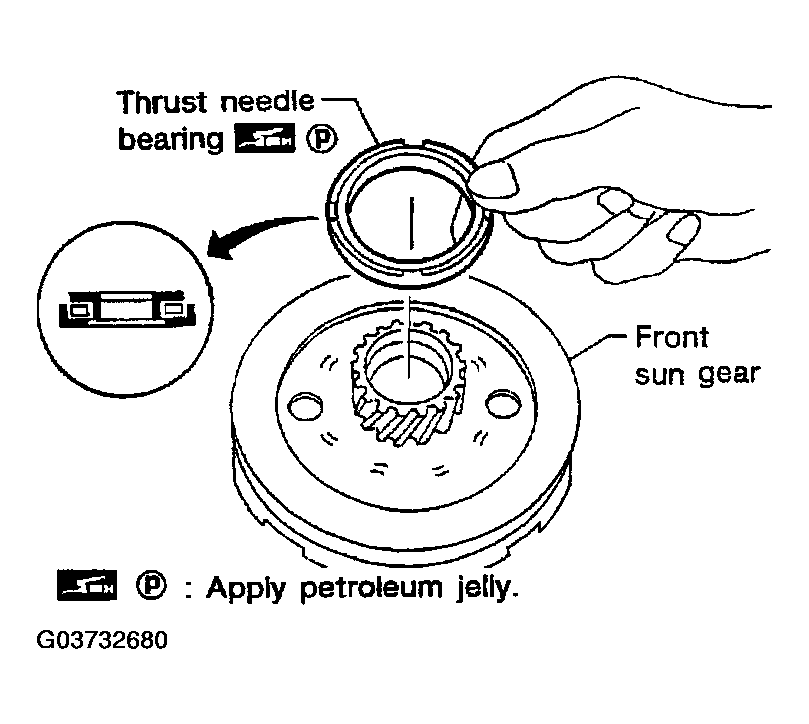

    Fig 14: Installing Needle Bearing On Front Sun Gear
    G03732680Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install front sun gear on front planetary carrier.

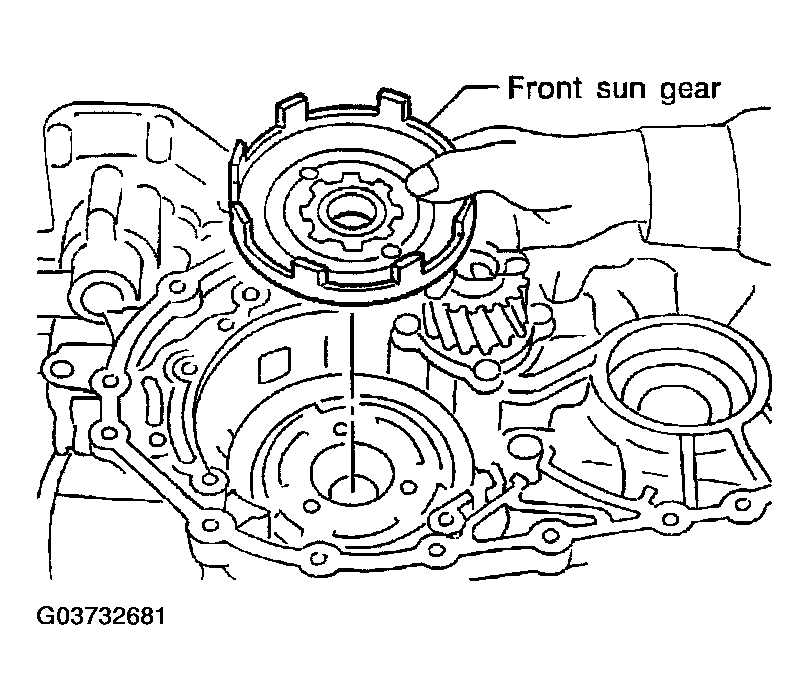

    Fig 15: Installing Front Sun Gear On Front Planetary Carrier
    G03732681Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install needle bearing on front sun gear.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

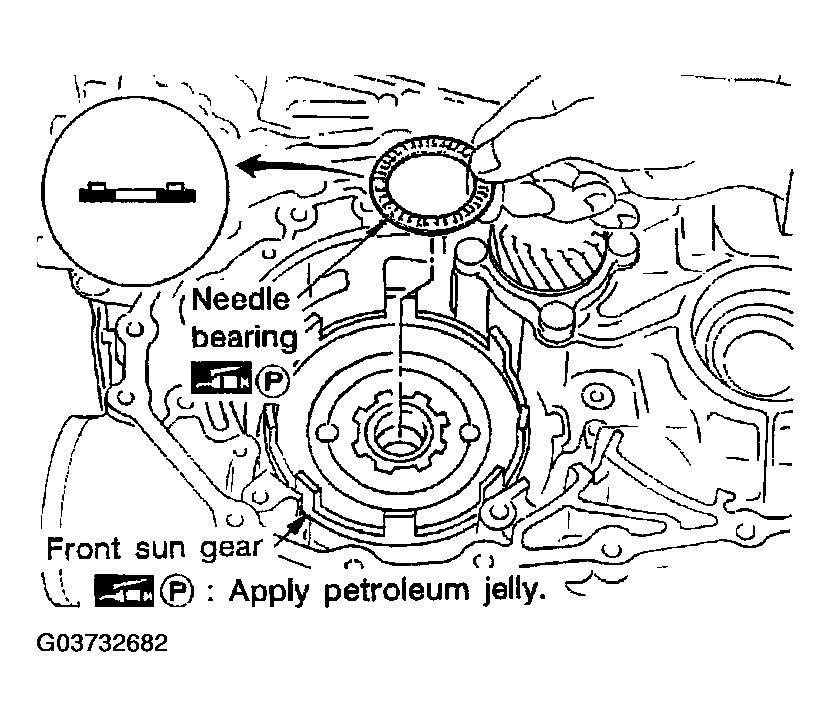

    Fig 16: Installing Needle Bearing On Front Sun Gear
    G03732682Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Install high clutch hub on front sun gear.

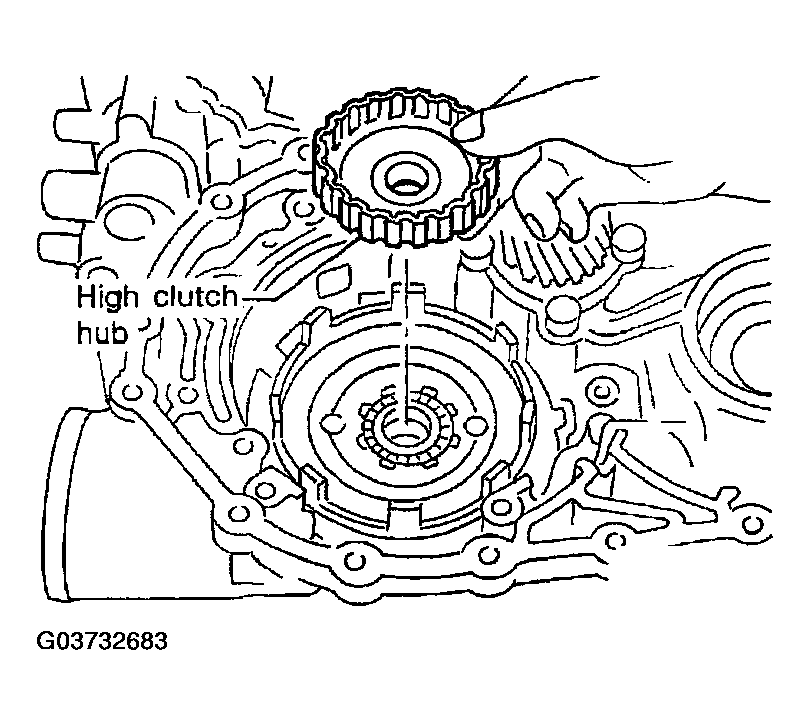

    Fig 17: Installing High Clutch Hub On Front Sun Gear
    G03732683Courtesy of NISSAN MOTOR CO., U.S.A.
  20. Install needle bearing on high clutch hub.
    • Apply petroleum jelly to needle bearing.
    • Pay attention to direction of needle bearing.

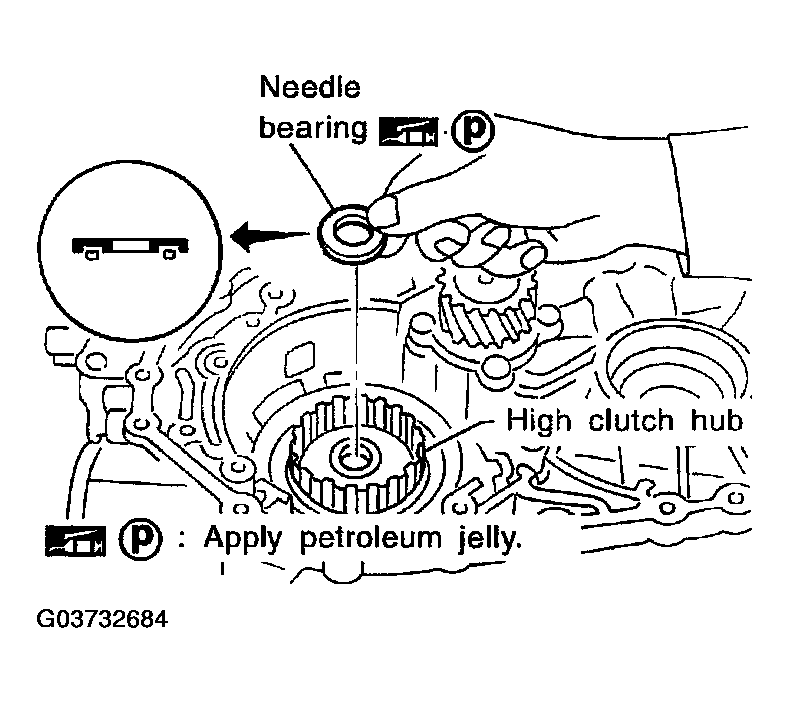

    Fig 18: Installing Needle Bearing On High Clutch Hub
    G03732684Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Remove paper rolled around input shaft.
  22. Install input shaft assembly.
    • Align teeth of high clutch drive plates before installing.

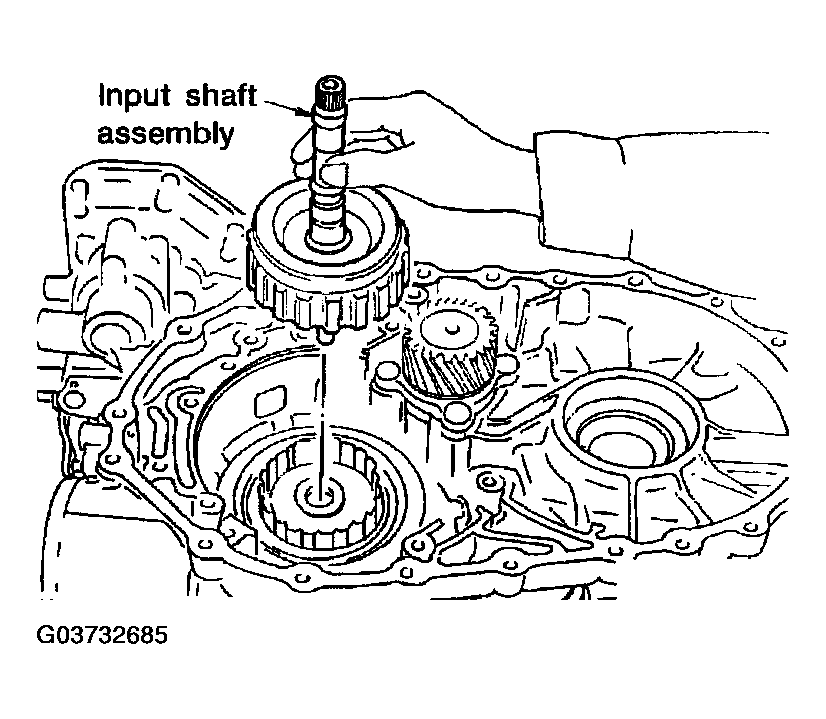

    Fig 19: Installing Input Shaft Assembly
    G03732685Courtesy of NISSAN MOTOR CO., U.S.A.
  23. Install reverse clutch assembly.
    • Align teeth of reverse clutch drive plates before installing.

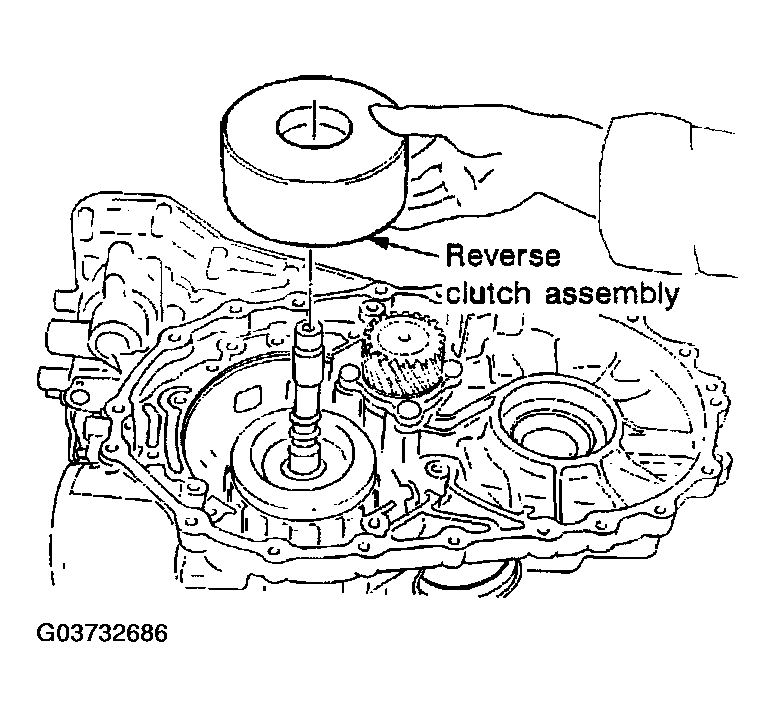

    Fig 20: Installing Reverse Clutch Assembly
    G03732686Courtesy of NISSAN MOTOR CO., U.S.A.
