Checking Fuel Pressure

  1. Release fuel pressure. See FUEL PRESSURE RELEASE . Disconnect fuel hose before pressure regulator. Install fuel pressure gauge as shown in illustration. See Fig 1or Fig 2 . Replace pump fuse. Start engine and check fuel line connections for leakage. Check fuel pressure with engine idling. Record fuel pressure gauge reading.
  2. Disconnect and plug vacuum hose from pressure regulator and immediately note fuel pressure. Record fuel pressure gauge reading. See FUEL PRESSURE  table.
  3. Connect a hand-held vacuum pump to fuel pressure regulator. Start engine and watch fuel pressure gauge as vacuum is changed. Fuel pressure should decrease as vacuum increases. If result is not as specified, replace fuel pressure regulator.
FUEL PRESSURE

Application (1) psi (kg/cm2 ) (2) psi (kg/cm2 )
G20 & Q45 34 (2.4) 43 (3.0)
(1) With vacuum hose connected at fuel pressure regulator.
(2) With vacuum hose disconnected at fuel pressure regulator.

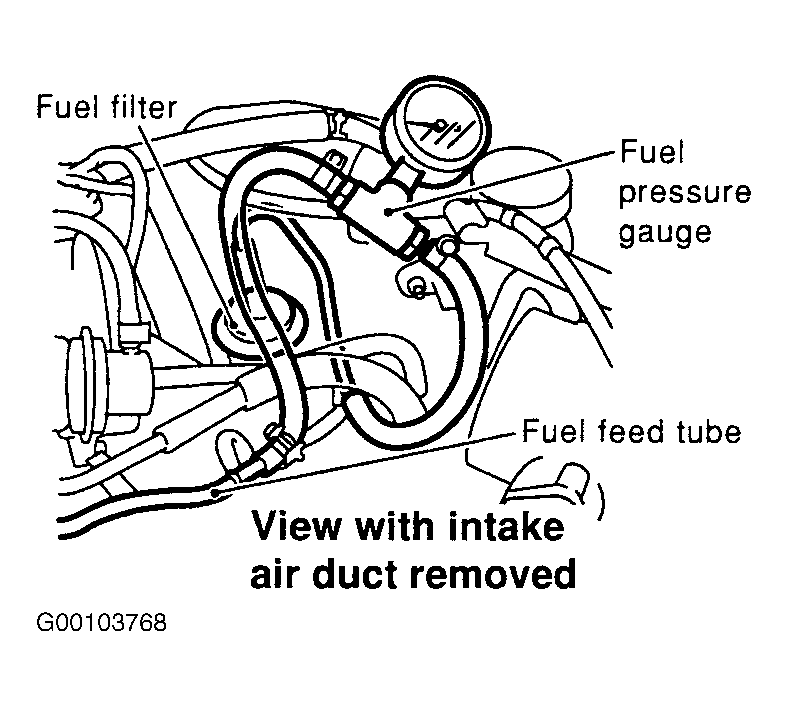

Fig 1: Installing Fuel Pressure Gauge (G20)
G00103768Courtesy of NISSAN MOTOR CO., U.S.A.

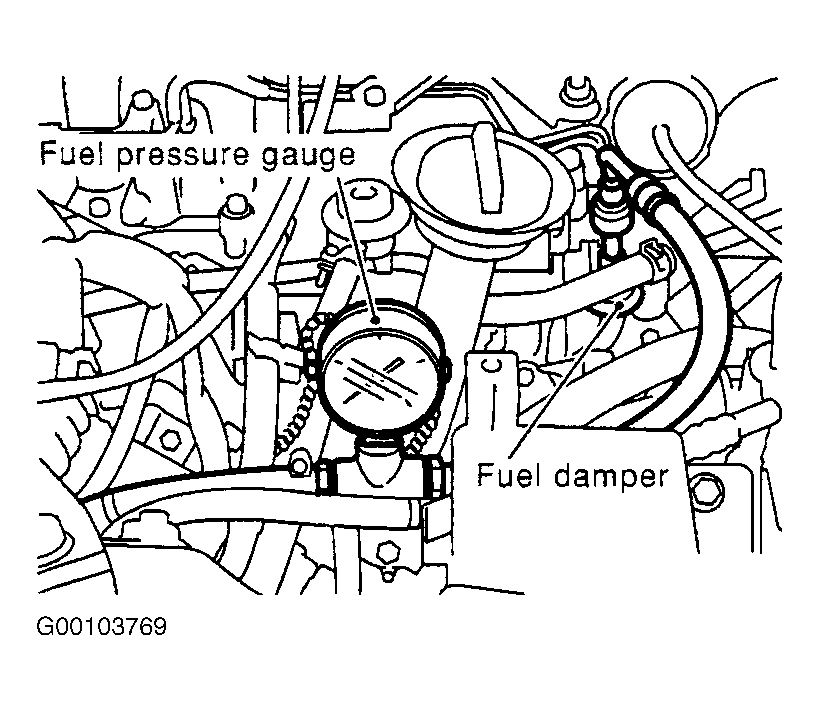

Fig 2: Installing Fuel Pressure Gauge (Q45)
G00103769Courtesy of NISSAN MOTOR CO., U.S.A.
