Diagnostic Procedure 3
For diagnostic procedure 3, see
Fig 1
.

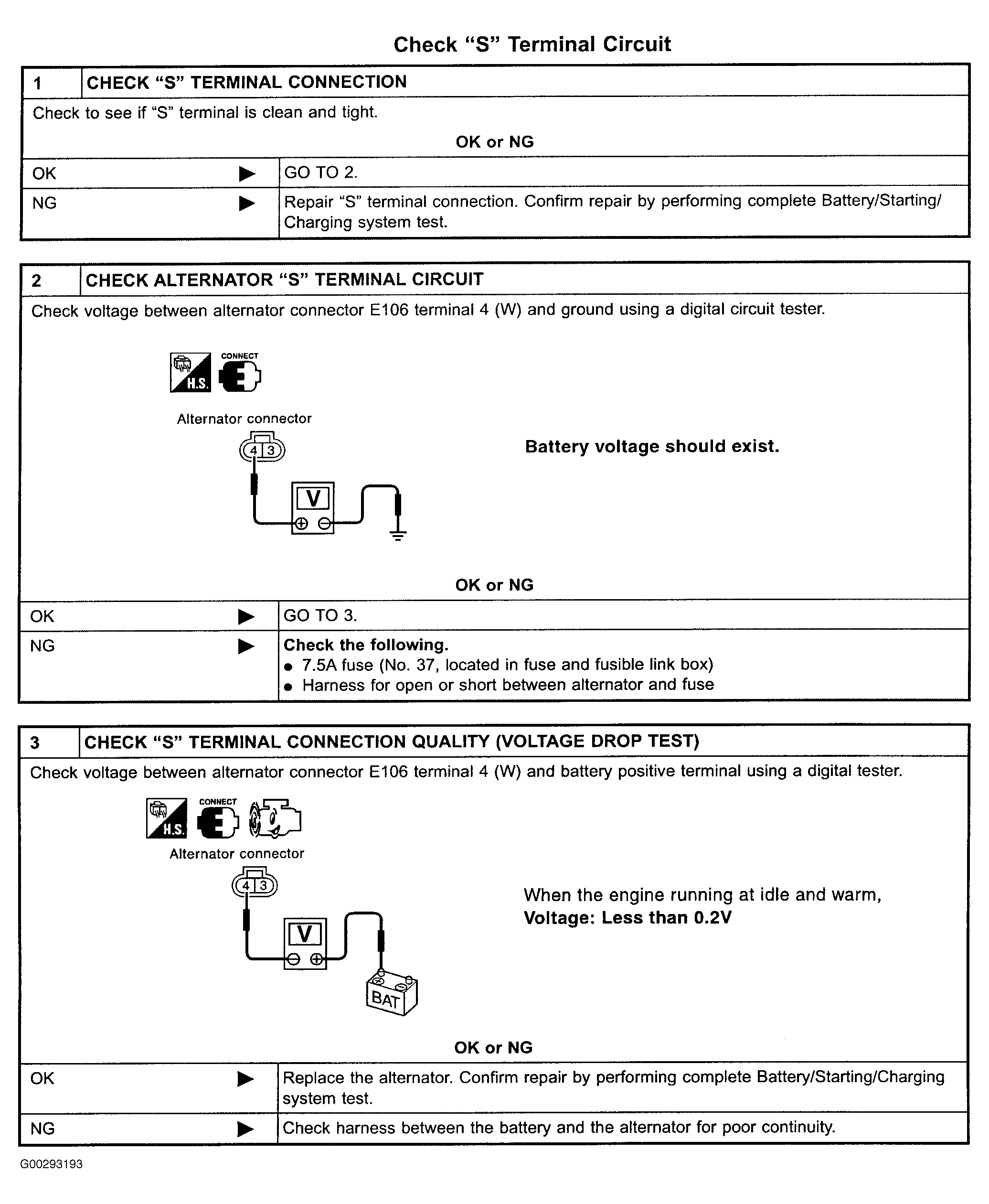

Fig 1: Diagnostic Procedure 3
Courtesy of NISSAN MOTOR CO., U.S.A.
