Home >> Infiniti >> 2002 >> G20 Automatic, RE4F03W >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock >> Description >> Schematic

Traction Control: Anti-Lock: Description: Schematic

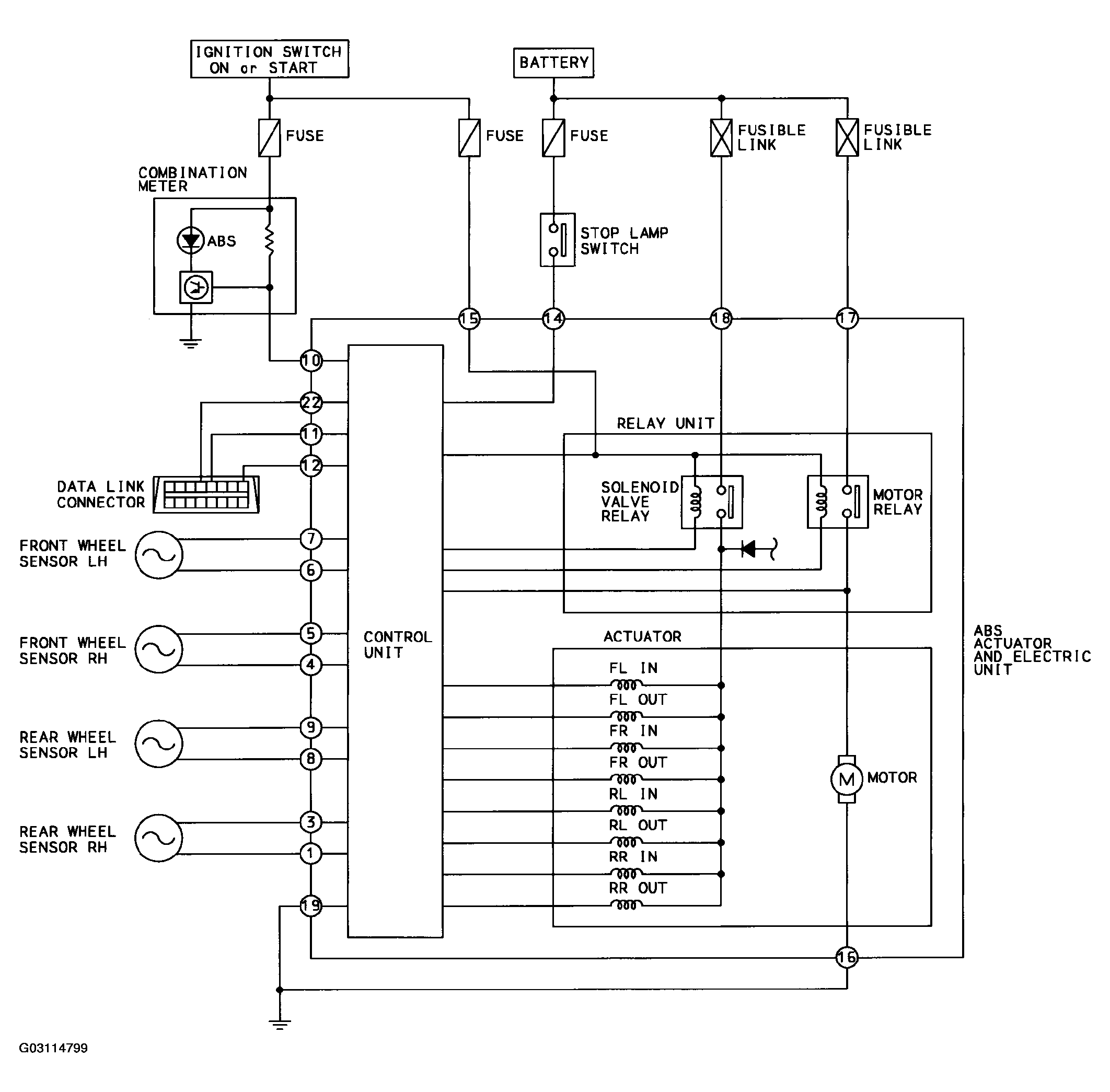

Fig 1: ABS Schematic Diagram

G03114799

Courtesy of NISSAN MOTOR CO., U.S.A.
