Multi-Remote Control System: Schematic

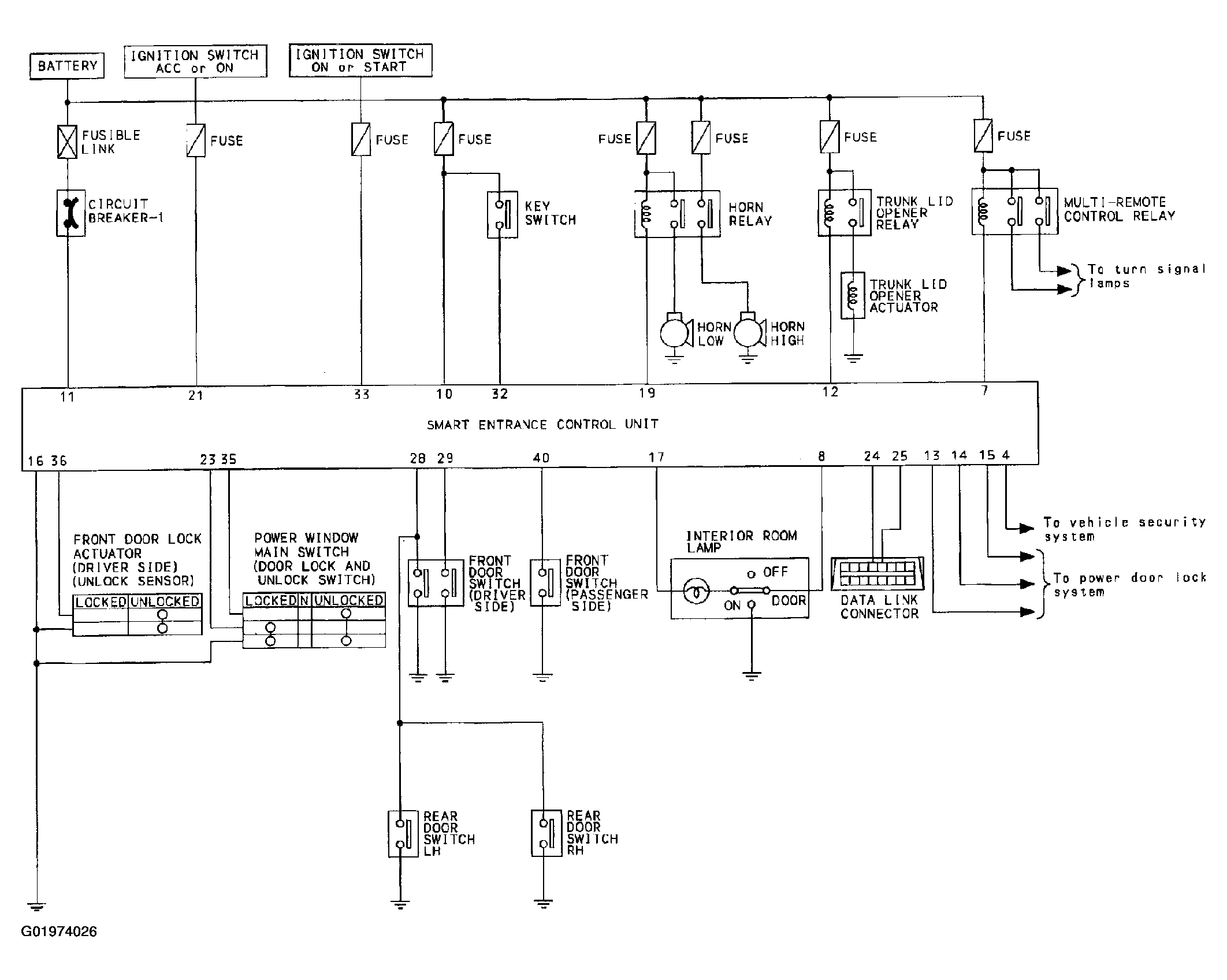

Fig 1: Schematic Diagram

G01974026

Courtesy of NISSAN MOTOR CO., U.S.A.
