Steering Column

CAUTION: After installing steering column, rotate steering wheel to verify smooth operation. Ensure number of turns from straight-ahead position to left and right locks are the same. Check to ensure steering wheel is centered when driving straight ahead.

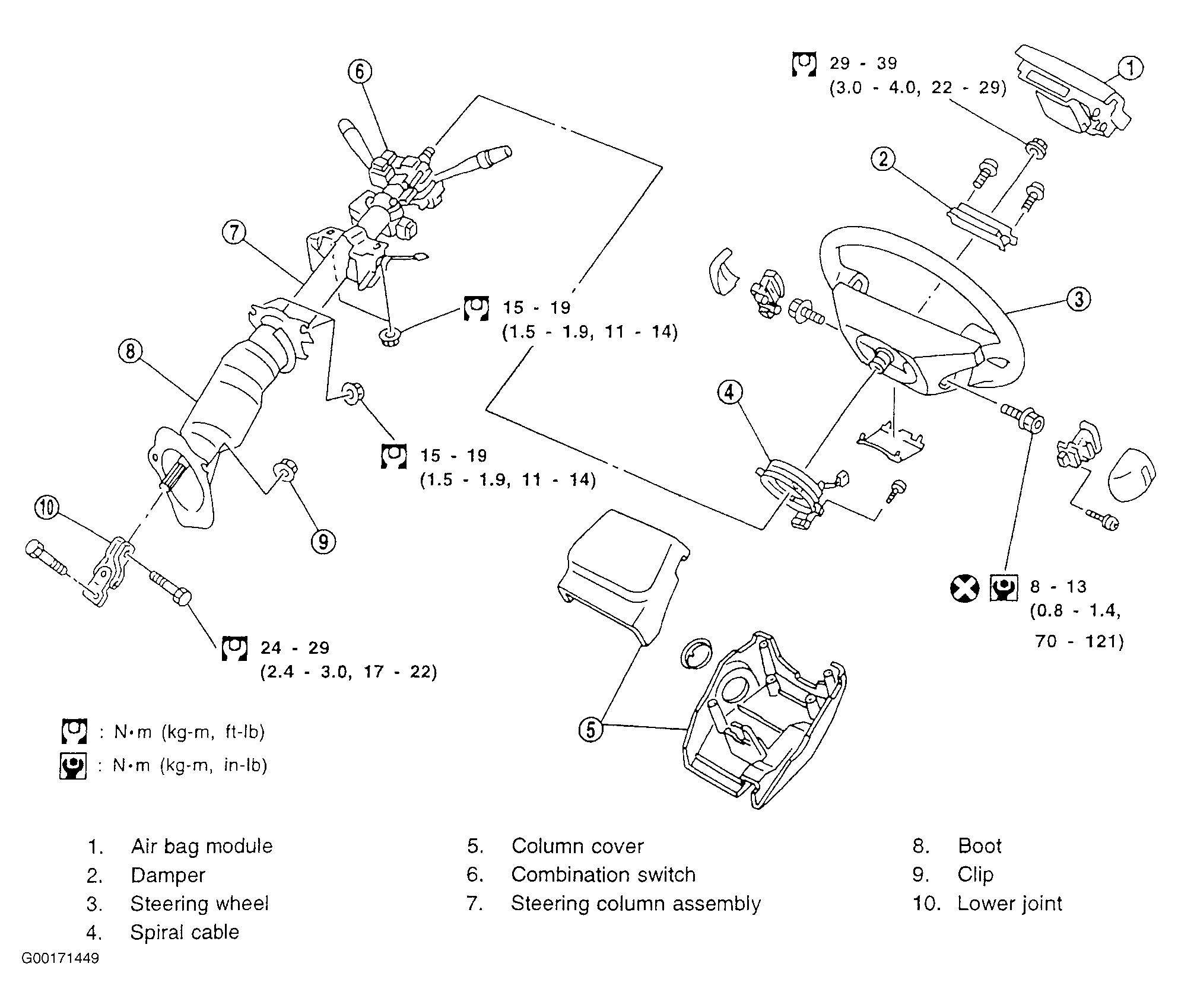

Fig 1: Exploded View Of Steering Column (G20)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Exploded View Of Steering Column (I30)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Exploded View Of Steering Column (I35)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Exploded View Of Steering Column (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
