Remote Controller Id Set Up With Consult-II

NOTE: If a remote controller is lost, the ID code of the lost remote controller must be erased to prevent unauthorized use. When the ID code of a lost remote controller is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.

Turn ignition switch "OFF".
Connect "CONSULT-II" to the data link connector.

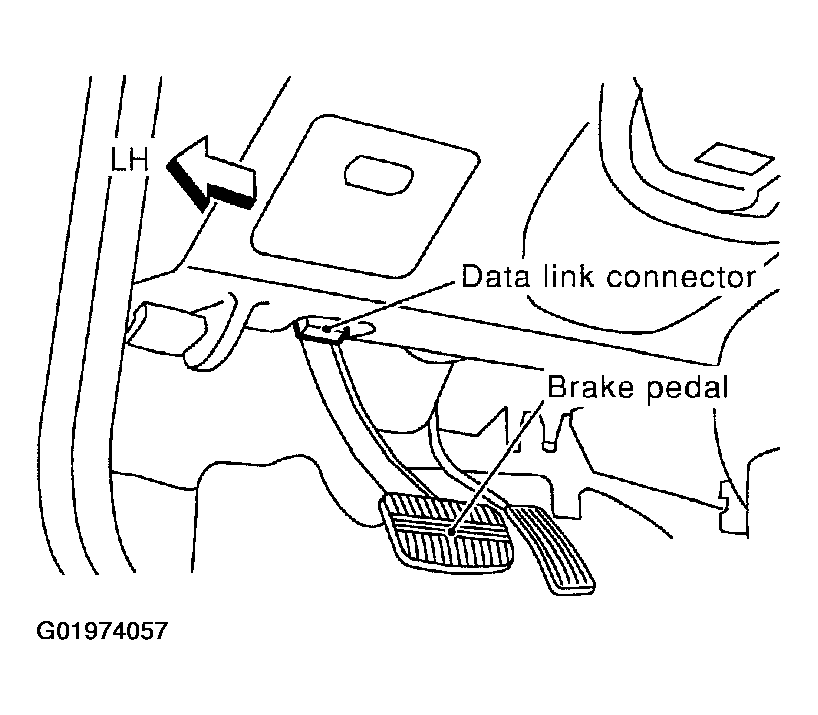

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START".

Fig 2: Identifying CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".

Fig 3: Identifying Select System Display Screen For Selection Of Smart Entrance
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

Fig 4: Identifying Select Test Item Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

Fig 5: Identifying Select Diag Mode Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown on the figure at left can be set up.

"REMO CONT ID CONFIR"
Use this mode to confirm if a remote controller ID code is registered or not.
"REMO CONT ID REGIST"
Use this mode to register a remote controller ID code.

NOTE: Register the ID code when remote controller or smart entrance control unit is replaced, or when additional remote controller is required.
"REMO CONT ID ERASUR"
Use this mode to erase a remote controller ID code.

Fig 6: Identifying Select Work Item Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
